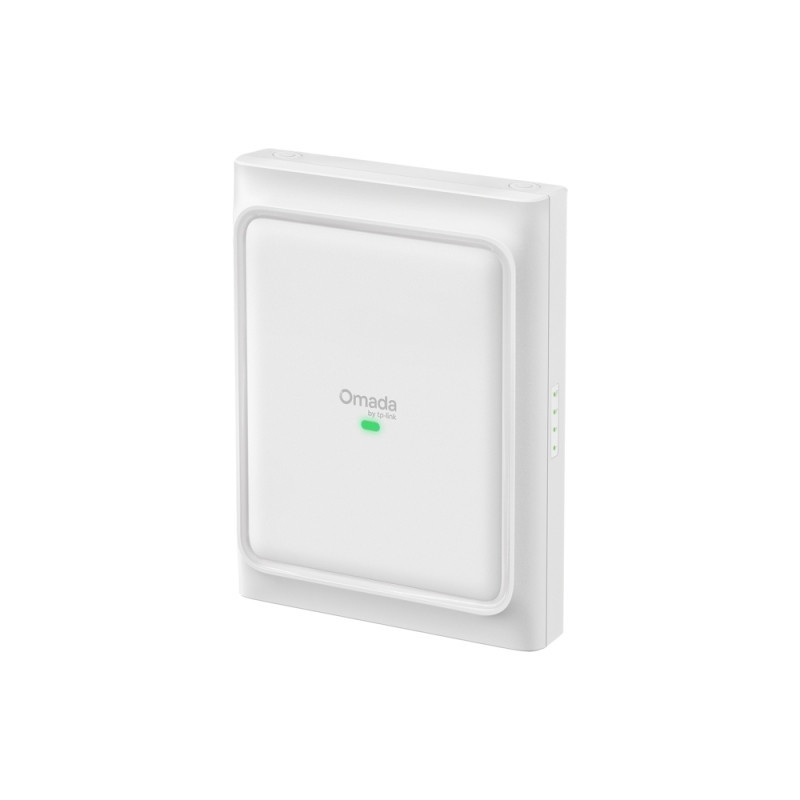

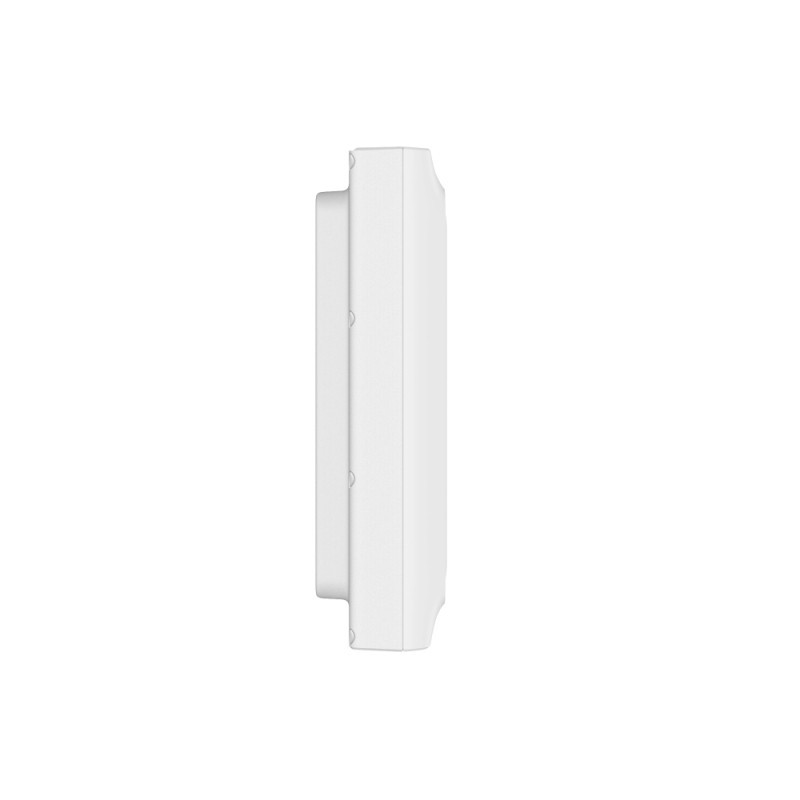

TP-LINK Omada Dual-Band Directional / Omnidirectional BE5000 4-Stream Outdoor Wi-Fi 7 Access Point
Product reference:
18-EAP725-Outdoor
TP-LINK Omada Dual-Band Directional/Omnidirectional BE5000 4-Stream Outdoor Wi-Fi 7 Access Point
TP-LINK Omada Dual-Band Directional / Omnidirectional BE5000 4-Stream Outdoor Wi-Fi 7 Access Point
Product reference:
18-EAP725-Outdoor
TP-LINK Omada Dual-Band Directional/Omnidirectional BE5000 4-Stream Outdoor Wi-Fi 7 Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Switchable Directional and Omnidirectional Antennas: Supports focused point coverage or wide-area outdoor coverage by switching antenna modes on software.
- Plug & Play Automatic Antenna Detection: Automatically detects when external antennas are installed and adjusts the coverage pattern accordingly.
- 4-Stream Outdoor Wi-Fi 7: Delivers high-speed outdoor connectivity up to 5 Gbps.
- True Dual-Band Coverage : 3,229 ft2 (300 m2) omnidirectional and 5,500 ft2 (510 m2) directional recommended coverage.
- 1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
- Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection.
- Quick and Easy Setup: Features wall/pole mounting withOmada SDN for one-click setup.
- Advanced Features: Centralized management, mesh, and seamless roaming.
| HARDWARE FEATURES | |
|---|---|

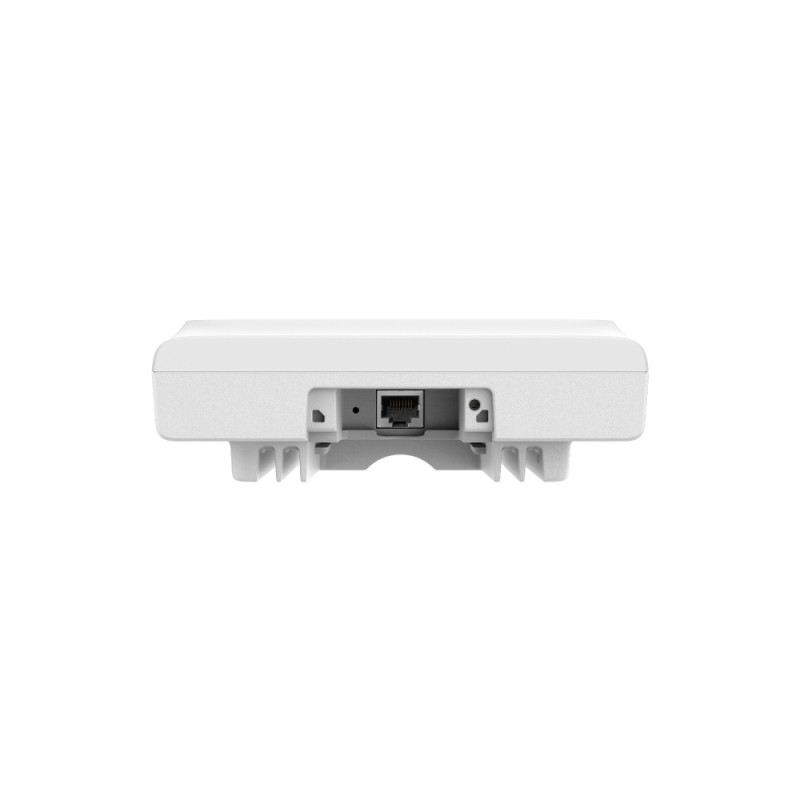

| Interface | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| Max. Power Consumption | 18.4W (for PoE+) |
| Dimensions ( W x D x H ) | 8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm) |
| Antenna | • 2.4 GHz: 2 × 4.5 dBi, external omnidirectional antennas 2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°) • 5 GHz: 2 × 5.3 dBi, external omnidirectional antennas 2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°) Note: The gains above are the single-antenna peak gains. |
| Bluetooth | BLE 5.2 |
| Weatherproof Enclosure | IP66 |

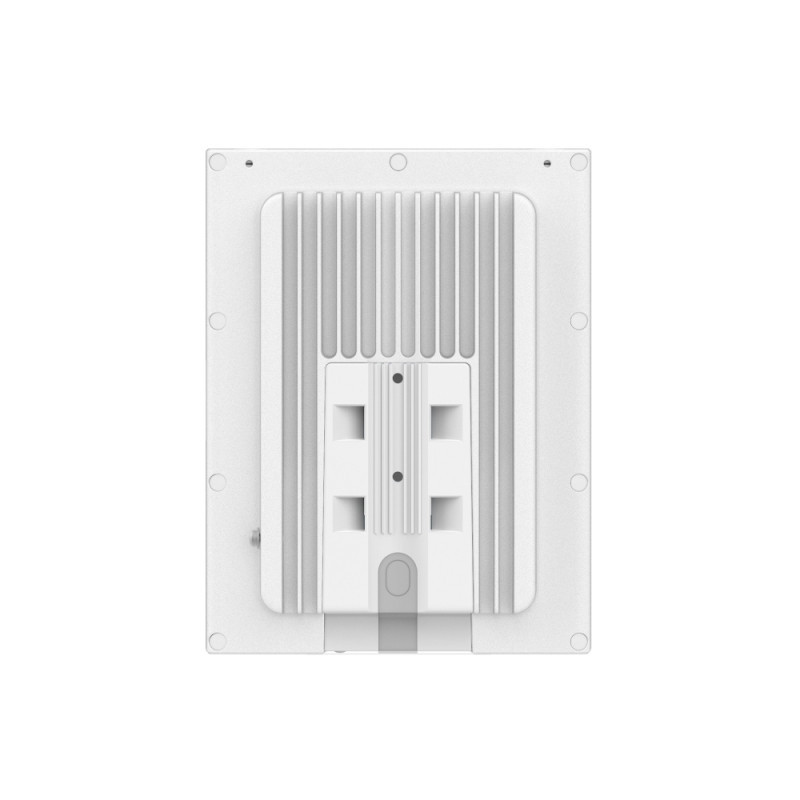

| Mounting | Pole/Wall Mounting (Kits included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/g/b/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Functions | • 4k-QAM • OFDMA • Multiple SSIDs: 16 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MLO • Omada Mesh§ • Seamless Roaming(802.11k/v/r) • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | • CE: (EIRP) 2.4 GHz: 20 dBm 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C • FCC: (Conducted Power) 2.4 GHz: 25 dBm 5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3 |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI |
| Package Content | • Access Point EAP725-Outdoor • Mounting Kit • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30 to 70 (-22 to 158 ) • Storage Temperature: -40 to 70 (-40 to 158 ) • Operating Humidity: 10 to 90% RH non-condensing • Storage Humidity: 5 to 90% RH non-condensing |
| Weight | Main Unit: 1.33 kg |
