TP-LINK AX3000 Indoor / Outdoor WiFi 6 Access Point
Product reference:
18-EAP650-Outdoor
TP-LINK AX3000 Indoor/Outdoor WiFi 6 Access Point
TP-LINK AX3000 Indoor / Outdoor WiFi 6 Access Point
Product reference:
18-EAP650-Outdoor
TP-LINK AX3000 Indoor/Outdoor WiFi 6 Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
- Superior WiFi 6 Speeds:Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.
- Higher Network Efficiency:Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
- 160 MHz Bandwidth Channel:Double the data at peak transmission times on a single stream with HE160.
- Long-Range Coverage:Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
- Omada Mesh Technology:Enables wireless connectivity between access points for extended range and flexible deployment.
- Stay Smooth with Seamless Roaming:Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
- PoE Powered:: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
- Centralized Cloud Management:Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
| HARDWARE FEATURES | |
|---|---|

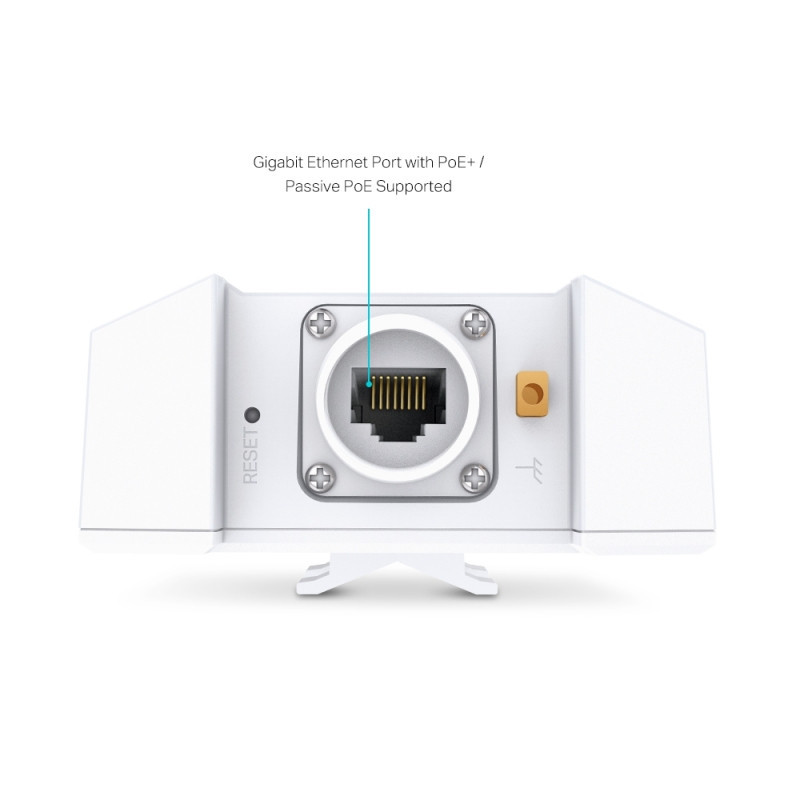

| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE • 48V Passive PoE (PoE Adapter Included) |
| Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions (W x D x H) | • 280.4×106.5×56.8 mm (without antenna mounting kit) |
| Antenna | • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Weatherproof Enclosure | IP67 |

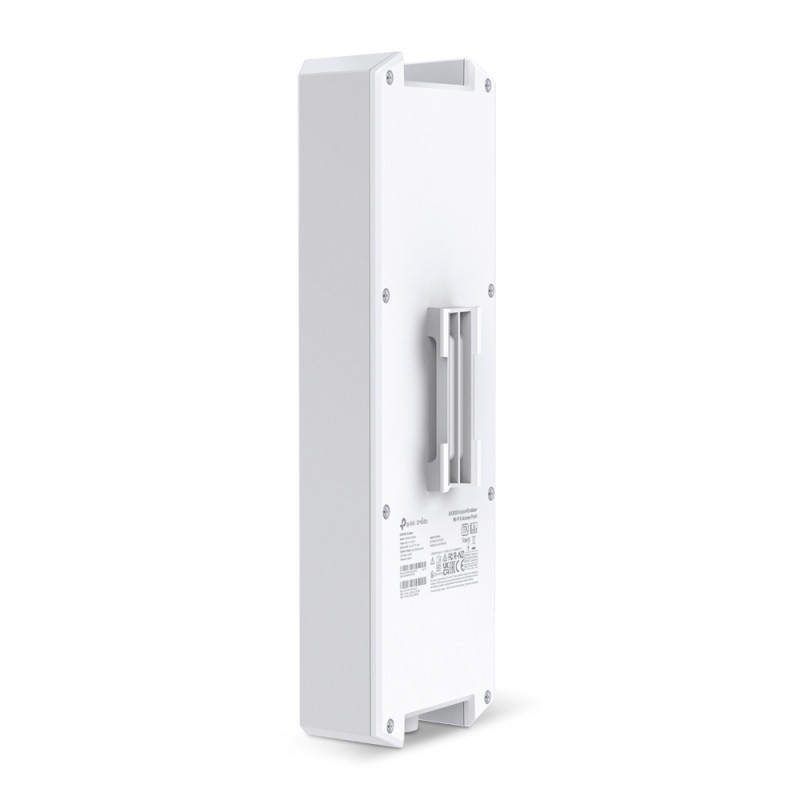

| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Client Capacity | 250+6 |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | • 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48.54 Mbps |
| Transmit Power | • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh3 • Seamless Roaming3 • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication3 • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Access Point EAP650-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30-70 (-22-158 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
