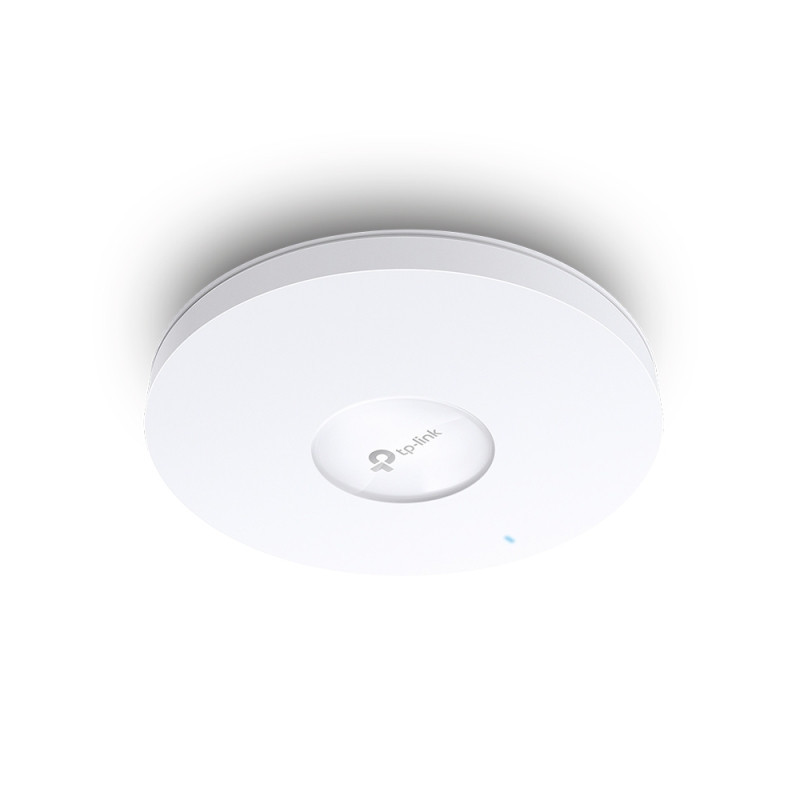

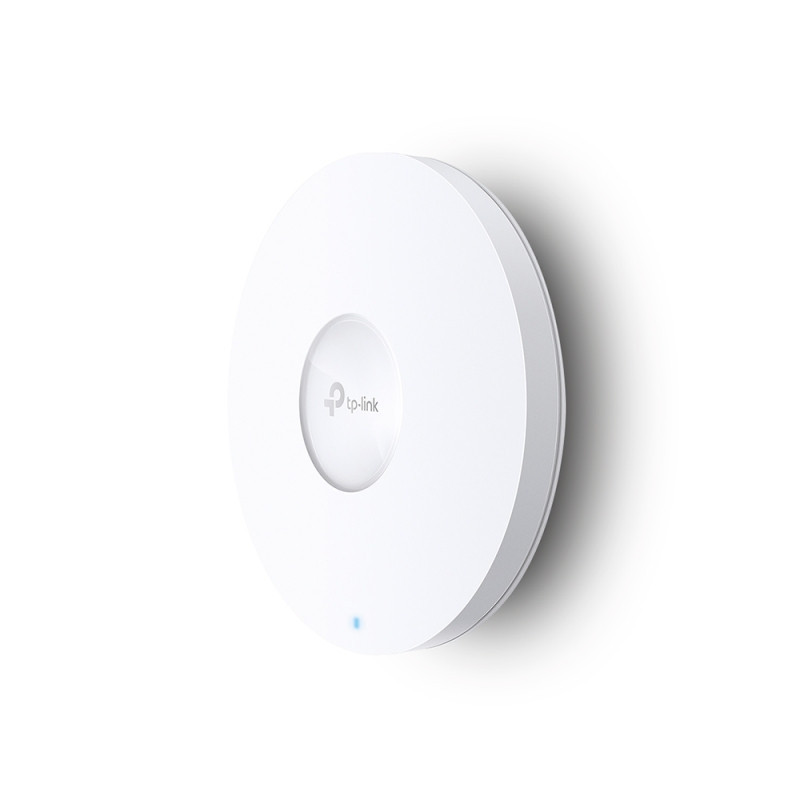

TP-LINK AX3000 Ceiling Mount WiFi 6 Ultra Range Access Point, w/o PSU
Product reference:
18-EAP653UR
TP-LINK AX3000 Ceiling Mount WiFi 6 Ultra Range Access Point, w/o PSU
TP-LINK AX3000 Ceiling Mount WiFi 6 Ultra Range Access Point, w/o PSU
Product reference:
18-EAP653UR
TP-LINK AX3000 Ceiling Mount WiFi 6 Ultra Range Access Point, w/o PSU
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
- Advanced Features: Omada Mesh, Seamless Roaming, etc.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralized management

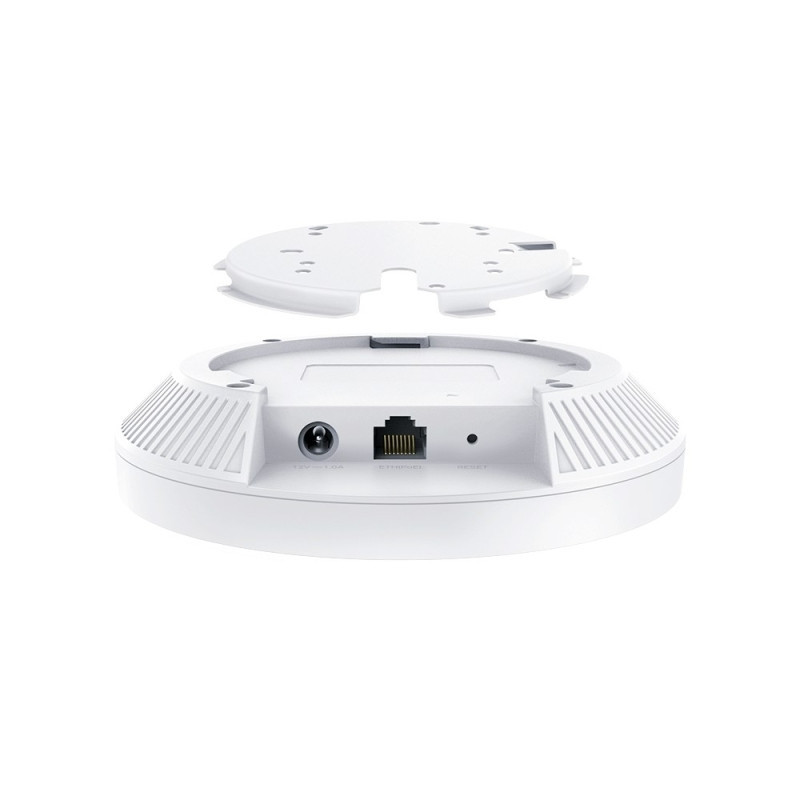

| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | • 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE |
| Power Consumption | • EU: 14.2 W • US: 15.5 W |
| Dimensions (W x D x H) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi |
| Mounting | • Ceiling/Wall Mounting (Kits included) • Junction Box Mounting |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 185 ㎡ (2000 ft²) |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps† • 2.4 GHz: Up to 574 Mbps† |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G: 2*2 MU-MIMO DL/UL) • HE160 (160 MHz) Bandwidth)‡ • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP653 UR • Ceiling/Wall Mounting Kit • Installation Guide Note: DC adapter is not included in the package, and is sold separately. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment | • Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
