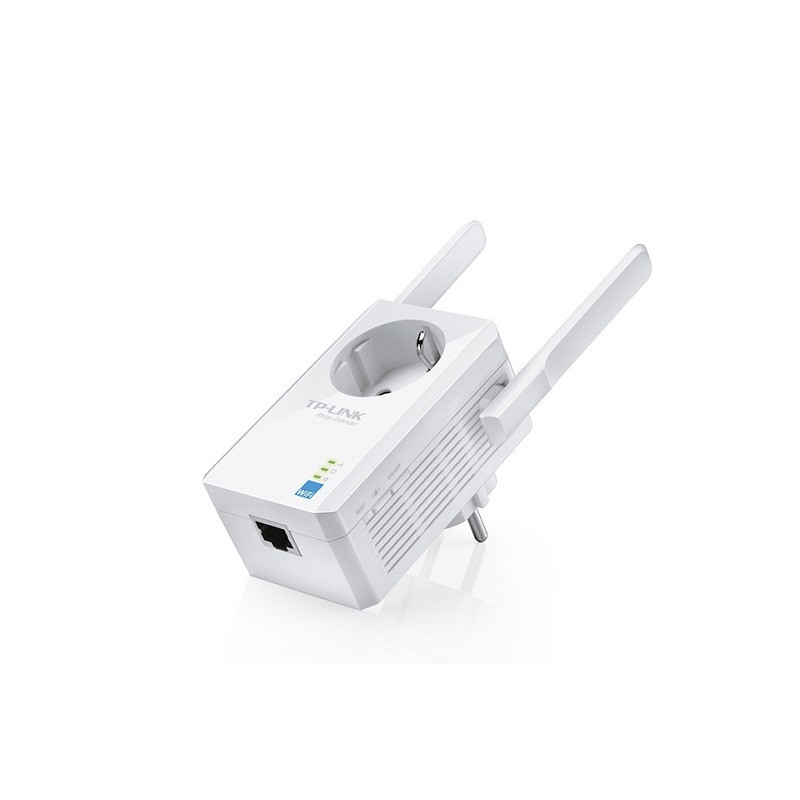

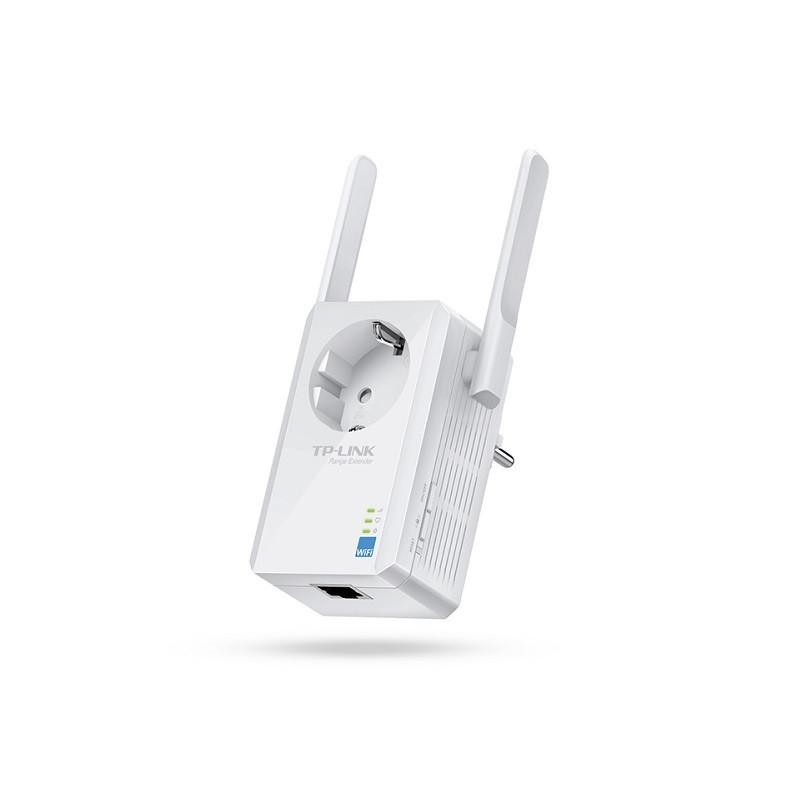

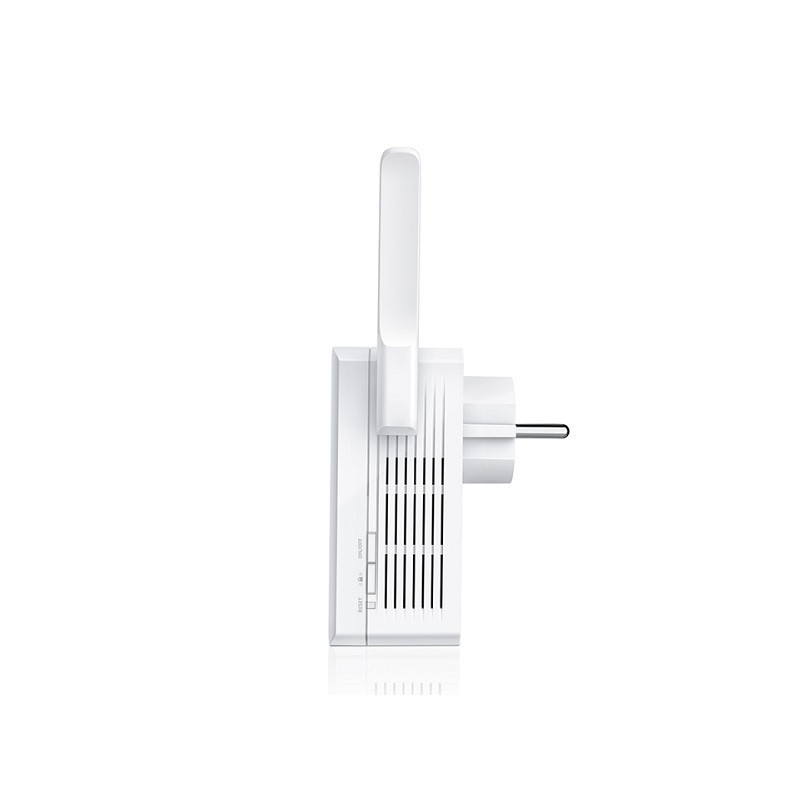

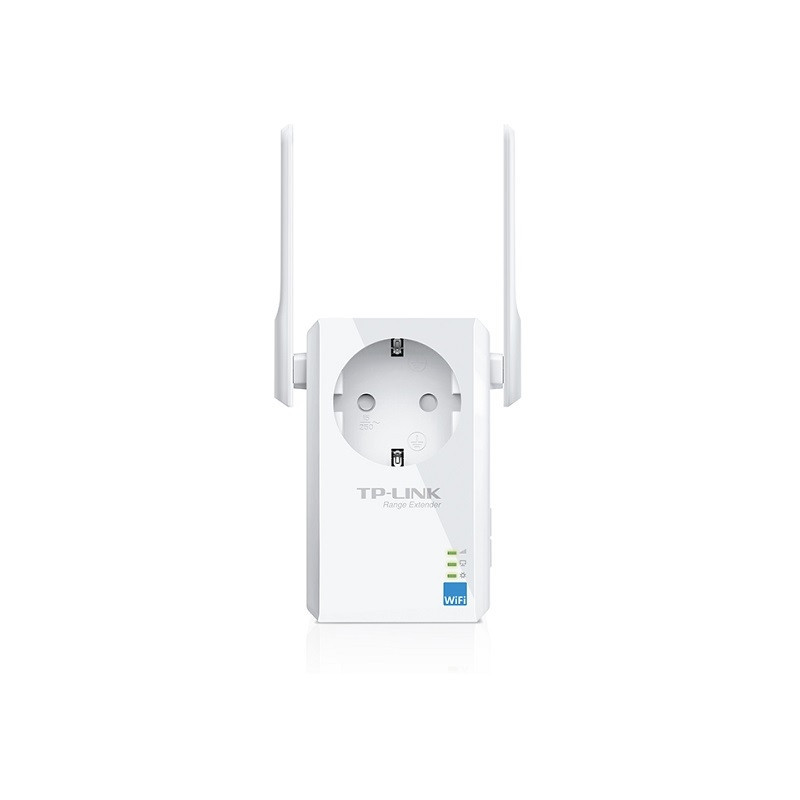

TP-LINK 300Mbps Wi-Fi Range Extender with AC Passthrough

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly


• Miniature size and wall-mounted design make it easy to deploy and move flexibly


• Extra power socket making sure that no power outlet is going to waste


• 2 fixed external antennas provide excellent Wi-Fi coverage and reliability


• Easily expand wireless coverage at a push of the Range Extender button

HARDWARE FEATURES

Plug Type: EU Standards and Protocols: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Interface: 1 * 10/100Mbps Ethernet Port (RJ45) Buttons: RE (Range Extender) Button, Reset Button Power Consumption: About 3W Antennas: 2 * external Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

WIRELESS FEATURES

Frequency: 2.4~2.4835GHz Signal Rate: 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) Reception Sensitivity: 270M: -69dBm@10% PER 130M: -69dBm@10% PER 108M: -69dBm@10% PER 54M: -69dBm@10% PER 11M: -86Bm@8% PER 6M: -89dBm@10% PER 1M: -91dBm@8% PER Transmit Power: < 20 dBm (EIRP) Wireless Modes: Range Extender Wireless Functions: WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function Wireless Security: 64/128/152-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification: CE, RoHS Package Contents: 300Mbps Wi-Fi Range Extender with AC Passthrough TL-WA860RE RJ-45 Ethernet Cable Resource CD Quick Installation Guide System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
