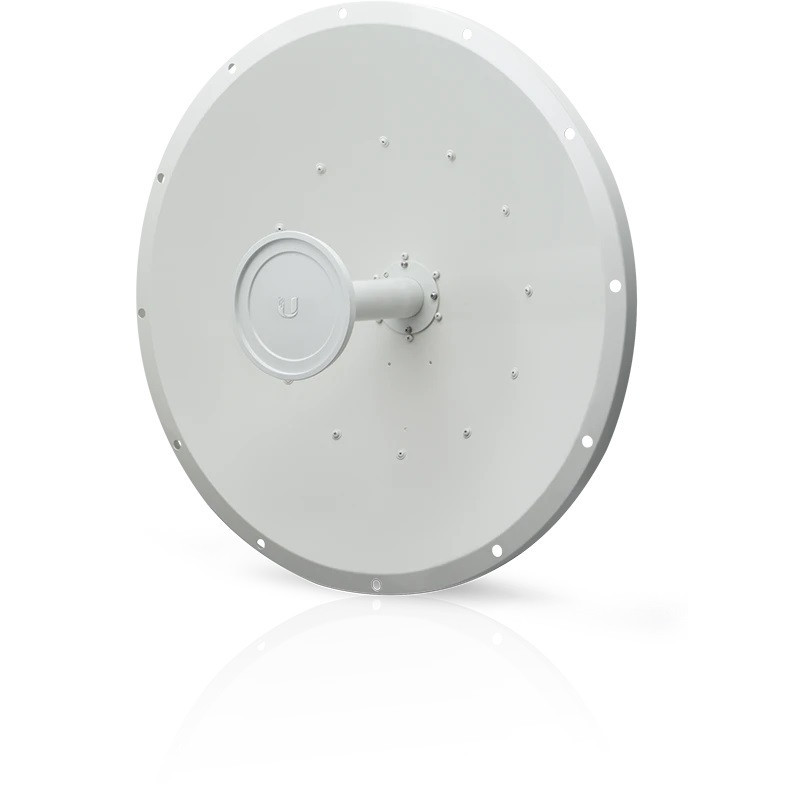

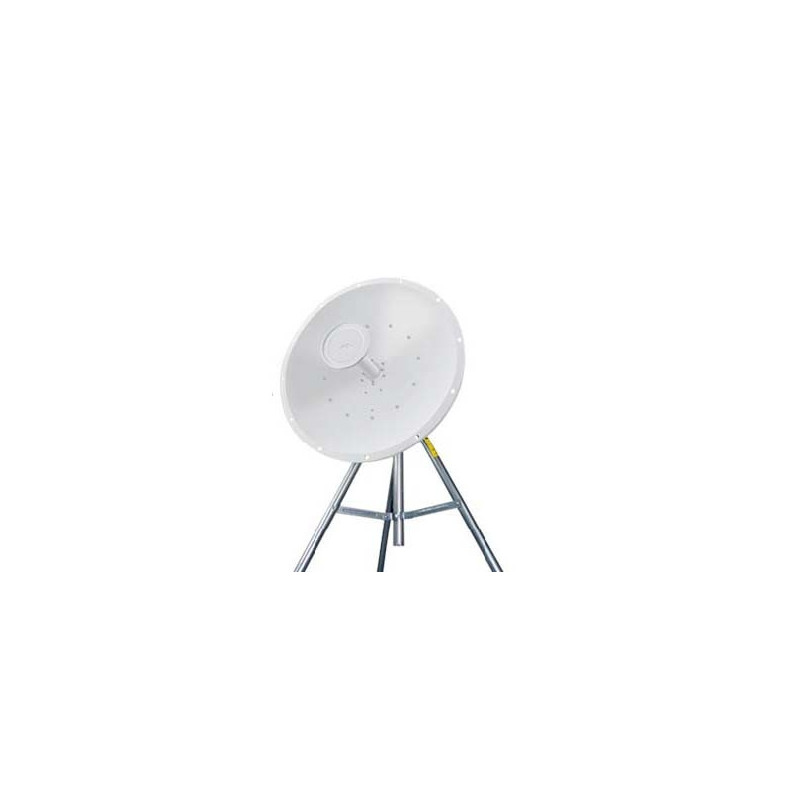

RocketDish 30dbi Antenna
Product reference:
18-RocketDish 5G-30
RocketDish 30dbi Antenna
RocketDish 30dbi Antenna
Product reference:
18-RocketDish 5G-30
RocketDish 30dbi Antenna
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to work seamlessly together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
| Dimensions | 650 x 650 x 304 mm (25.6 x 25.6 x 11.97') |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dBi |
| HPOL Beamwidth | 5° (3dB) |
| VPOL Beamwidth | 5° (3dB) |
| F/B Ratio | 34 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual Linear |
| Cross-pole Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
