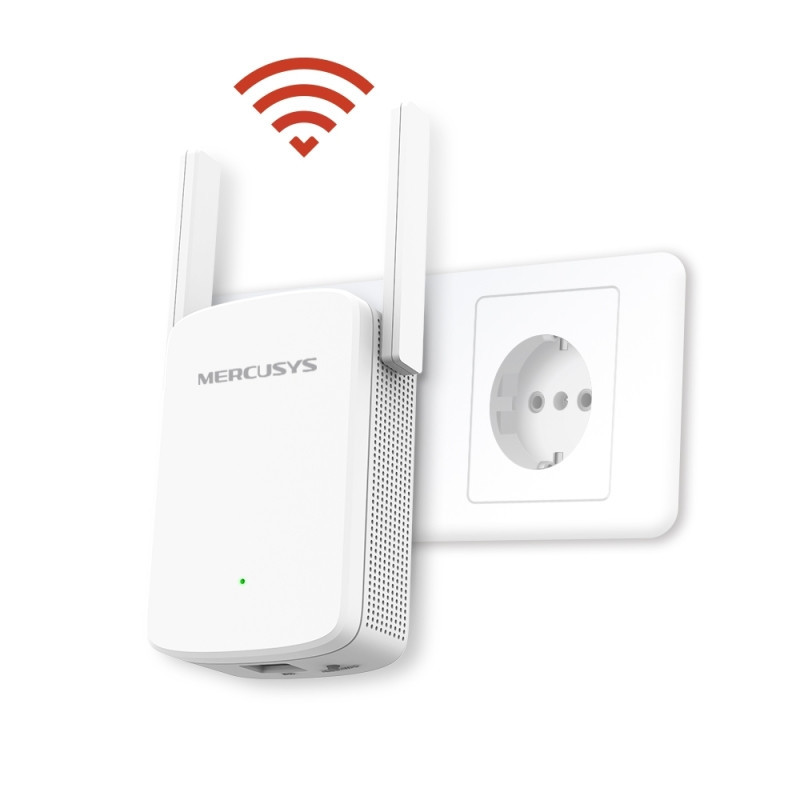

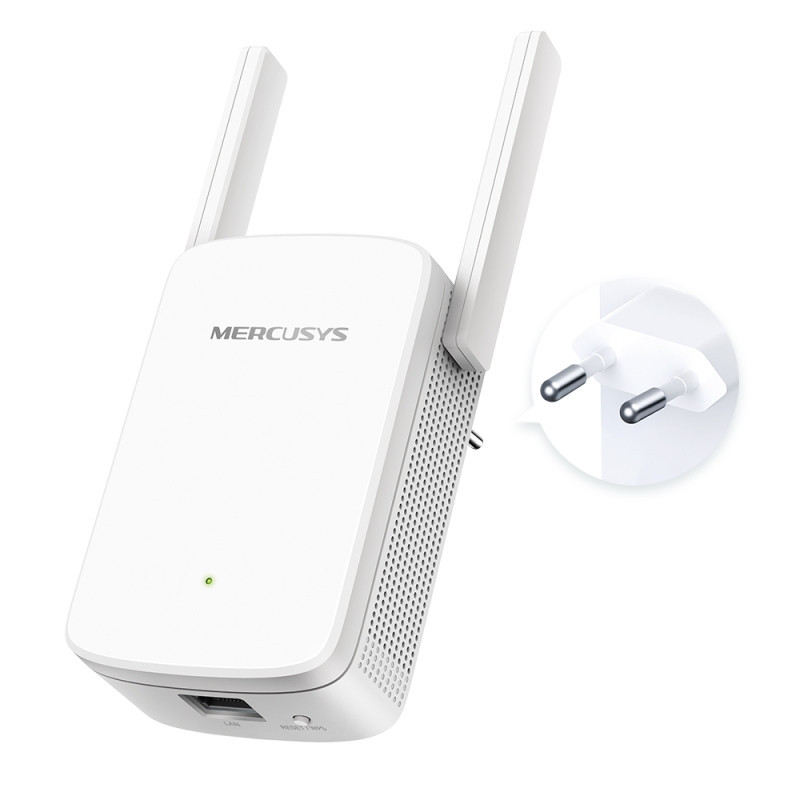

MERCUSYS AC1200 Wi-Fi Range Extender

• Eliminate WiFi Dead Zones— Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly


• AC1200 Dual Band WiFi— Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps


• Easy One-Touch Setup— Simply press the WPS button to expand your WiFi coverage in seconds


• Signal Indicator— Multicolor LED helps you find the right location for your range extender for the best WiFi extension


• Fast 10/100 Mbps Port— Provides speedy wired connections for PCs, IPTVs, and game consoles


• Works with Any Router or Wireless Access Point

Wireless

Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4 - 2.5 GHz, 5 GHz WiFi Speeds Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz) Reception Sensitivity 5 GHz: 11ac HT80 MCS9 < -63 dBm 2.4 GHz: 11n HT40 MCS7 < -70 dBm Transmission Power < 20 dBm Wireless Security WPA-PSK/WPA2-PSK

Hardware

Dimensions 112 × 84.7 × 39 mm Interfaces 1× 10/100Mbps RJ45 Port Button RESET/WPS Button Antenna Type 2× External Antennas Power Consumption 9.2 W

Others

Certifications CE, RoHS Package Contents • Wi-Fi Range Extender (ME30) • Quick Installation Guide Environment • Operating Temperature: 0°C~40°C (32°F~104°F) • Operating Humidity: 10%~90% Non-Condensing
