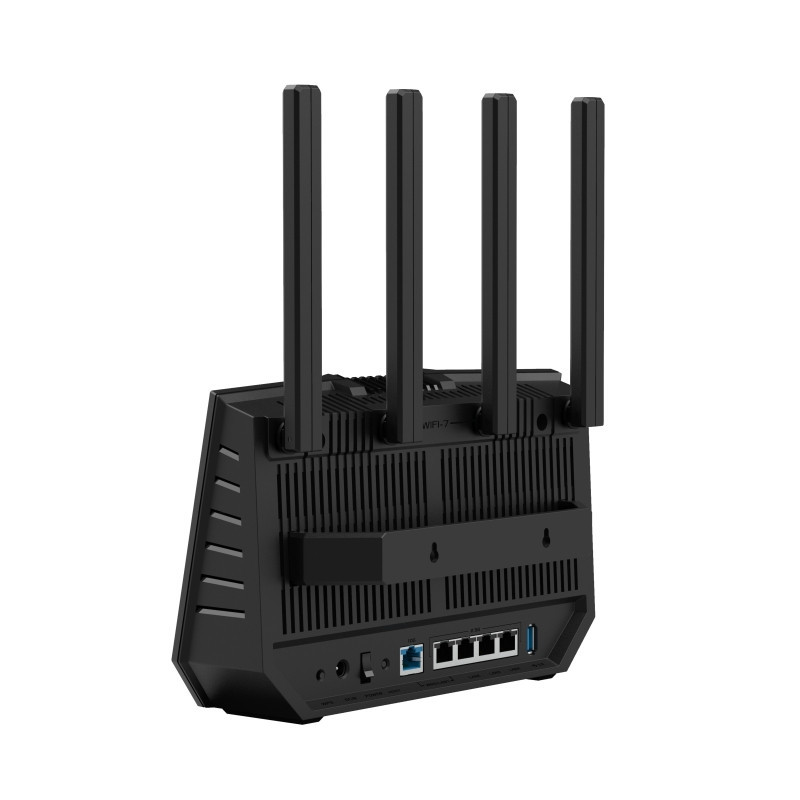

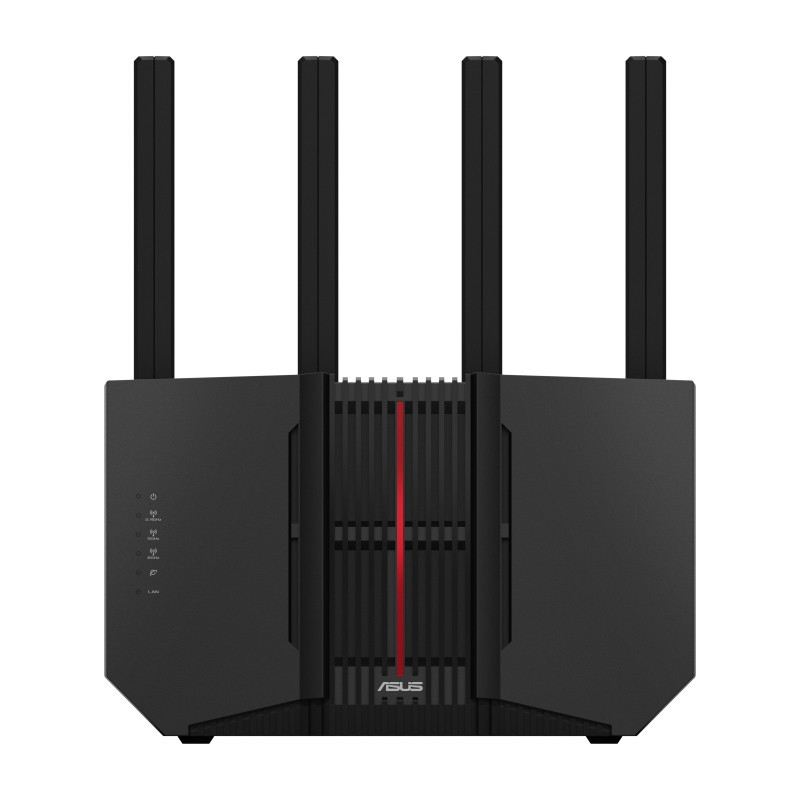

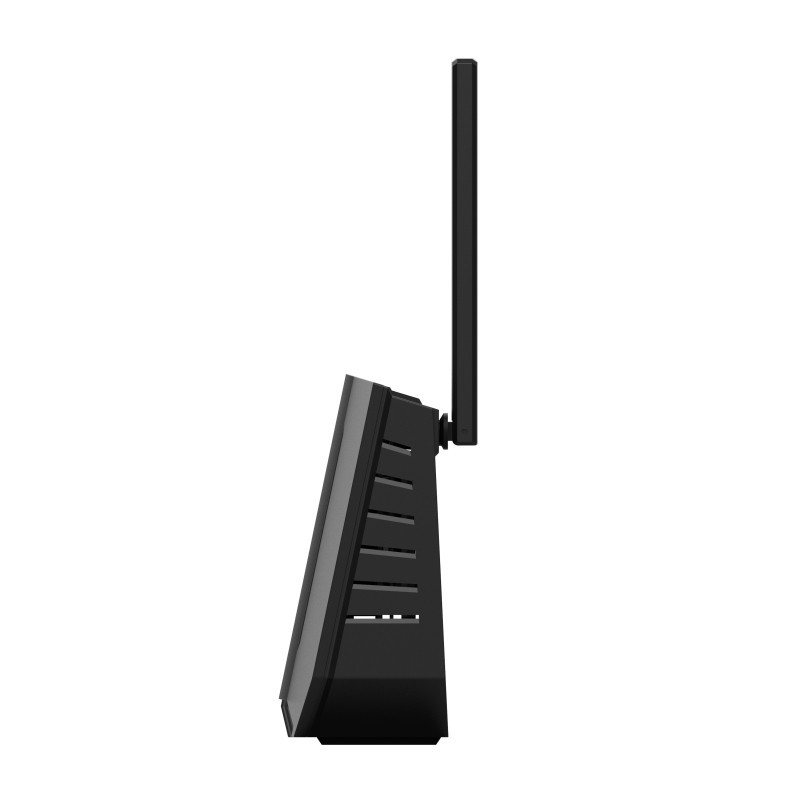

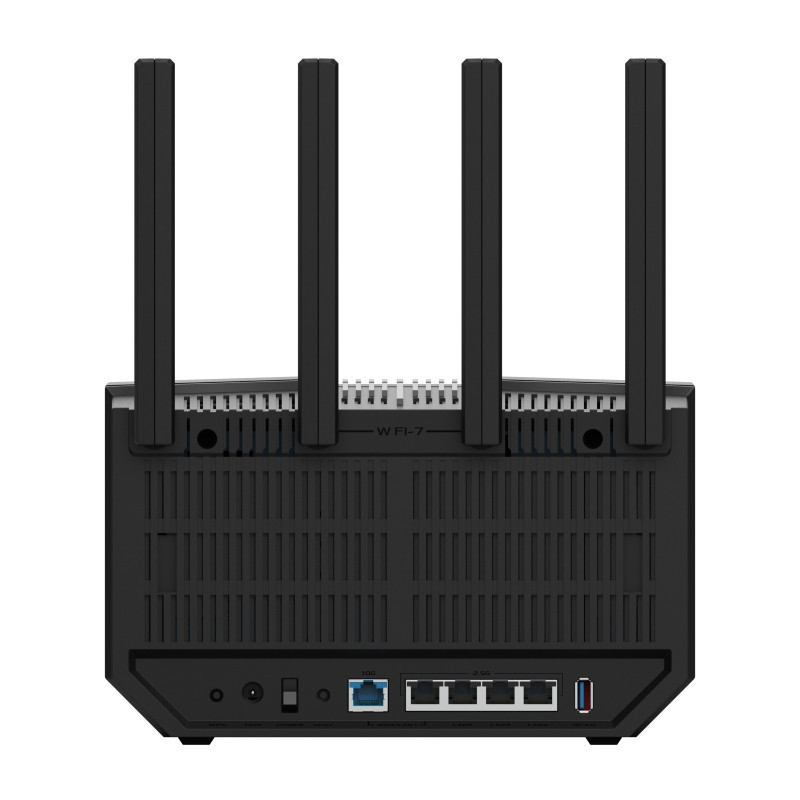

ASUS BE9700 Dual Band WiFi 7 (802.11be) Gaming Router

Next-Level Smart Home WiFi 7Elevate your smart home with blazing-fast tri-band WiFi 7 speeds of up to 9700 Mbps, boosted range with ASUS RF and AI-boosted Smart AiMesh technology and up to 20G of wired capacity. The ASUS RT-BE92U unleashes superior 6 GHz WiFi and future-proof 10G networking. With the new ASUS Network Security suite and advanced features such as the IoT Network, the RT-BE92U safeguards your network end-to-end, 24/7.

Model:ASUS RT-BE92U

Network Standard:IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) WiFi 7 (802.11be) IPv4 IPv6

Product Segment:BE9700 ultimate BE performance (1032+2882+5764 Mbps)

WiFi Data Rate:
WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps WiFi 7 (802.11be) (6GHz): up to 5764 Mbps

Antenna:External antenna x 4

Transmit / Receive:
2.4GHz 3x3 5GHz 2x2 6GHz 2x2

Processor:2.0GHz quad-core processor

Memory:256 MB Flash and 1 GB DDR4 RAM

Boosts Speed:
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth

Operating Frequency:2.4 GHz 5GHz 6 GHz

Operating Mode:
Wireless Router Mode AiMesh Node Mode Access Point Mode Media Bridge Mode Repeater Mode

I/O Ports:1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 3 x 2.5 Gbps for LAN USB 3.2 Gen1 x1

Buttons:WPS Button, Reset Button, Power Switch

LED Indicators:Power x1 WAN x1 LAN x1 2.4GHz x1 5GHz x1 6GHz x1

Power Supply:
AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 3 A current

Product Dimensions:247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch

AiMesh:AiMesh • Primary AiMesh Router • AiMesh Node

Parental Control:
'Allow you to block access to unwanted websites and apps.' Web Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule: • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Filter Rule : 64

Guest Network:
'You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create a comprehensive network environment with customized settings.' • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3 Guest Network Pro Encryption: Open system, WPA/WPA2/WPA3-Personal

Security:
AiProtection VPN WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System OWE WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall: • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64

AiProtection:

AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking

VPNs:Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark

Traffic Control:Adaptive QoS: • Bandwidth Monitor • Bandwidth Limiter (Maximum Bandwidth Limiter Rule : 32) Traditional QoS Traffic Monitor: • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer: • Traffic Analysis Period : Daily, Weekly, Monthly • Website History

WAN:Internet Connection Type : • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN 3G / 4G LTE dongle 4G / 5G Auto Mobile Tethering Port forwarding (Maximum Port Forwarding Rule : 64) Port triggering (Maximum Port Triggering Rule : 32) DMZ DDNS NAT Passthrough : • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through • RTSP Pass-Through • H.323 Pass-Through • SIP Pass-Through • PPPoE Relay

LAN:DHCP Server IGMP Snooping IPTV Manually Assign IP Address (Maximum Manually Assign IP Address Rule : 128) Wake on LAN (WOL)

Wireless:MU-MIMO UTF-8 SSID WiFi MAC Address Filter (Maximum MAC Filters : 64) Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming

USB application:4G / 5G Auto Mobile Tethering File System : • HFS+ • NTFS • vFAT • ext2 • ext3 • ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges

User Interface:WEB: ASUSWRT APP: ASUS Router APP

Administration:Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update

Package Contents:
RT-BE92U WiFi 7 Tri-band Router wall mount kit RJ-45 cable Power Adapter Quick Start Guide
