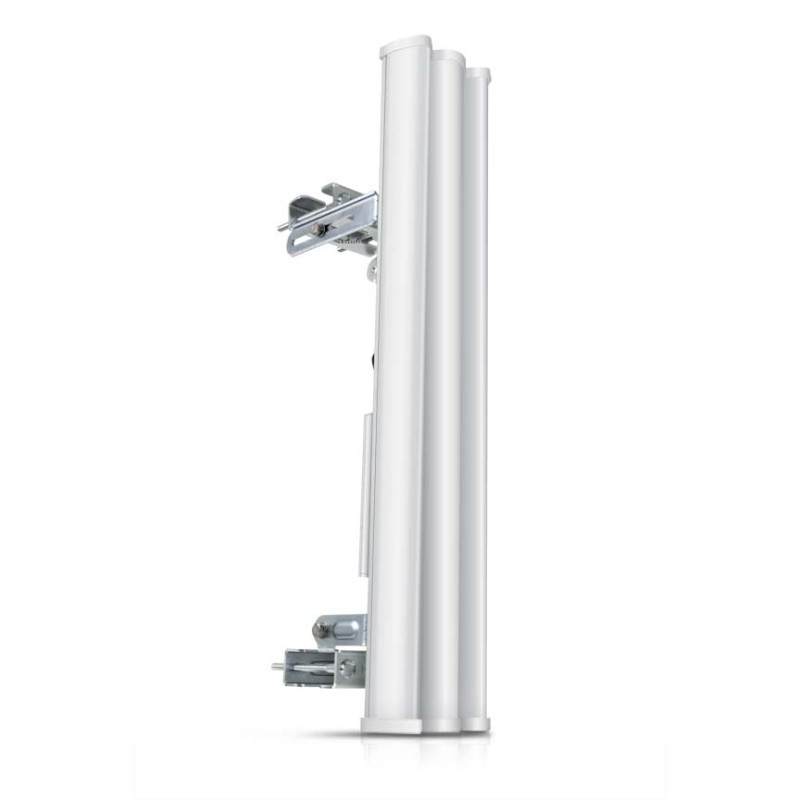

AirMax 19dBi 5GHz Sector Antenna
Product reference:
18-AM-5G-19
AirMax 19dBi 5GHz Sector Antenna
AirMax 19dBi 5GHz Sector Antenna
Product reference:
18-AM-5G-19
AirMax 19dBi 5GHz Sector Antenna
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included. Rocket M and AirMax BaseStation/Rocket Antennas have been designed to work seamlessly together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
AM-5G19-120 | |
Dimensions | 700 x 135 x 73 mm (27.56 x 5.32 x 2.87') |
|---|---|
Weight (Mount Included) | 5.9 kg (13 lbs) |
Frequency | 5.15 - 5.85 GHz |
Gain | 18.6 - 19.1 dBi |
HPOL Beamwidth | 123° (6dB) |
VPOL Beamwidth | 123° (6dB) |
Elevation Beamwidth | 4° |
Electrical Downtilt | 2° |
Max. VSWR | 1.5:1 |
Wind Survivability | 200 km/h (125mph) |
Wind Loading | 137.9 N @ 200 km/h (31 lbf @ 125 mph) |
Polarization | Dual Linear |
Cross-Pol Isolation | 28 dB Min. |
ETSI Specification | EN 302 326 DN2 |

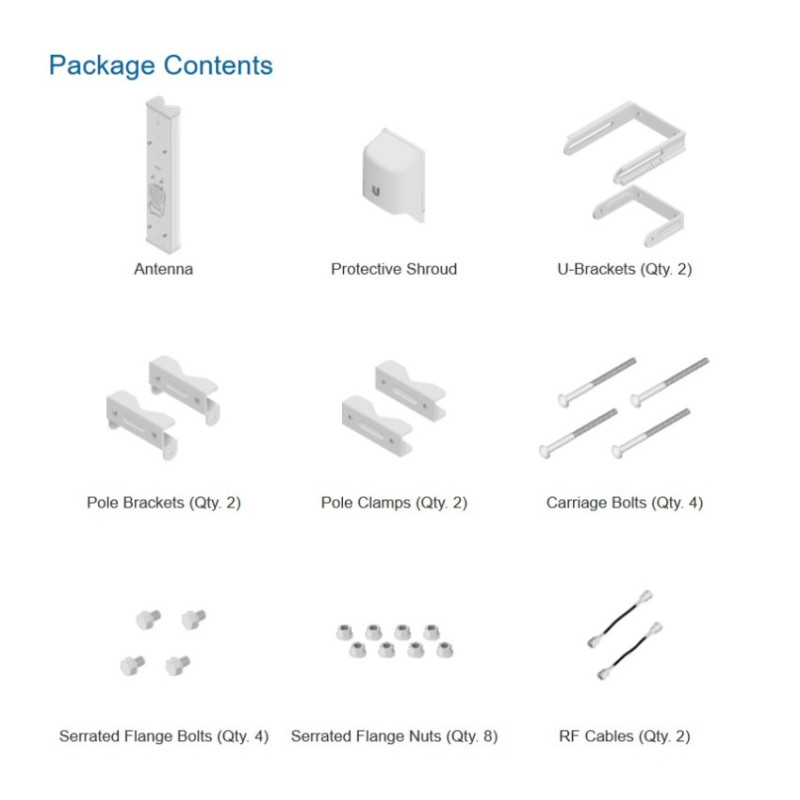

Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
