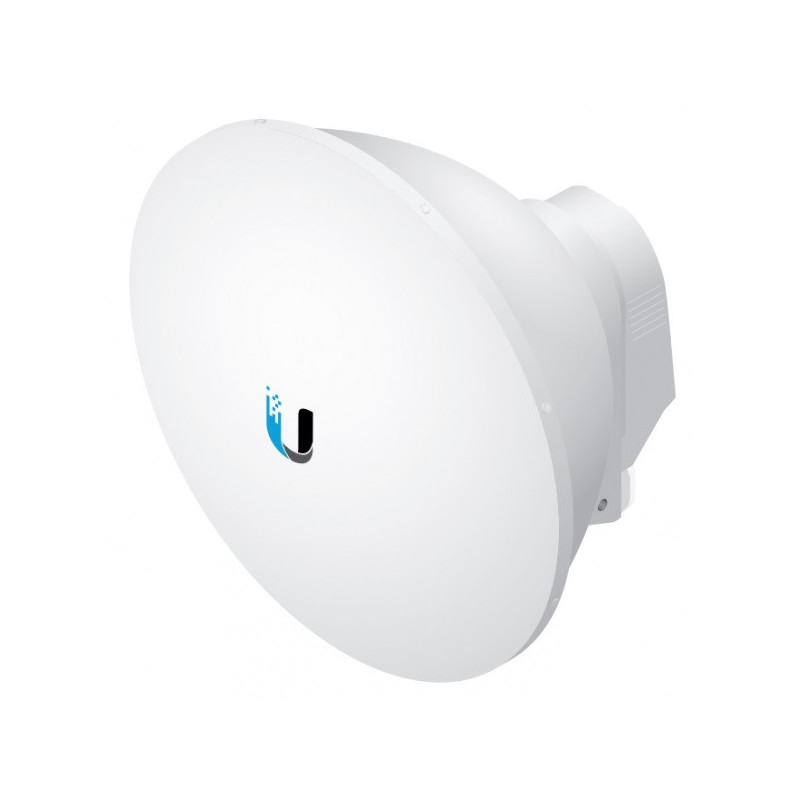

AirFiber X Antenna 23dbi

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna uses the 5 GHz frequency band and is available as the following models: • AF-5G23-S45 (gain: 23 dBi) • AF-5G30-S45 (gain: 30 dBi) • AF-5G34-S45 (gain: 34 dBi) Each model is compatible with the airFiber AF-5X, a 5 GHz Carrier Backhaul Radio. Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use. airFiber X antennas and airFiber X radios have been designed to work seamlessly together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application. Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23 dBi of gain and features the following advantages: • Low sidelobes reduce interference from other transmitters in the area. • High isolation enhances performance for co-location in tower-mounted installations. • The low-profile design with integrated radome reduces wind-loading. Innovative Mechanical Design • Secure Pole-Mounting Maintains the position of the dish during harsh outdoor conditions. • Low-Profile Form Factor of the AF-5G23-S45 Reduces wind-loading. Weatherproof Design • Protective Shroud Protects the cables and connectors from the elements. • Integrated Radome of the AF-5G23-S45 Shields the radio from the environment. The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks. Model: AF-5G23-S45 Dimensions: 378 x 378 x 290 mm (14.88 x 14.88 x 11.42') Weight: 3.4 kg (7.5 lb) (Mount Included) Frequency: 5.1 - 5.9 GHz Gain: 23 dBi Max. VSWR: 1.5:1 Wind Survivability: 200 km/h (125 mph) Wind Loading: 190 N @ 200 km/h (43 lbf @ 125 mph) Polarization: Dual Linear F/B Ratio: 33 dB ETSI Specification: EN 302 326 DN2 Mounting: Universal Pole Mount for Ø 38 - 64 mm (Ø 1.5 - 2.5') Poles
