Access Point, TP-LINK, Omada, 5378 Mbps, IEEE 802.11a / b / g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, 1xRJ45, EAP67
Product reference:
2-4897098687154
Access Point, TP-LINK, Omada, 5378 Mbps, IEEE 802.11a / b / g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, 1xRJ45, EAP67
Product reference:
2-4897098687154
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
High-End Business WiFi 6 to Power Up Your Business

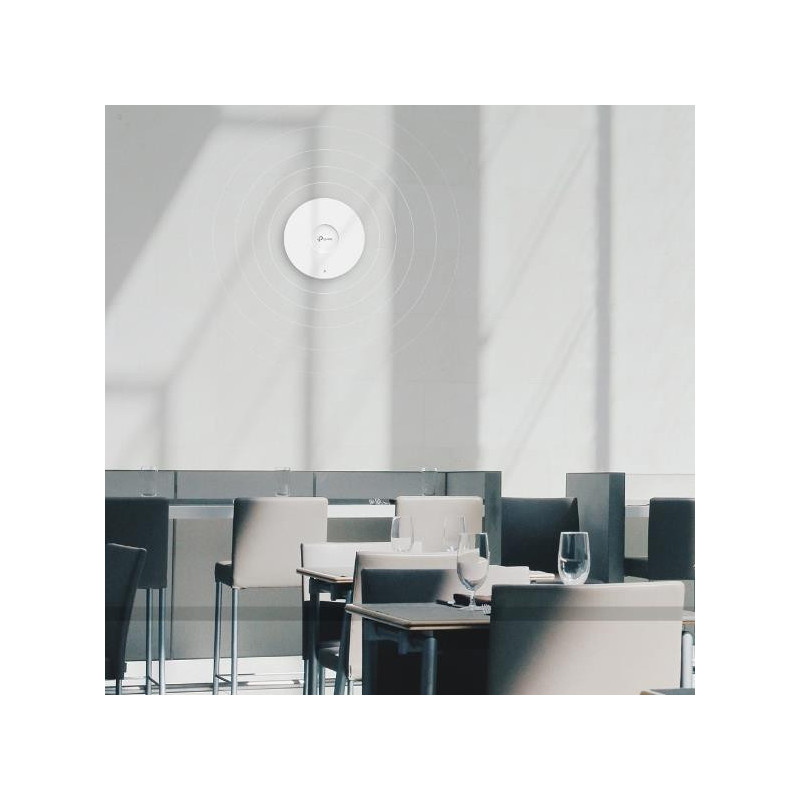

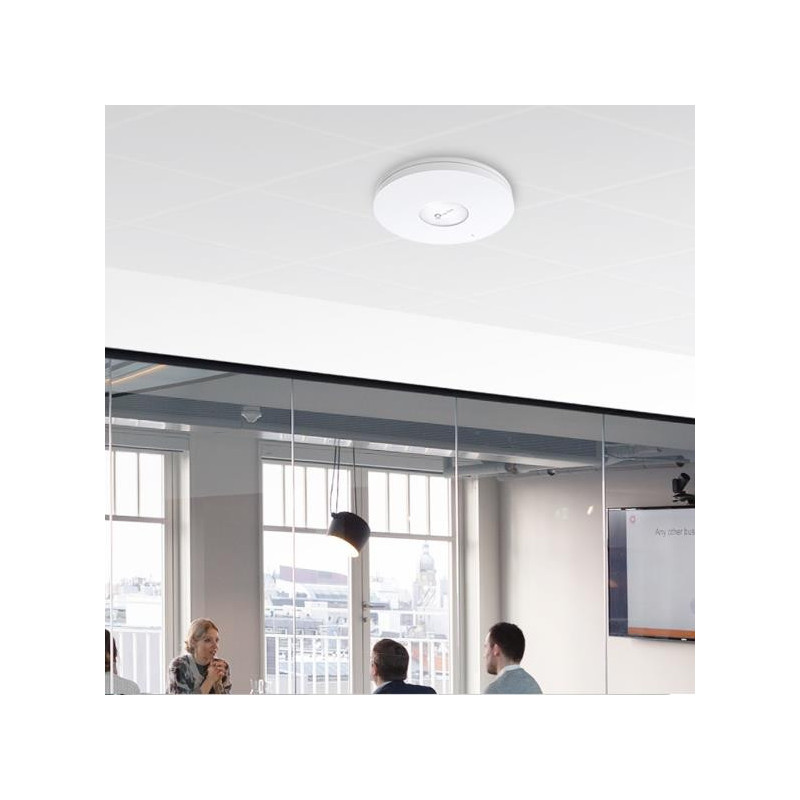

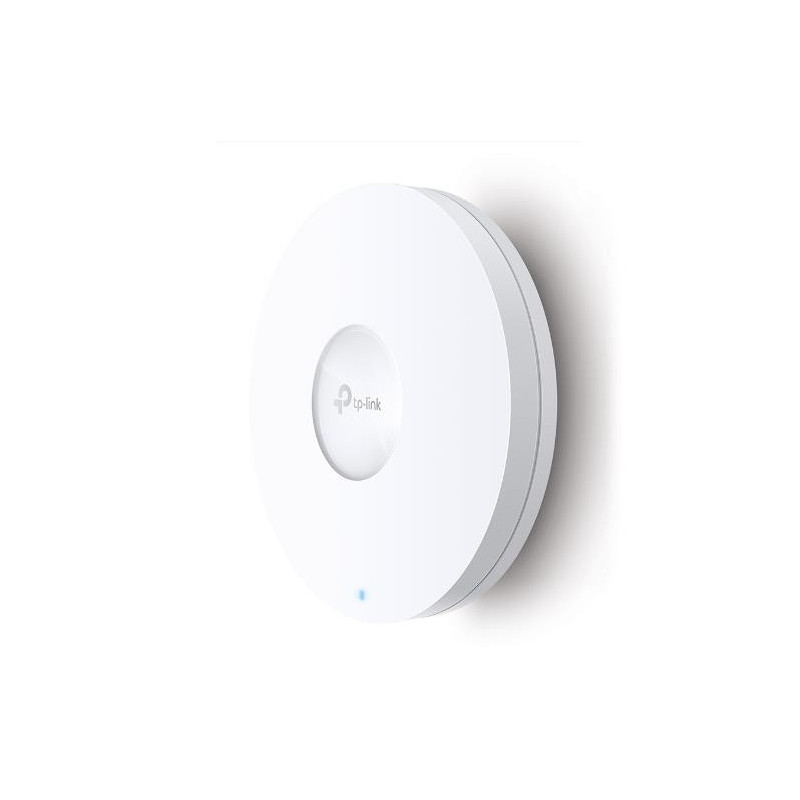

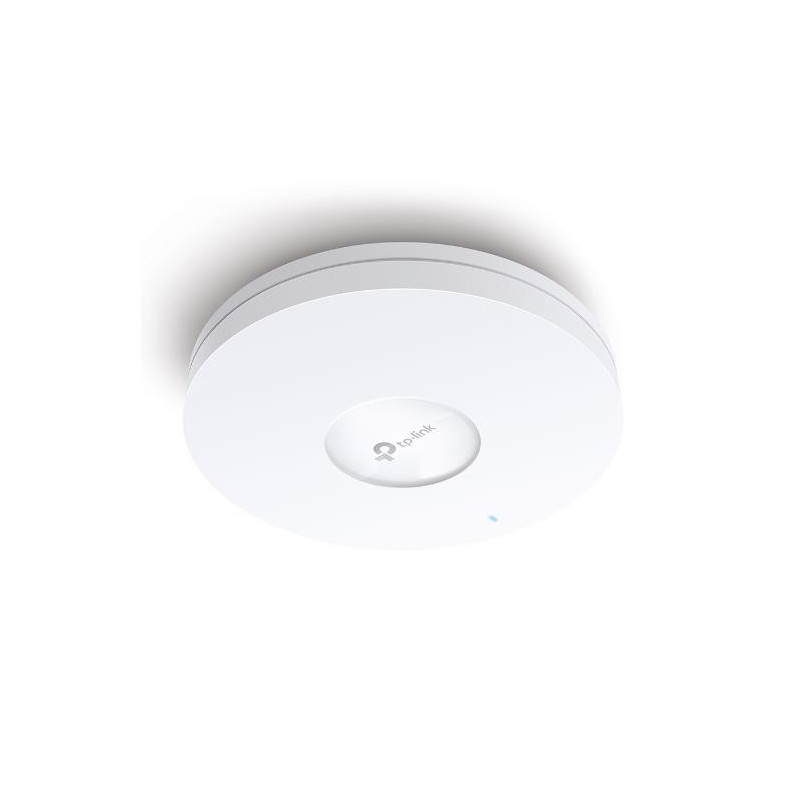

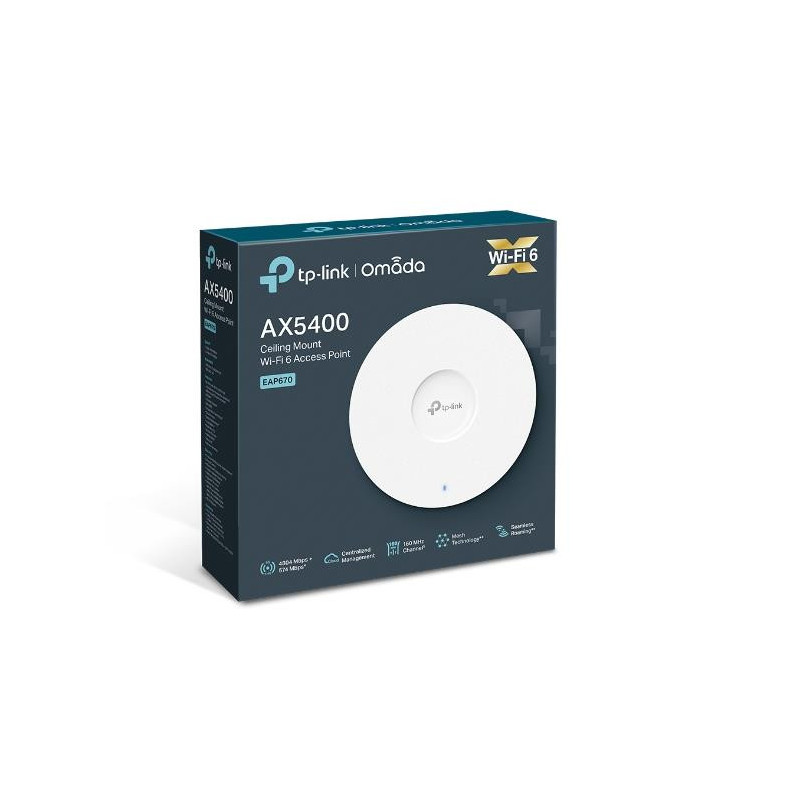

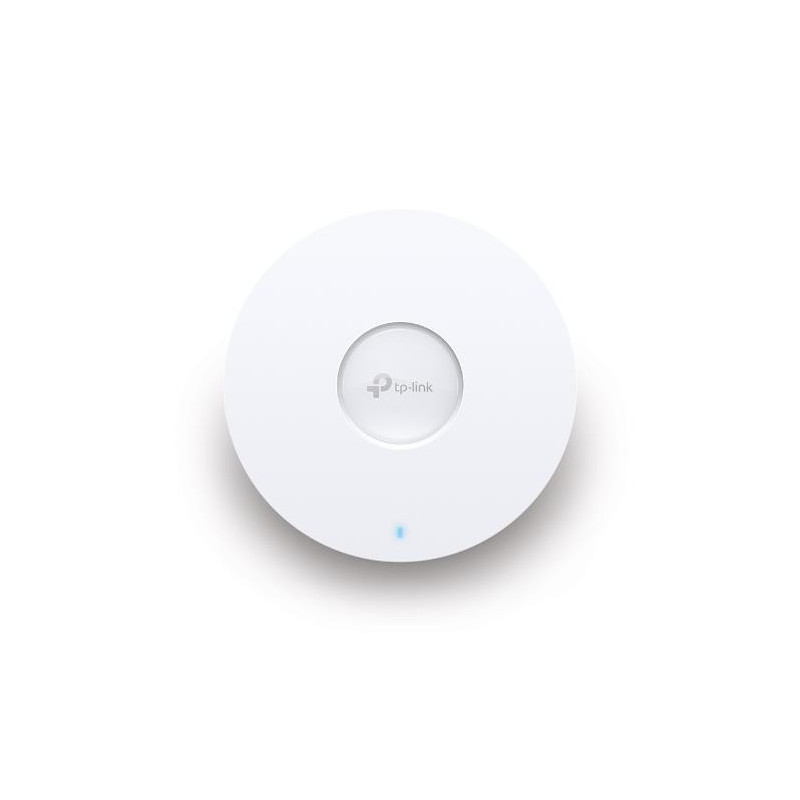

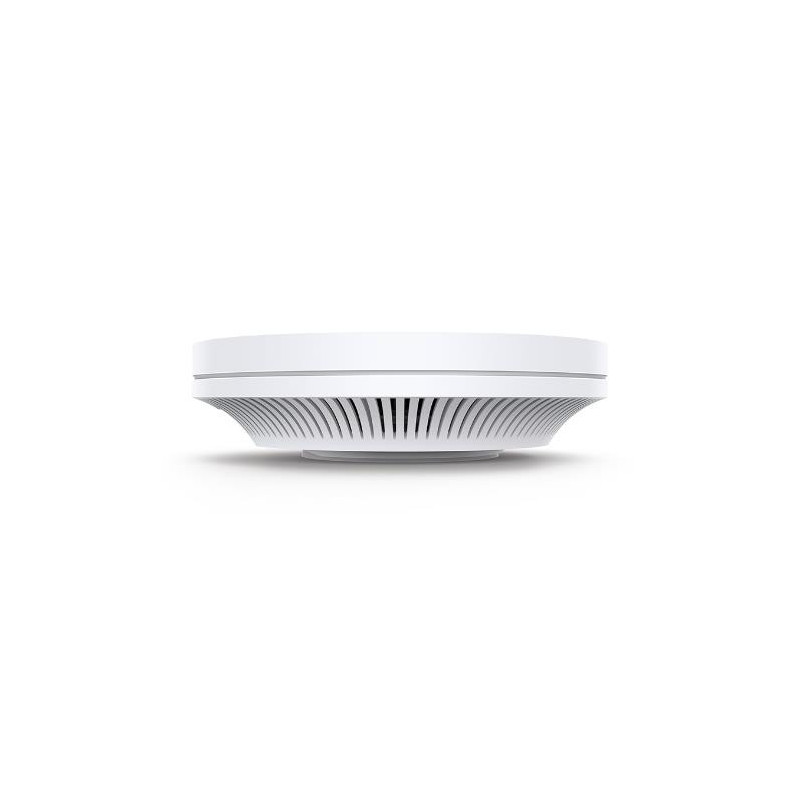

AX5400 Ceiling Mount Wi-Fi 6 Access Point
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud

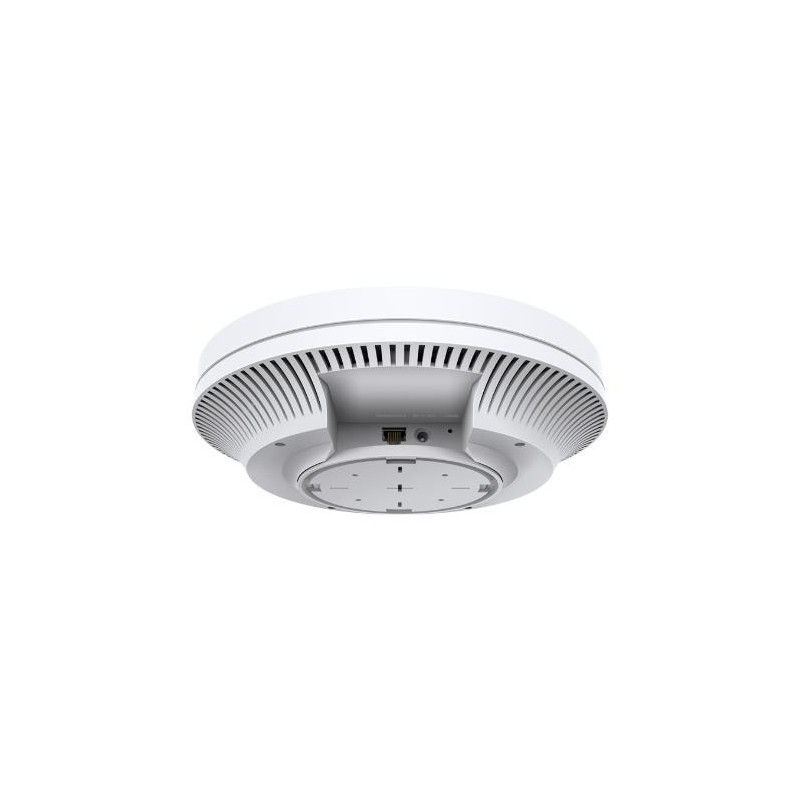

2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment *
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment§
Seamless Roaming
Uninterrupted streaming when moving between APs§
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
Designed for Business Environments
Requiring High-Performance WiFi
High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

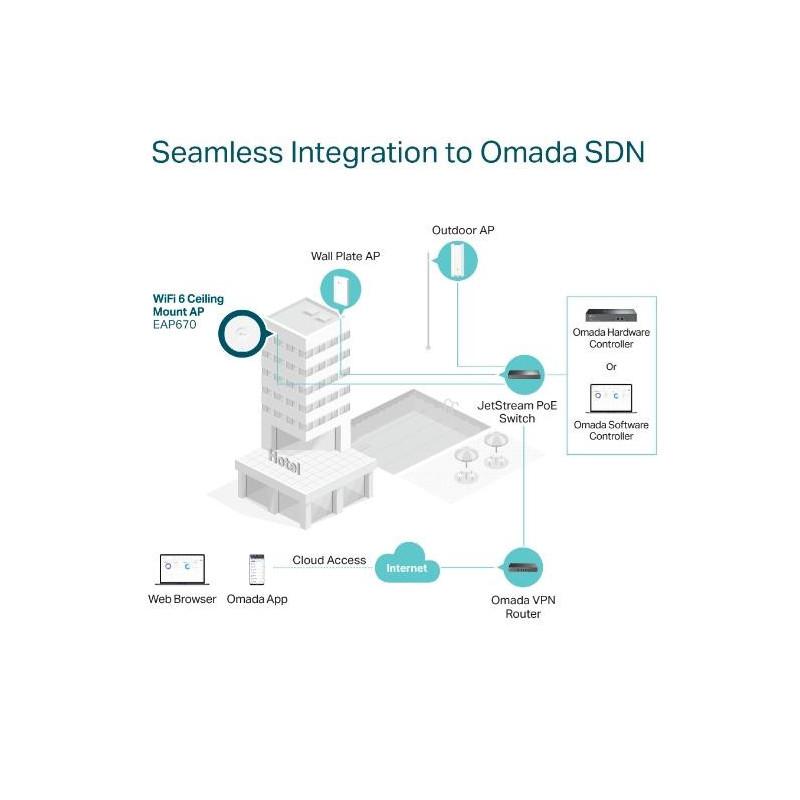

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance *
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Deployment & Higher Performance by Omada Mesh §
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

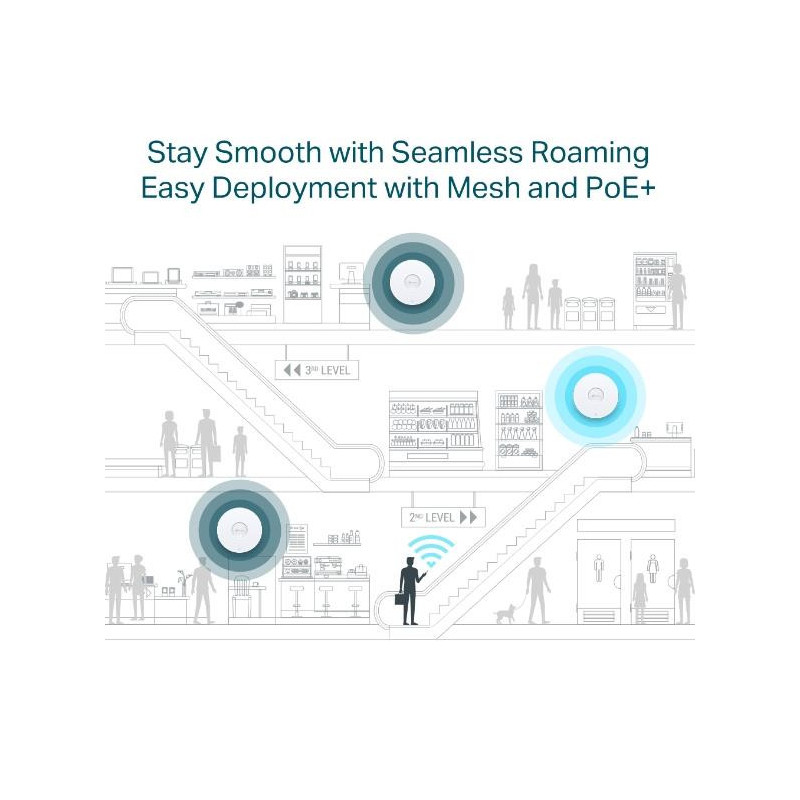

Always Stay Smooth with Fast Roaming §
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
- Blazing-Fast WiFi 6 Speeds - Delivers astonishing wireless speeds of up to 54 Gbps powered by the latest WiFi 6 technology
- Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
- Long-Range Coverage - Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
- Optimized Network Experience - Ensures uninterrupted WiFi connections with seamless roaming and Omada Mesh technology*
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Access Control List (ACL) | Yes |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5 dBi |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Certification | CE, FCC, RoHS |
| Depth | 243 mm |
| Ethernet LAN data rates | 2500 Mbit/s |
| Firmware upgradeable | Yes |
| Frequency band | 2.4 - 5 GHz |
| Harmonized System (HS) code | 85176990 |
| Height | 64 mm |
| Input current | 1.5 A |
| International Protection (IP) code | IP67 |
| LED indicators | Yes |
| Maximum data transfer rate | 5400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Model name | EAP670 |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Number of SSID supported | 16 |
| Number of users | 250 user(s) |
| Package depth | 304 mm |
| Package height | 82 mm |
| Package weight | 1320 g |
| Package width | 302 mm |
| Placement | Ceiling,Wall |
| Power over Ethernet (PoE) | Yes |
| Product colour | White |
| Product Net Weight | 0.7 kg |
| Quality of Service (QoS) support | Yes |
| Quantity per pack | 1 pc(s) |
| Rate limiting | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Reset button | Yes |
| Series | Omada |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Shipping Box Depth | 30.5 cm |
| Shipping Box Height | 8 cm |
| Shipping Box Weight | 1.378 kg |
| Shipping Box Width | 30.5 cm |
| Summary | TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5400 Mbit/s, Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP) dBm |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <28 dBm (5 GHz) dBm |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.305 |
| Unit Box Width | 0.305 |
| Unit Calculated Volume | 0.007442 cubm |
| Unit Calculated Weight | 1.38 kg |
| Unit Depth | 30.5 cm |
| Unit Height | 8 cm |
| Unit Width | 30.5 cm |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/omada-sdn-access-point/eap670/ |
| VLAN support | No |
| Web-based management | Yes |
| Width | 243 mm |
| Wireless isolation | Yes |
