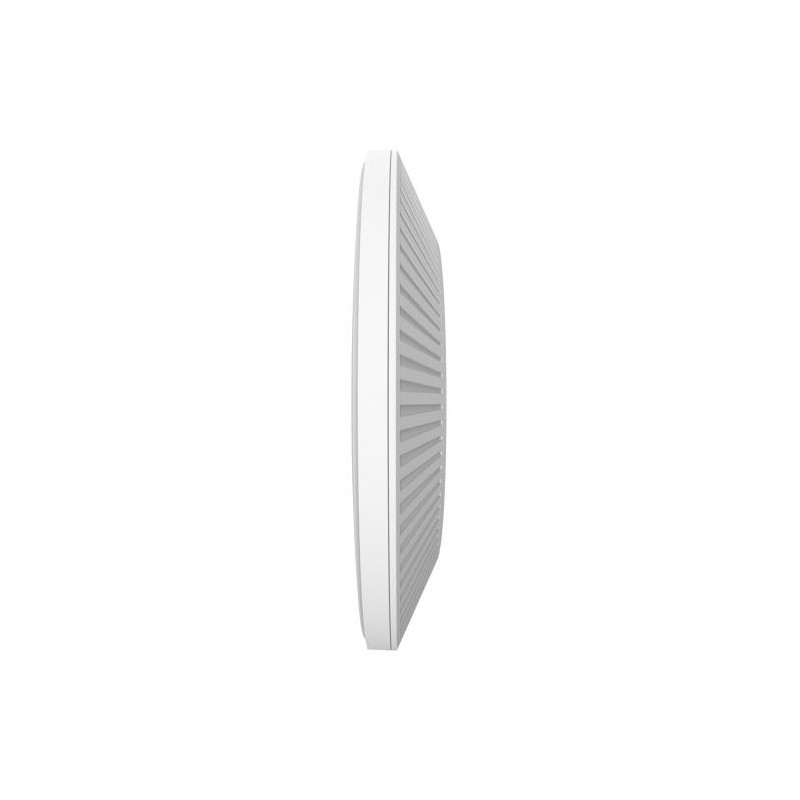

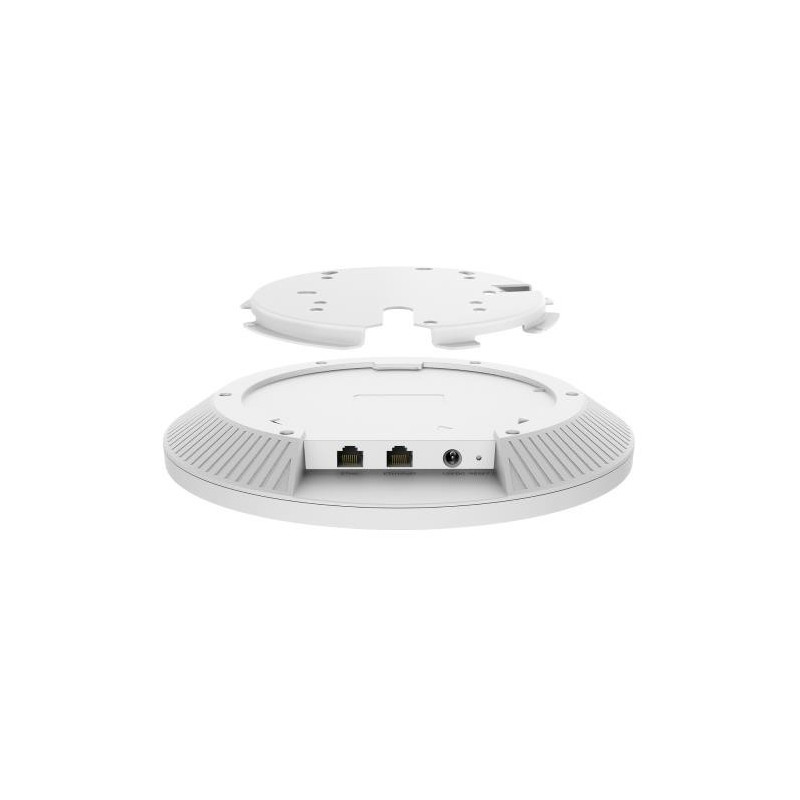

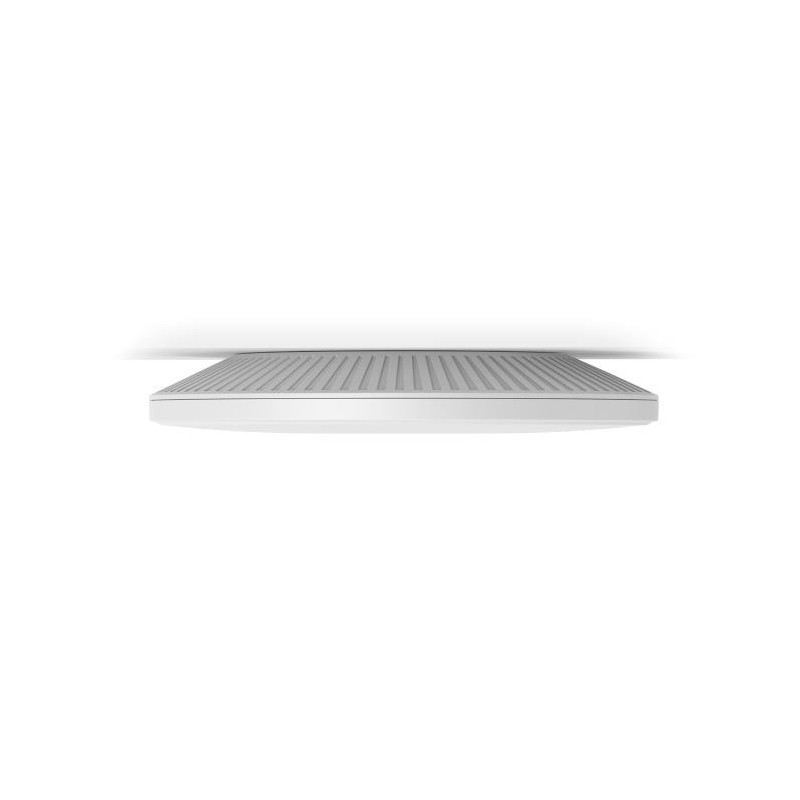

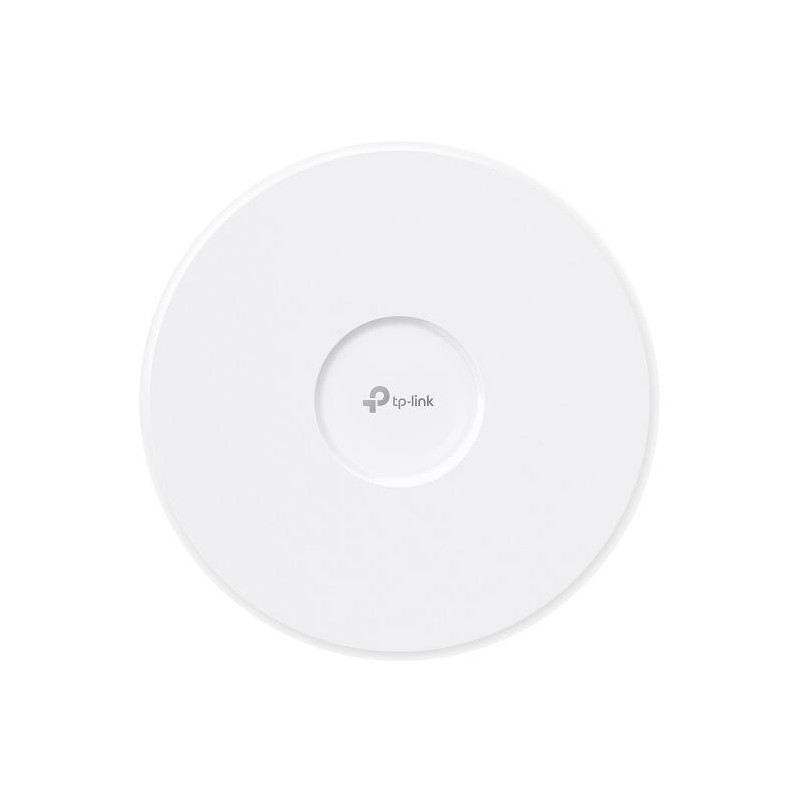

Access Point, TP-LINK, 22000 Mbps, IEEE 802.11a / b / g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, 2x10GbE, EAP783
Product reference:
2-4895252503517
Access Point, TP-LINK, 22000 Mbps, IEEE 802.11a / b / g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, 2x10GbE, EAP783
Product reference:
2-4895252503517
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.
Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.
Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.
Intelligent Power Management
Offers more reliable network operation for your business.
Centralized Cloud Management
Manage the whole network locally or from the cloud.
Omada Mesh Technology
More flexible and convenient wireless deployment.△
PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.
- BE19000 Tri-Band Wi-Fi 7: 11520 Mbps (6 GHz) + 5760 Mbps (5 GHz) + 1376 Mbps (2.4 GHz). Buffering will no longer be a problem
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi
- 2× 10G Port: Unlock the full potential of Wi-Fi 7
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network
- Advanced Functions：Supports centralized management, mesh, and seamless roaming
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Access Control List (ACL) | Yes |
| Airtime Fairness (ATF) | Yes |
| Antenna type | Internal |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| DC voltage range | 12 V |
| DC-in jack | Yes |
| Depth | 280 mm |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10000 Mbit/s |
| Flow control support | Yes |
| Frequency band | 2.4 - 6 GHz |
| Height | 46.5 mm |
| LED indicators | Yes |
| Maximum data transfer rate | 19000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5760 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11520 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Model name | BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point |
| Mounting kit | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| Number of users | 760 user(s) |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package type | Box |
| Placement | Ceiling,Wall |
| Power over Ethernet (PoE) | Yes |
| Product colour | White |
| Quality of Service (QoS) support | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Rate limiting | Yes |
| Reset button | Yes |
| Security algorithms | WPA/WPA2/WPA3 |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 19000 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.355 |
| Unit Box Width | 0.325 |
| Unit Calculated Volume | 0.01096 cubm |
| Unit Calculated Weight | 2.5 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.tp-link.com/sg/business-networking/omada-sdn-access-point/eap783/#overview |
| VLAN support | Yes |
| Width | 280 mm |
