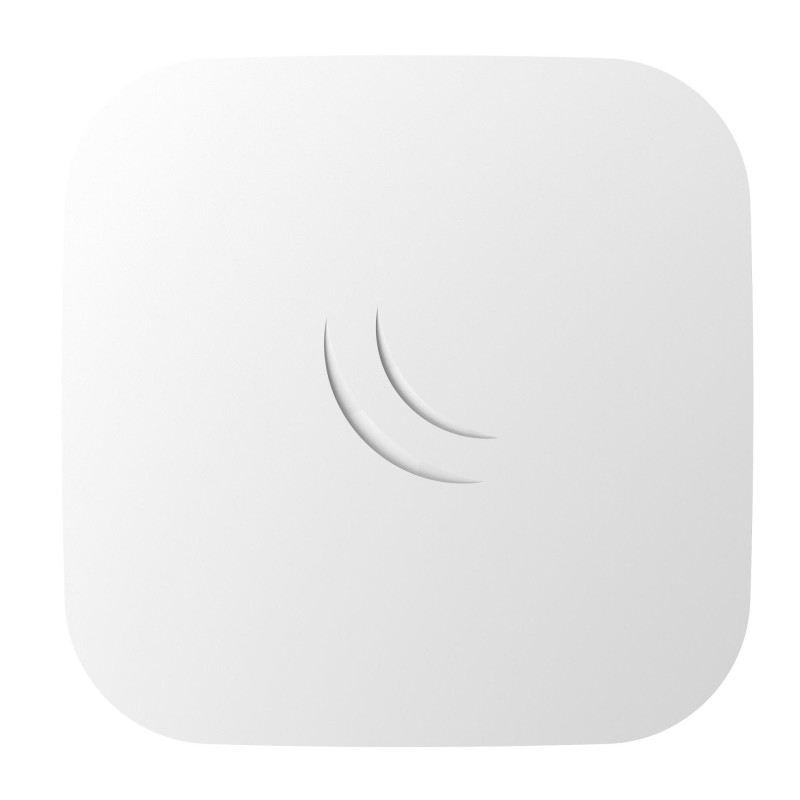

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button - the customizable mode button in the device center will turn off all lights and
sounds at it's default configuration, but can be reconfigured to launch any RouterOS script.
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| AC adapter included | Yes |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 2.5 dBi |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Built-in processor | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| DC voltage range | 17 - 57 V |
| Depth | 30 mm |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Flash memory | 16 MB |
| Frequency band | 2.412 - 2.484, 5.15 - 5.875 GHz |
| Harmonized System (HS) code | 85176990 |
| Height | 136 mm |
| Internal | No |
| Internal memory | 128 MB |
| LED indicators | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Model name | cAP ac // RBcAPGi-5acD2nD |
| Mounting kit | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Operating system installed | RouterOS |
| Operating temperature (T-T) | -40 - 50 °C |
| Output voltage | 57 V |

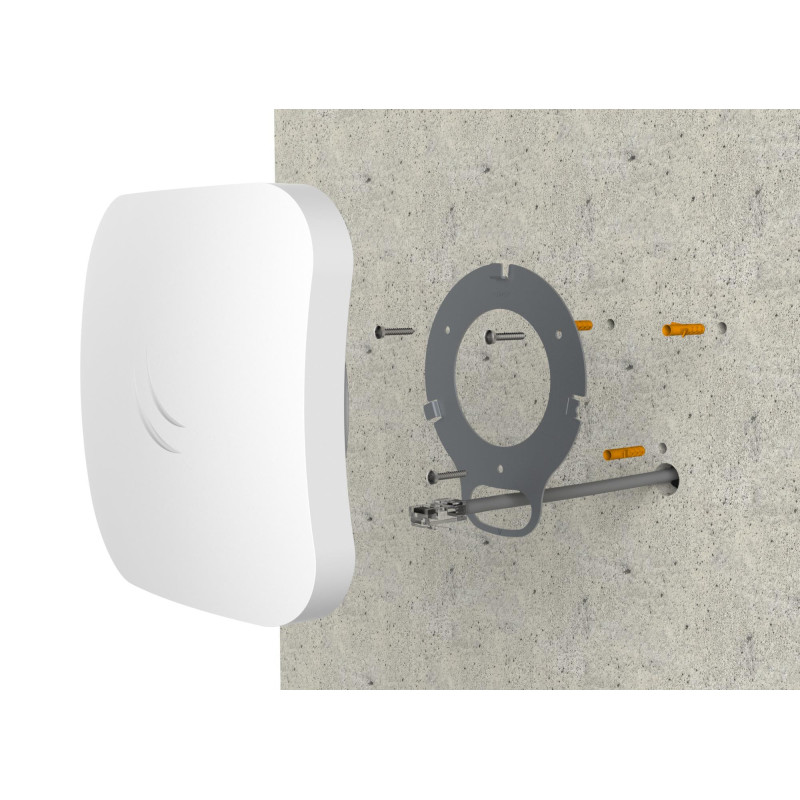

| Placement | Ceiling,Wall |
| PoE adapter included | Yes |
| Power consumption (max) | 13 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE/Passive PoE |
| Processor frequency | 716 MHz |
| Processor model | IPQ4018 |
| Product colour | White |
| Receiver sensitivity | 2.4GHz: 1MBit/s: -100 @ 26dBm Tx 11MBit/s: -94 @ 26dBm Tx 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -78 @ 23dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -73 @ 22dBm Tx 5GHz: 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -80 @ 21dBm Tx MCS0: -96 @ 26dBm Tx MCS7: -75 @ 20dBm Tx MCS9: -7 |
| Summary | Mikrotik cAP ac. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W |
| Unit Box Height | 0.265 |
| Unit Box Length | 0.06 |
| Unit Box Width | 0.18 |
| Unit Calculated Volume | 0.003386 cubm |
| Unit Calculated Weight | 0.718 kg |
| Units per Shipping Box | 20 |
| Vendor Homepage | https://mikrotik.com/product/cap_ac#fndtn-specifications |
| Width | 136 mm |
