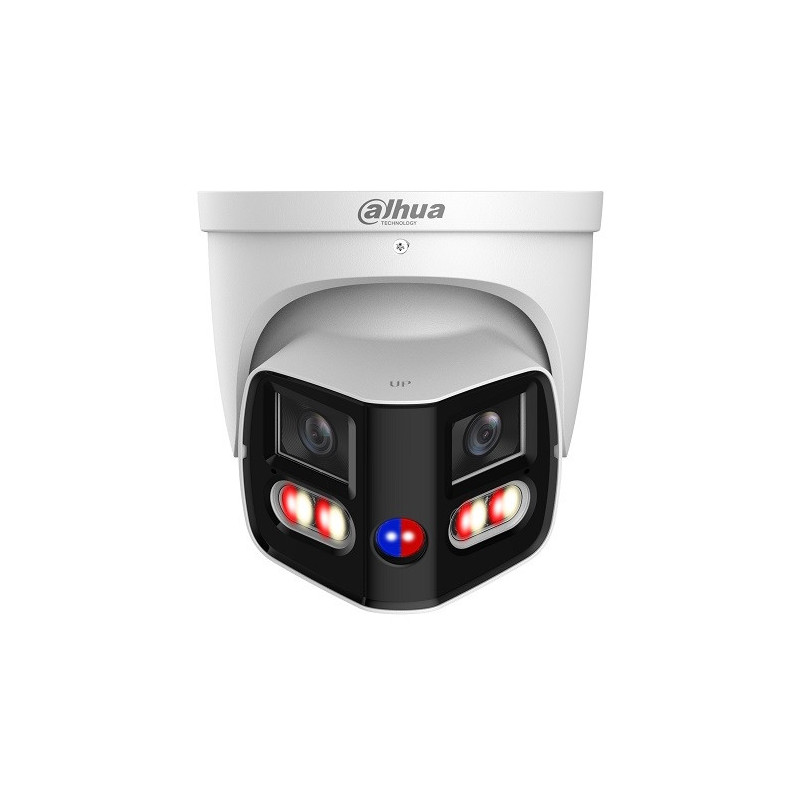

IP network camera - Dahua PDW31259-A180-AS-PV 12 MP 2.8 mm
Product reference:
14-6937552430761
12 MP IP network camera with a fixed 2.8 mm lens, 180° horizontal viewing angle, 120 dB WDR and up to 30 m IR or warm light illumination. It supports PoE+, SMD 4.0, face, virtual line crossing and intrusion detection, two-way audio, up to 512 GB microSD card and has IP67 protection.
IP network camera - Dahua PDW31259-A180-AS-PV 12 MP 2.8 mm
Product reference:
14-6937552430761
12 MP IP network camera with a fixed 2.8 mm lens, 180° horizontal viewing angle, 120 dB WDR and up to 30 m IR or warm light illumination. It supports PoE+, SMD 4.0, face, virtual line crossing and intrusion detection, two-way audio, up to 512 GB microSD card and has IP67 protection.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Dahua PDW31259-A180-AS-PV 12MP 2.8mm
12 MP IP network camera with fixed 2.8 mm lens, 180° horizontal viewing angle, 120 dB WDR and up to 30 m IR or warm light illumination. Supports PoE+, SMD 4.0, face detection, virtual line crossing and intrusion detection, two-way audio, up to 512 GB microSD card and IP67 security.
- 12 MP panoramic IP camera with a fixed 2.8 mm lens and a 180° horizontal viewing angle, designed for monitoring a wide area.
- Smart dual lighting combines IR and warm light at a distance of up to 30 m, ensuring reliable monitoring of the environment day and night.
- Advanced AI features: people and vehicle classification, SMD 4.0, intrusion and virtual line crossing detection, face detection, and AcuPick search.
- Active deterrence with red and blue warning lights, customizable audible signals, integrated dual microphones and speakers, PoE+ support, and IP67 environmental protection.
Product information | |
|---|---|
| Product type | Panoramic IP network camera |
| Brand | Dahua |
| Model | PDW31259-A180-AS-PV |
| Resolution | 12 MP, 5000 × 2500 pixels |
| Image sensor | 1/2.5 inch CMOS |
| Distribution system | Progressive scan |
Lens and image | |
| Lens type | Fixed focal length |
| Focal length | 2.8mm |
| Lens mount | M12 |
| Maximum aperture | F1.0 |
| Aperture control | Fixed |
| Vertical viewing angle | 78° |
| Minimum illumination | 0.0008 lux in color mode; 0.0003 lux in monochrome mode; 0 lux with backlight on |
| Electronic lock | Automatic or manual, from 1/3 s to 1/100,000 s |
| Image enhancement | 120 dB WDR, BLC, HLC, 3D noise reduction, fog removal, automatic scene adjustment, white balance and gain control |
| Privacy masking | Up to 8 zones |
Image and storage | |
| Image compression | H.265, H.264, H.264H, H.264B and MJPEG for additional stream |
| Video streams | 3 streams |
| Maximum frame rate | Up to 20 frames per second |
| Supported video resolution | 5000 × 2500, 1920 × 860, 1200 × 536, 960 × 432 and D1 |
| Bandwidth management | VBR, CBR, and ABR |
| Video bandwidth | From 6 kbps to 32,768 kbps for H.264 and H.265 formats |
| Local storage | MicroSD card up to 512 GB |
| Network storage | FTP, SFTP, NAS |
Smart features | |
| Perimeter security | Intrusion, virtual line crossing, presence and roaming detection |
| Classification of objects | Classification of people and vehicles |
| Search and discovery | SMD 4.0, AcuPick, Smart Search and Full-frame Face Detection |
| Motion detection | Configurable motion detection using up to 4 rectangular zones |
Sound and connections | |
| Integrated microphones | 2 microphones |
| Built-in speakers | 2 speakers |
| Audio compression | PCM, G.711a, G.711Mu, G.726 and G.723 |
| Audio input and output | 1 RCA audio input and 1 RCA audio output |
| Alarm connections | 1 alarm input and 1 dry contact alarm output |
| Network port | RJ-45 Gigabit Ethernet, 10/100/1000Base-T |
| Compatibility | ONVIF S, G, T and M profiles; CGI and SDK/API support |
| Supported customers | Smart PSS Lite, DSS, DMSS, DoLynk Care, iOS and Android |
Power supply and construction | |
| Power supply | 12 VDC or PoE+ according to IEEE 802.3at |
| Electricity consumption | Basic mode: 4.9 W using 12 VDC or 6.8 W via PoE; Peak: 13.3 W using 12 VDC or 16.1 W via PoE |
| Dual backup power | Supports simultaneous 12 VDC and PoE power supply; camera continues to operate when one source is disconnected |
| Housing material | Metal |
| Dimensions | 135.2 × 122.0 mm |
| Net weight | 0.99 kg |
| Operating temperature | From −40°C to +60°C |
| Operating humidity | Up to 95% relative humidity, non-condensing |
| Protection class | IP67 |
| Safety warning | For professional security surveillance use only. Mount and power the camera according to the manufacturer's instructions. Make sure the mounting surface, network equipment, and power source are suitable for the camera's weight and electrical requirements. |
| Height | 150mm |
| Length | 200mm |
| Weight | 1200g |
| Width | 150mm |
