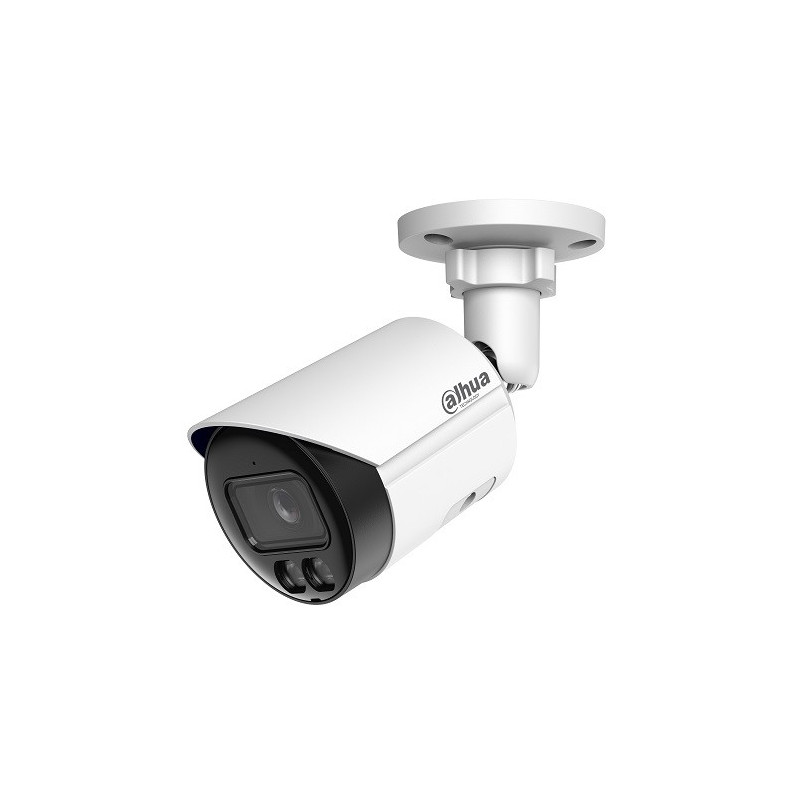

IP Security Camera - Dahua HFW2649S-S-IL 6 MP 2.8 mm IP Camera
Product reference:
14-6939554905261
6 MP outdoor cylindrical IP camera with fixed 2.8 mm lens, 120 dB WDR function, infrared and warm light illumination and integrated microphone. Supports PoE, H.265 video compression, SMD Plus, perimeter protection, microSD card up to 512 GB and has IP67 protection.
IP Security Camera - Dahua HFW2649S-S-IL 6 MP 2.8 mm IP Camera
Product reference:
14-6939554905261
6 MP outdoor cylindrical IP camera with fixed 2.8 mm lens, 120 dB WDR function, infrared and warm light illumination and integrated microphone. Supports PoE, H.265 video compression, SMD Plus, perimeter protection, microSD card up to 512 GB and has IP67 protection.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Dahua HFW2649S-S-IL 6MP 2.8mm IP Camera
6 MP outdoor cylindrical IP camera with fixed 2.8 mm lens, 120 dB WDR, infrared and warm light illumination and integrated microphone. Supports PoE, H.265 video, SMD Plus, perimeter protection, up to 512 GB microSD memory and IP67 protection.
- 6 MP cylindrical IP camera with fixed 2.8 mm lens and wide 112° horizontal viewing angle
- Smart Dual Light combines infrared and warm light illumination to ensure clear night vision up to 30m away
- Advanced detection with SMD Plus, virtual line and intrusion protection for people and vehicles
- 120 dB WDR, integrated microphone, H.265 compression and PoE support ensure efficient and flexible surveillance
Product information | |
|---|---|
| Product type | Outdoor cylindrical IP security camera |
| Brand | Dahua |
| Model | HFW2649S-S-IL |
| Resolution | 6 MP; maximum 3288 × 1850 pixels |
| Image sensor | 1/2.7 inch CMOS |
| Lens | Fixed focal length, 2.8 mm, M12 connector, F1.6 aperture |
| Viewing angle | Horizontal: 112°; Vertical: 61°; Diagonal: 132° |
| Minimum focusing distance | 1.0m |
Image and video | |
| Frame rate | Main stream: 1-20 fps at 3288 × 1850 resolution; supports three-stream encoding |
| Supported resolutions | 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, VGA and CIF |
| Image compression | H.265, H.264, H.264H, H.264B and MJPEG in additional stream |
| Bitrate control | CBR and VBR |
| Video bitrate | H.264: 32-8192 kbps; H.265: 12-8192 kbps |
| Day and night mode | Automatic ICR, color or black and white image |
| Image processing | Backlight compensation, highlight compensation, 3D noise reduction, white balance and gain control |
| Motion detection | Configurable in four rectangular areas |
| Area of interest | Four configurable areas |
| Image rotation | 0°, 90°, 180°, and 270°; 90° and 270° rotation supported at resolutions of 2688 × 1520 and below |
| Privacy masking | Four areas |
Smart features and sound | |
| Smart video systems | Virtual lines and intrusion detection, classifying people and vehicles |
| Smart motion detection | SMD Plus |
| Microphone | Built-in microphone |
| Audio compression | G.711a, G.711Mu, PCM and G.726 |
Network and memory | |
| Network interface | RJ-45, 10/100 Base-T |
| Network protocols | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, P2P and related protocols |
| Compatibility | ONVIF S, G and T profiles; CGI |
| Local memory | microSD card up to 512 GB |
| Additional memory | FTP and SFTP |
| Compatible software | SmartPSS Lite, DSS, DMSS and DoLynk Care; mobile apps for iOS and Android devices |
| Security features | HTTPS, SSL/TLS 1.2, AES-256, 802.1X, X.509 certificates, IP/MAC filtering, account lockout, and security logs |
Power supply and construction | |
| Power source | 12 V DC (±30%) or PoE 802.3af |
| Energy consumption | Typical: 1.8W via 12V DC or 2.6W via PoE; Peak: 4.3W via 12V DC or 5.4W via PoE |
| Housing material | Metal |
| Dimensions | 169.8 × 70 × 70 mm (L × W × H) |
| Net weight | 0.47 kg |
| Operating temperature | −40°C-+60°C |
| Operating humidity | Up to 95% relative humidity, non-condensing |
| Environmental protection class | IP67 |
| Certificates | CE-LVD EN 62368-1; CE-EMC Directive 2014/30/EU |
Safety warning | |
| Important | For fixed outdoor surveillance use only. Installation and electrical connection must be performed by a suitably qualified person. Use only the specified 12 V DC or IEEE 802.3af PoE power supply, protect cable connections from water, and do not open or modify the camera while it is connected to a power source. |
| Height | 100mm |
| Length | 200mm |
| Weight | 590g |
| Width | 100mm |
