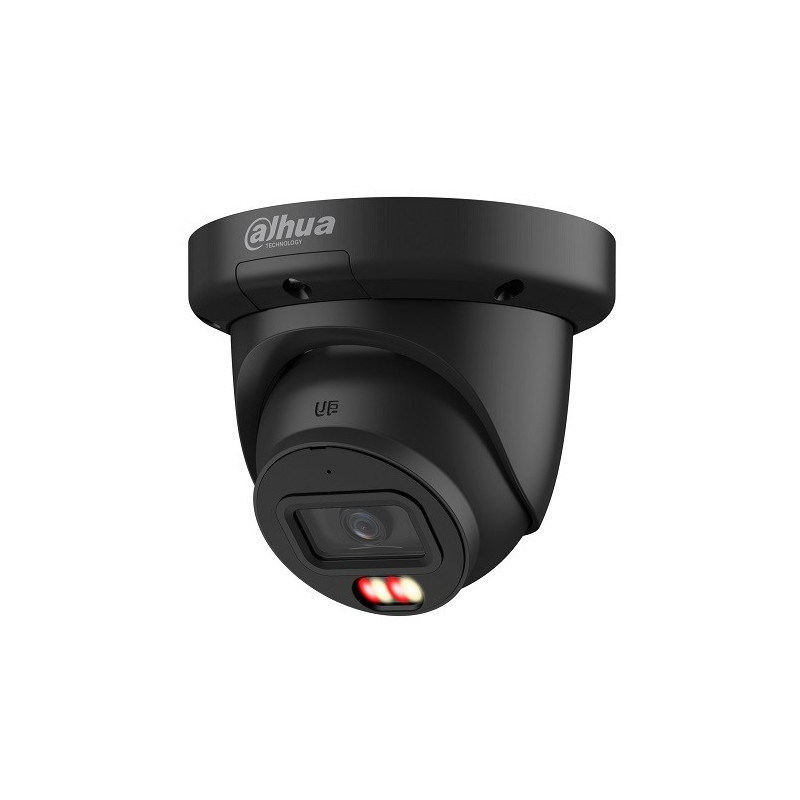

IP security camera - Dahua IPC-HDW3649QM-S-IL 6 MP 2.8 mm black
Product reference:
14-6939554925030
Dahua IPC-HDW3649QM-S-IL - black 6 MP IP dome camera with fixed 2.8 mm lens, 120 dB WDR and up to 30 m IR or warm light illumination. The camera supports PoE, has integrated audio, microSD card up to 512 GB, IP67 security and smart detection functions.
IP security camera - Dahua IPC-HDW3649QM-S-IL 6 MP 2.8 mm black
Product reference:
14-6939554925030
Dahua IPC-HDW3649QM-S-IL - black 6 MP IP dome camera with fixed 2.8 mm lens, 120 dB WDR and up to 30 m IR or warm light illumination. The camera supports PoE, has integrated audio, microSD card up to 512 GB, IP67 security and smart detection functions.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Dahua IPC-HDW3649QM-S-IL 6 MP 2.8mm black
Dahua IPC-HDW3649QM-S-IL - black 6 MP IP dome camera with fixed 2.8 mm lens, 120 dB WDR and up to 30 m IR or warm light illumination. The camera supports PoE, has a built-in microphone, microSD card up to 512 GB, IP67 security and smart detection functions.
- 6 MP IP dome security camera with fixed 2.8mm wide-angle lens and black metal housing
- Smart dual lighting combines IR and warm light, providing up to 30m visibility at night
- Advanced AI features: SMD 4.0, people and vehicle classification, intrusion and virtual line crossing detection
- Integrated microphone, 120 dB WDR, H.265 compression, PoE support and IP67 weather protection
Product information | |
|---|---|
| Product type | IP dome security camera |
| Brand | Dahua |
| Model | IPC-HDW3649QM-S-IL |
| Color | Black |
| Housing material | Metal |
| Dimensions | 105.5 mm × Ø122,0 mm |
| Net weight | 0.53 kg |
Camera and lens | |
| Image sensor | 1/2.7 inch CMOS, progressive scan |
| Highest resolution | 6 MP : 3288 × 1850 pixels |
| Lens type | Fixed focal length |
| Lens mount | M12 |
| Maximum aperture | F1.4 |
| Field of view | Horizontal: 110°; Vertical: 58°; Diagonal: 132° |
| Minimum focusing distance | 1.4m |
| Electronic lock | Automatic or manual, 1/3 s-1/100 000 s |
| Minimum illumination | 0.005 lux in color mode; 0.0005 lux in monochrome mode; 0 lux with backlight on |
Video recording and image processing | |
| Image compression | H.265, H.264, H.264H, H.264B and MJPEG for additional stream |
| AI video coding | AI H.265 and AI H.264 |
| Frame rate | Up to 25/30 frames per second, depending on video standard and stream |
| Flows | Three streams |
| Supported resolutions | 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA and CIF |
| Speed control | VBR, CBR, and ABR |
| Dynamic range | 120dB WDR |
| Image features | BLC, HLC, 3D noise reduction, de-fog, automatic scene adjustment, mirror image, image rotation, privacy masking and lens distortion correction |
| Motion detection | Configurable to up to four rectangular areas |
| Area of interest | Up to four areas |
Smart features | |
| Perimeter security | Intrusion, virtual line crossing, presence and loitering detection |
| Classification of objects | Classification of people and vehicles using SMD 4.0 |
| Face detection | Full-frame face detection, snapshot optimization, and face enhancement |
| AcuPick | Object matching and search in live or recorded video using compatible peripherals |
| Smart search | Improved smart search and event extraction using compatible " Smart NVR" |
Audio, Network, and Storage | |
| Microphone | Built-in microphone |
| Audio compression | PCM, G.711a, G.711Mu, G.726 and G.723 |
| Network interface | RJ-45 10/100 Base-T |
| Compatibility | ONVIF S, G, T and M profiles; CGI |
| Network protocols | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP, P2P and related protocols |
| Storage | microSD card up to 512 GB, NAS, FTP and SFTP |
| Compatible software | SmartPSS Lite, DSS, DMSS and DoLynk Care |
| Mobile platforms | iOS and Android |
Nutrition and environmental conditions | |
| Power source | 12 V DC or PoE according to IEEE 802.3af |
| Energy consumption | Typical: 3.7W using 12V DC or 5.3W via PoE; Peak: 7.4W using 12V DC or 9.5W via PoE |
| Operating temperature | −40 ° C-+60 °C |
| Operating humidity | Up to 95% relative humidity, non-condensing |
| Protection class | IP67 |
| Certificates | CE-LVD : EN 62368-1; CE-EMC : Directive 2014/30/ES |
Safety information | |
| Safety warning | Use the camera only for its intended purpose - security and surveillance. Follow the manufacturer's instructions for installation, power connection and network configuration. Use a suitable 12 V DC power supply or compliant PoE equipment. Do not install or use the camera if its housing, cable or connectors are damaged. |
| Height | 150mm |
| Length | 150mm |
| Weight | 710g |
| Width | 150mm |
