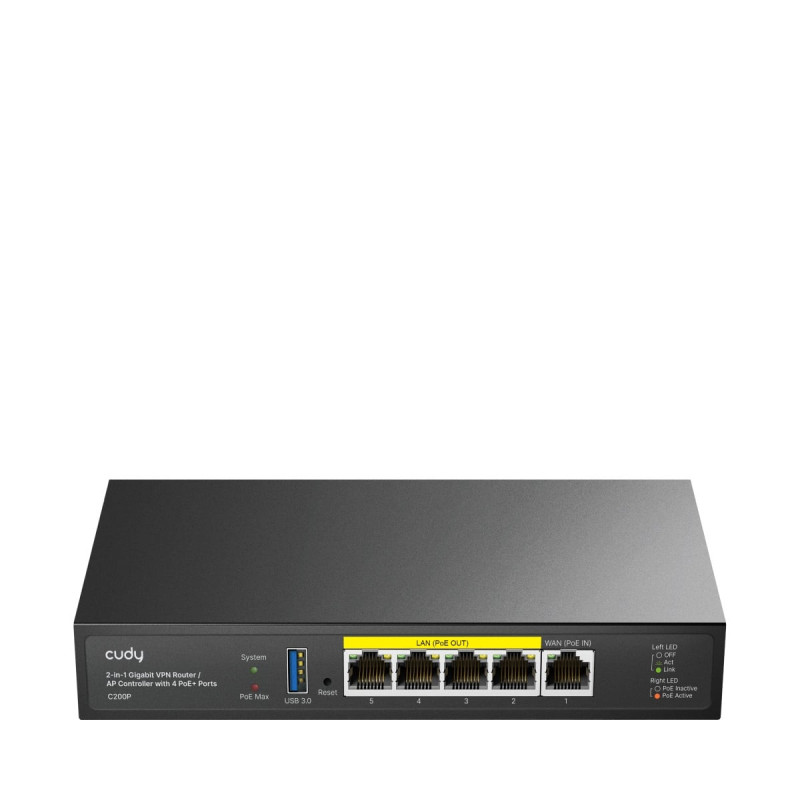

VPN Router and AP Controller Cudy C200P
Product reference: 26-6971690793470
  • Type: VPN Router/AP Controller
  • Brand: Cudy
  • Model: C200P
  • Processor: Dual-core 800 MHz
  • Connections: 1× WAN PoE In, 4× LAN Gigabit PoE
  • USB: 1× USB 3.0
  • Power: 60W
  • Management: Web GUI, CLI
  • Technology: Cudy Mesh
  • Number of users: Up to 200
  • Operating temperature: 0 70 °C
VPN Router and AP Controller Cudy C200P

VPN Router and AP Controller Cudy C200P

Product reference: 26-6971690793470
  • Type: VPN Router/AP Controller
  • Brand: Cudy
  • Model: C200P
  • Processor: Dual-core 800 MHz
  • Connections: 1× WAN PoE In, 4× LAN Gigabit PoE
  • USB: 1× USB 3.0
  • Power: 60W
  • Management: Web GUI, CLI
  • Technology: Cudy Mesh
  • Number of users: Up to 200
  • Operating temperature: 0 70 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
6473 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General characteristics
  • Model C200P
  • Device type 2-in-1 Gigabit VPN Router / AP Controller with 4 PoE+ Ports
  • PoE ports 4× GbE with 802.3at/af Mode A PoE (Ports 2-5)
  • WAN ports 1× Gigabit Ethernet Port
  • USB ports 1× USB 3.0 Port
  • PoE power budget 60W total (max 30W per port); 55W total when USB is in use
  • Processor MT7621A, 880 MHz Dual-Core
  • Flash/ROM 16MB NOR
  • RAM 256MB DDR3
  • Maximum power consumption 60W
  • Standby power consumption 2W
  • PoE Power Consumption (Idle/Active) 5W (No PoE), 50W (USB active), 55W (USB idle)
  • Power source Input: 100-240 V AC, Output: 54V 1.11A DC
  • Power input method DC Jack, Passive PoE (24/48V), 802.3at/af PoE
  • Dimensions 190×100×28 mm / 7.48×3.94×1.1 inches
  • Weight Not specified
  • Housing material Metal
  • Mounting options Desktop, Wall-mount
  • Operating temperature 0 to 40 (32 to 104)
  • Storage temperature -40 to 70 (-40 to 158)
  • Working humidity 5% to 95% RH (non-condensing)
  • Storage humidity 0% to 100% RH (non-condensing)
  • Grounding method Grounding point available
  • Certificates FCC, CE, IEC/EN 61000-4-2 (6kV contact / 8kV air ESD)
  • LED indicators System, PoE Max, Link/ACT/PoE status of each port
  • Reset button Yes
  • WAN Modes DHCP, Static IP, PPPoE
  • IPv6 Support Dynamic (SLAAC/DHCPv6), Static, Passthrough, 464XLAT, MAP-E, DS-Lite
  • Max APs Supported 10 in Router mode, 200 in AP controller mode
  • Max Clients Supported 100 in Router mode, unlimited in AP controller mode
  • Captive Portal Supported
  • Multi-SSID Up to 4 SSIDs per band
  • Centralized AP Management Supported
  • Quality of Service (QoS) Rate Limiting, Address Reservation, DHCP Server/Client List
  • Firewall SPI, DoS Protection, Port Forwarding, Triggering, DMZ, Block PING
  • VPN Server Support WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
  • VPN Client Support WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
  • VPN Throughput WireGuard: up to 233.9 Mbps, OpenVPN: up to 24.7 Mbps
  • Content Management MAC Filter, Domain/IP Filter, IP/MAC Binding, Online Schedule, VPN Toggle
  • DNS Features DNS over TLS, Manual DNS, Override Clients' DNS, Rebind Protection (Cloudflare, Google, Quad9)
  • USB Functions Samba Server, Wake-on-LAN
  • System Management Config Web (HTTPS), Local Remote Control, TR069/TR098/TR111/TR181, Backup/Restore
  • Diagnostics Diagnosis, Ping, Traceroute, NSLookup, System Log
  • Languages English, Spanish, German, French, Chinese (Simplified), and 20+ more
  • Dashboard Monitoring Internet, WAN, LAN, VPN, DHCP Server, AP Management, System Version
  • Package contents C200P, Power Adapter, Ethernet Cable, Installation Guide, Mounting Kit

Weight0.832 kg
