Victron Phoenix Inverter 12 / 250 230V VE.Direct SCHUKO

The Victron Phoenix Inverter 12/250 230V VE.Direct SCHUKO is a compact voltage converter that converts 12V DC to 230V AC. The device generates a pure sine wave, allowing it to power devices requiring a stable voltage waveform, such as small electronics, chargers, power supplies, and small network devices. In practice, it is a solution for simple, well-designed on-board and off-grid installations requiring a single, reliable 230V source.

The housing and design of the Phoenix series are designed for mobile use, such as in campers, boats, and small standalone systems. The version with a SCHUKO socket allows for connection to standard European plugs without additional adapters, while the VE.Direct interface allows for configuration and monitoring of the device's operation. The ECO mode reduces energy consumption when the load is low or temporarily inactive, which is important in battery-powered installations.

Key functions and features:

• 250 W continuous power, suitable for light and medium 230 V receivers in 12 V installations,
• 400 W peak power, useful for short-term start-up of some devices,
• pure sine wave output, beneficial for electronic equipment and power supplies,

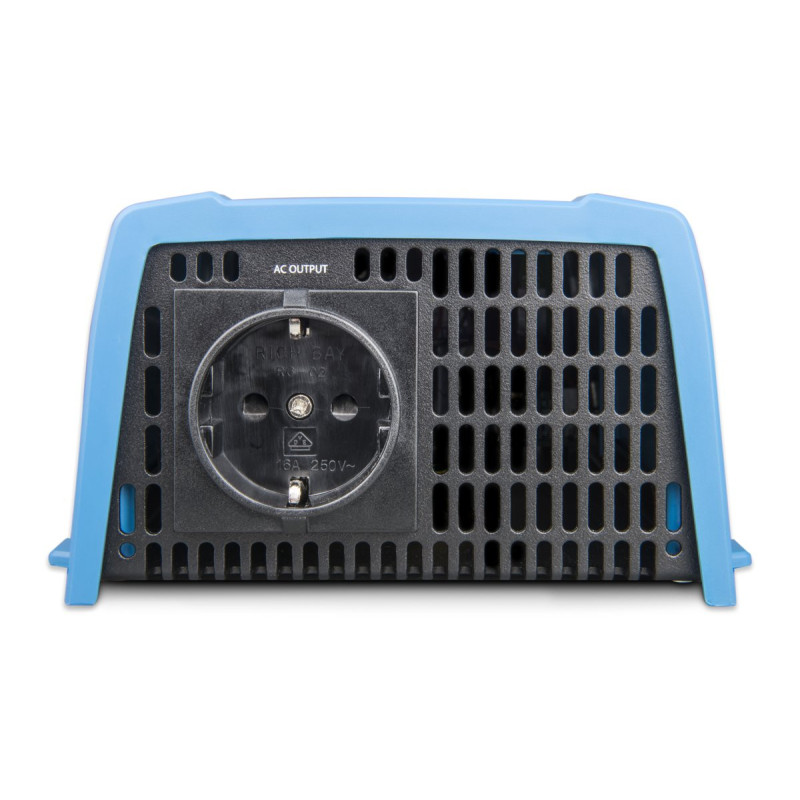

• SCHUKO socket for easy direct connection of standard devices,

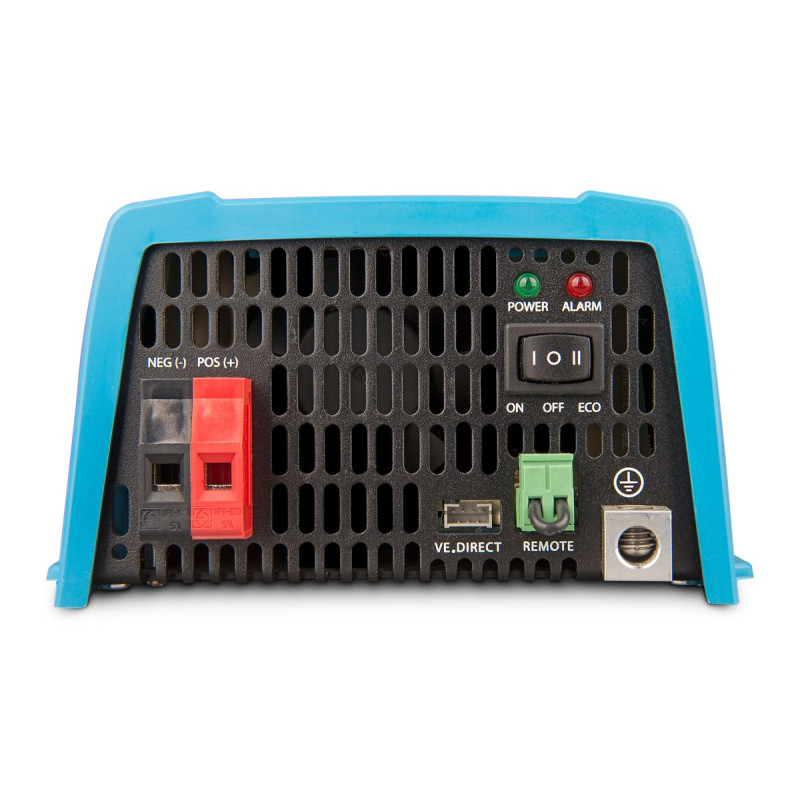

• VE.Direct port for configuration, data reading and integration with the Victron system,
• remote switching on, which facilitates control of the converter from the installation level,
• ECO mode helps reduce battery power consumption when operating without load or at low power consumption.

This device is primarily used where 230V power is needed for individual consumers, and reliability and compatibility with 12V systems are paramount. Typical applications include campers, service buildings, boats, trailers, small solar systems, and off-grid homes. It's a good choice for users who want to power moderate-power devices without a large, oversized converter.

Compatibility and installation instructions:

• the converter works with 12 V DC installations, so it requires a properly selected battery and cables,
• it is worth selecting the wiring cross-section for the current on the 12 V side and shortening the connections as much as possible,
• the device should be installed in a place that provides adequate ventilation and protection against moisture,
• for receivers with a higher starting current, a peak power of 400 W must be taken into account,
• VE.Direct facilitates subsequent diagnostics and control of operating parameters, which is useful in mobile and autonomous installations.

In practice, the Phoenix Inverter 12/250 VE.Direct SCHUKO is a solution for people who need a simple but technically correct 230 V source in a 12 V installation. It works well where voltage stability, low energy consumption and the possibility of integration with the Victron ecosystem are important.

Technical data

The kit includes a Victron Phoenix Inverter 12/250 230V VE.Direct SCHUKO converter with a SCHUKO socket and VE.Direct interface. Before installation, it's worth checking the 12V system's compatibility, consumer demand, and cooling and wiring conditions to ensure the device is used for its intended purpose.
