Single Phase Inverter/Charger SRNE 3kW IPC12-3kW

The SRNE 3kW IPC12-3kW single-phase inverter/charger is an advanced device that provides efficient power management, offering the ability to charge 12V batteries and convert energy from various sources. Thanks to multi-stage charging technology, the device contributes to longer battery life by ensuring optimal charging conditions. This system is particularly useful in recreational vehicles such as campers and boats, where efficient power management is crucial. The inverter generates a stable, pure sine wave output that eliminates the risk of damage to sensitive electronic devices such as computers and televisions by stabilizing the voltage and frequency.

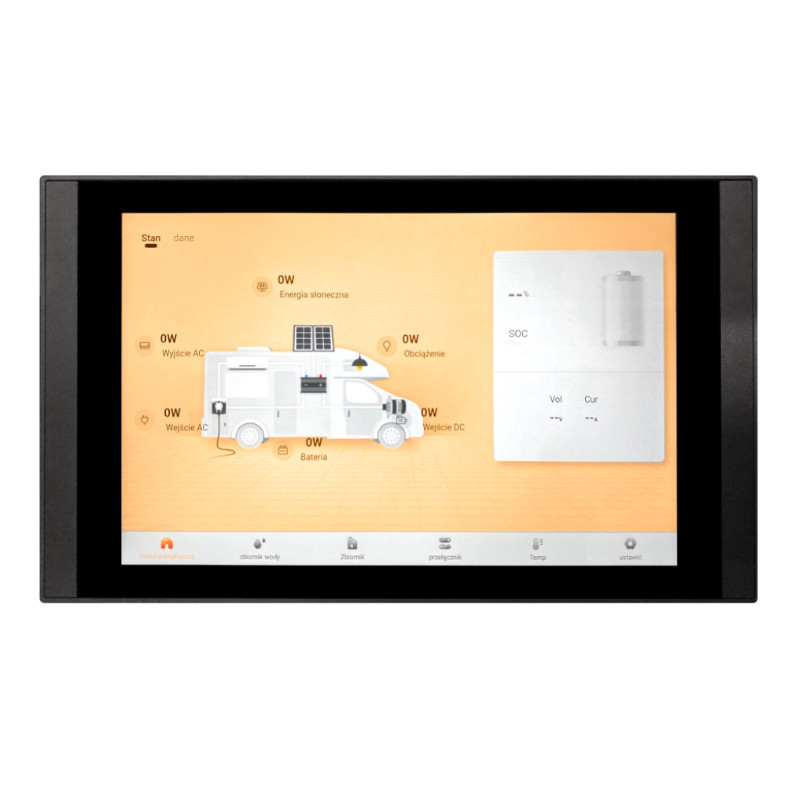

The device allows for AC input current regulation, allowing it to adapt to varying power requirements and also ensures quiet operation, which is important in quiet environments such as campers and yachts. With remote monitoring via a mobile app, users can easily monitor device parameters and manage its operation.
The inverter supports both charging and discharging, allowing for flexible use of energy in both on-grid and off-grid modes. This device can handle large loads, offering a continuous output of 3000W, with a maximum peak load of up to 6000VA, ensuring stability during short-term power surges. Versatile mounting options make the device flexible and easy to install in a variety of spaces.

Specification

Parameters / Model IPC-3KW

Inverter Mode

• Rated output power: 3,000W


• Maximum output power: 6,000VA


• Rated output voltage: 230Vac ±2% (Single phase L+N+PE)


• Wave shape: Pure sine wave


• Rated output frequency: 50/60Hz


• Rated output efficiency: > 83%


• Maximum output efficiency: > 94% (at 20% load)


• Starting power in ECO mode: < 30W (30~100W optional)


• ECO mode switch socket: 1 minute (optional 30 sec ~ 30 min)


• UPS mode switch socket: < 10ms


• AC output current OUT1: 25A


• AC output current OUT2 (mains power only): 15A

Charger mode

• AC input voltage: 180～265Vac


• AC input frequency: 45～65Hz


• Rated AC input current: 0~25A


• Rated battery charging current: 0～120A


• Starter battery charging current: 3A

Battery

• Nominal battery voltage: 12V


• Battery type: USE/FLD/GEL/LI/SLD (Default)

Basic parameters

• Dimensions: 551 × 280 × 157 mm


• Libra: 22.5 kg


• IP protection class: IP20


• Ambient temperature: -25～60°C, > 45°C power reduction


• External module (optional): Wi-Fi/GPRS


• Humidity: 0～100%


• Cooling method: Natural cooling + fan

Communication

• RV-C/RS485/TTL/Bluetooth

System

• Transformer

Protection function

• Battery overvoltage/undervoltage protection


• AC output overload/short circuit protection


• AC input overvoltage/undervoltage protection


• Overheating protection


• Fan blockage protection

Functions

• NG connector


• Remote on/off


• Programmable relay output


• Voltage drop compensation


• Lead-acid battery charging temperature compensation

Furthermore, the SRNE 3kW IPC12-3kW inverter/charger is equipped with a range of safety features, including overvoltage, underload, and reverse polarity protection, ensuring safe operation and long-term reliability. The product also supports the use of renewable energy, contributing to a reduced carbon footprint.
