Renogy Pro 12V 3000W HF Inverter Charger

The Renogy Pro 12V 3000W HF Inverter Charger provides high efficiency and reliable power for off-grid and mobile applications. With an inverter efficiency of over 91% and standby power consumption of less than 10W, it helps extend battery life by minimizing energy loss. Its lightweight, compact design (8.1 kg) facilitates installation in tight spaces, such as campers and small homes.

Renogy HF Pro 12V 3000W Inverter Charger

• High efficiency and low self-consumption
  inverter efficiency of 91% and standby consumption of 10 W, which actually saves energy and battery in off-grid systems.


• Fast, seamless power transfer
  Automatic transfer between AC input and battery in 10-20 ms, keeping connected devices running without interruption.


• Convenient control and safety

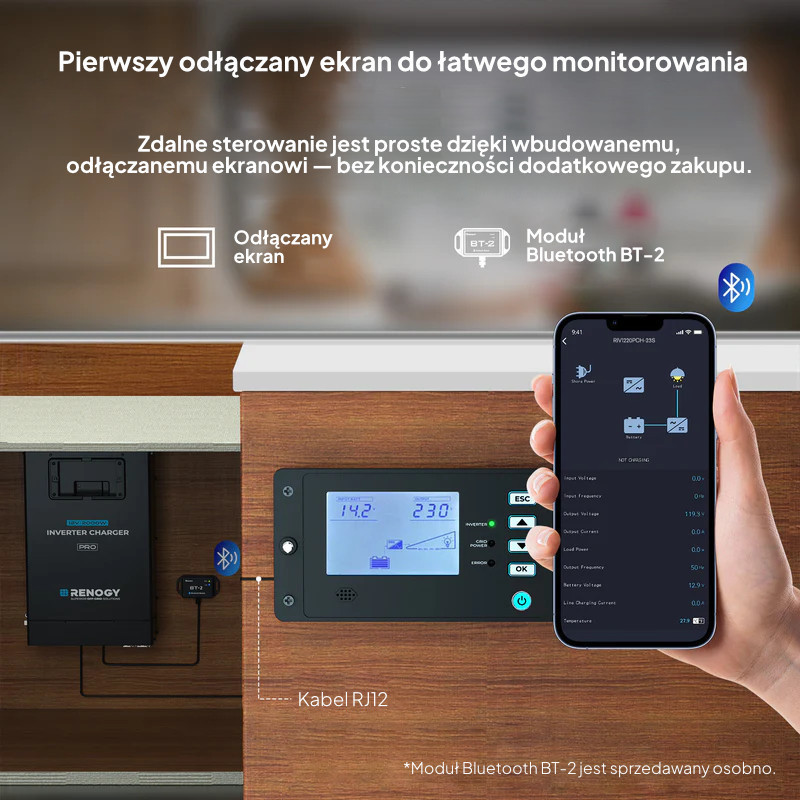

  Detachable LCD panel for monitoring + remote viewing option in the app (with BT-2 module, sold separately) and built-in RCD (residual current protection).

Main features

• Inverter efficiency above 91%


• Standby power consumption below 10W


• Fast switching 10-20 ms


• 2-in-1 inverter and charger


• Detachable LCD control panel


• Remote viewing via app


• Optional Bluetooth module BT-2


• Built-in RCD safety protection


• Compact, lightweight 8.1 kg


• All-in-one charging and power solution (2-in-1)

Key features of the system

• Compact HF design
  It takes up little space and is easy to install in a tight space in a camper or small cabin.


• Pure sine wave power supply
  Ensures stable operation of sensitive devices such as electronics, chargers and RTV equipment.


• Compatibility with various batteries
  Supports lithium and lead-acid batteries, so it will fit most installations.


• AC input operation (shore/grid)
  Allows charging and power supply from the mains or camping connection without the need for additional devices.


• Remote monitoring capability (BT-2)
  After adding the Bluetooth module, you will be able to view the parameters and system status in the application on your phone.


• Low own consumption
  Uses 71% less power in standby mode than other devices, so you get more usable energy from every charge.


• A partner for every journey
  Power your camper on the road and charge your batteries from the campsite connection (shore power) when you stop.

Specification

Inverter Specifications

• Continuous power: 3000W


• Peak power (surge): 6000W


• AC output voltage range: 230VAC


• Output frequency (nominal): 50/60 Hz ± 0.1Hz (default 50Hz)


• Voltage waveform: Pure sine wave


• Efficiency: > 91% (peak)


• THD: <4%


• DC input voltage: DC 12V


• DC input voltage range: 10.5-15.5 VDC


• No-load power consumption: <10W

Charger specifications

• Charging current (adjustable): 5-120A (5A steps)


• Charger efficiency: > 85% (peak)


• Input voltage (nominal): 187-265V


• Input frequency range: 40-70Hz

General and Transfer Switch

• Transfer time: Max 20 ms


• Transfer Switch: 16A Automatic Transfer Switch


• Supported battery types: GEL, AGM, SLA, FLD, CAL, LI, USER


• Noise: <55 dB


• Operating temperature: -20 to 50°C (-4 to 122°F) (derating from 30°C / 86°F)


• Dimensions: 432.4 × 305 × 123.8 mm


• Weight: 7.9 kg (17.4 lbs)


• Warranty - inverter: 3 years
