Renogy Pro 12V 2000W HF Inverter Charger

Renogy Pro 12V 2000W HF Inverter-Charger (pure sine wave)

Renogy Pro 12V 2000W HF Inverter Charger is a compact 2-in-1 device for off-grid installations and mobile applications
(campers, vans, tiny homes). It combines an inverter with over 91% efficiency with an AC wall charger, offering low self-consumption
in standby mode (<10W), which significantly reduces energy loss and helps extend battery runtime.

Key benefits

• High efficiency and energy savings - inverter efficiency > 91% and standby power consumption <10 W.


• Smooth power switching - automatic transfer AC ↔ battery in 10-20 ms (max. 20 ms).


• Pure sine wave - stable power supply for electronics, chargers, RTV and sensitive devices (THD <4%).


• A comprehensive 2-in-1 solution - inverter and charger at the same time, ideal for systems with AC input (shore/grid).

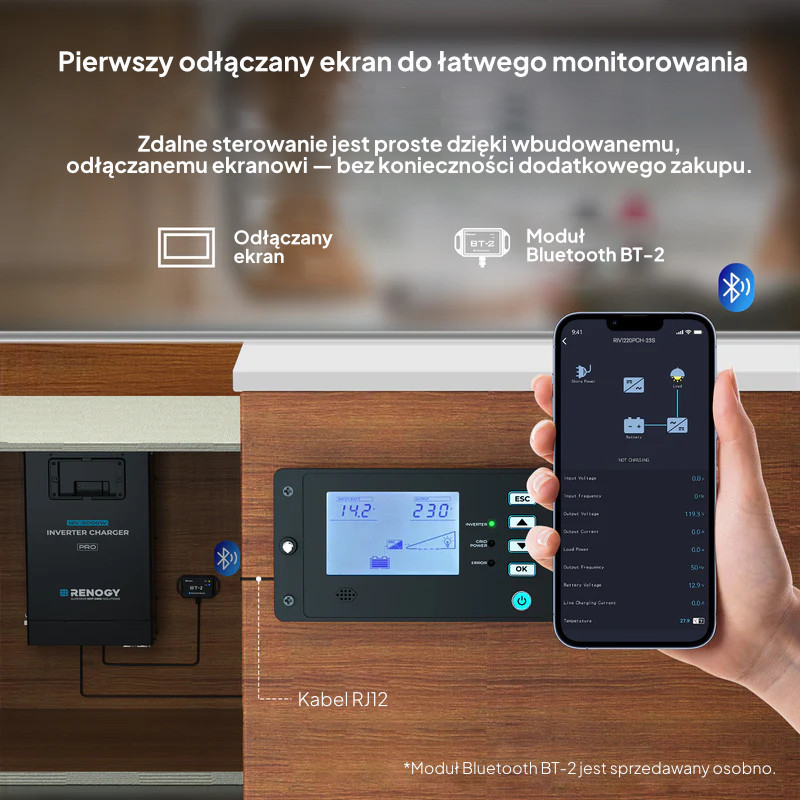

• Convenient controls - detachable LCD panel for monitoring; optional remote viewing in the application after adding the BT-2 module.


• Installation safety - built-in protection RCD (differential current) + automatic transfer switch 16A.


• Compact and lightweight - HF design facilitates installation in tight spaces; weight approx. 7.9 kg.

Application

This device allows you to power 230V receivers on the road from the battery and charge the power bank when connected to the mains or a
camper connection. Thanks to its fast transfer and pure sine wave, it's perfect for installations where uninterrupted operation of connected devices and high power quality are essential.

Main features

• Inverter efficiency: > 91% (peak)


• No-load power consumption: <10 W


• Fast transfer switching: 10-20 ms (max. 20 ms)


• Inverter and charger in one device (2 in 1)


• Detachable LCD control panel


• Remote monitoring capability (optional Bluetooth BT-2 module)


• Built-in RCD protection


• Compact HF design for installation in confined spaces

Inverter Specifications

• Continuous power: 2000 W


• Peak power (surge): 4000 W


• AC output voltage: 230 VAC


• Output frequency: 50/60 Hz ± 0.1 Hz (default 50 Hz)


• Course: pure sine wave


• Efficiency: > 91% (peak)


• THD: <4%


• DC input voltage: 12V


• DC input voltage range: 10.5-15.5 VDC


• No-load power consumption: <10 W

Charger specifications

• Charging current (adjustable): 5-120 A (5 A steps)


• Charger efficiency: > 85% (peak)


• AC input voltage (nominal): 187-265 V


• Input frequency range: 40-70 Hz


• Supported battery types: GEL, AGM, SLA, FLD, CAL, LI, USER

Transfer and general parameters

• Transfer time: max 20 ms


• Transfer switch: 16A Automatic Transfer Switch


• Noise: <55 dB


• Operating temperature: -20 to 50°C (power reduction from 30°C)


• Storage temperature: -30 to 70°C


• Humidity: 0% - 95%


• Dimensions: 432.4 × 305 × 123.8 mm


• Libra: 7.9 kg

Warranty and standards

• Warranty (inverter): 3 years


• Warranty (accessories): 3 years


• EMC standards: EN IEC 61000-6-1, EN IEC 61000-6-3, BS EN IEC 61000-6-1, BS EN IEC 61000-6-3


• Safety standards: EN 62477-1, EN 60335-1, EN 60335-2-29, BS EN IEC 62477-1, BS EN 60335-1, BS EN IEC 60335-2-29
