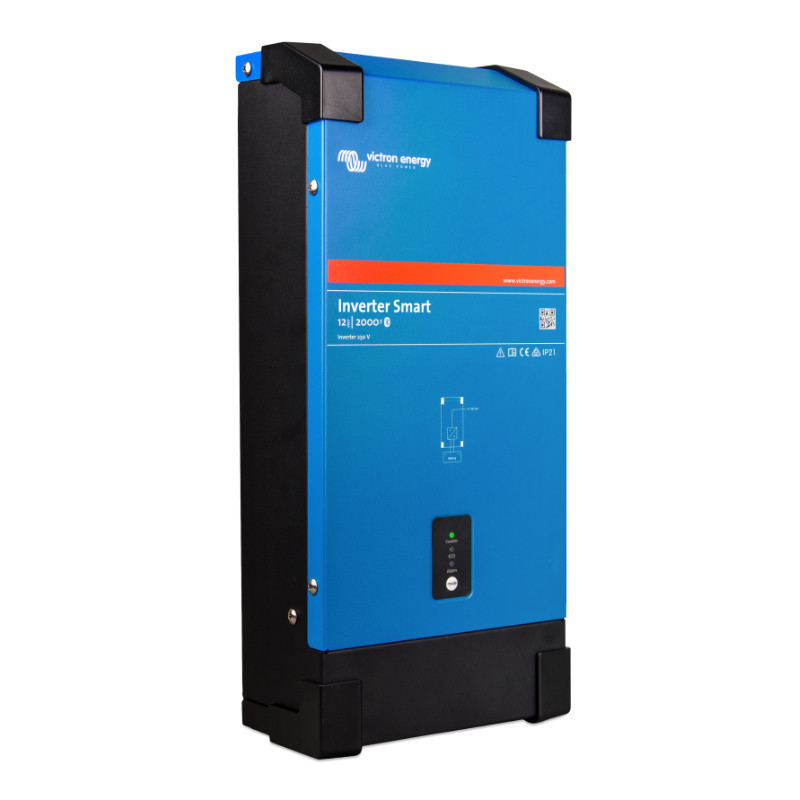

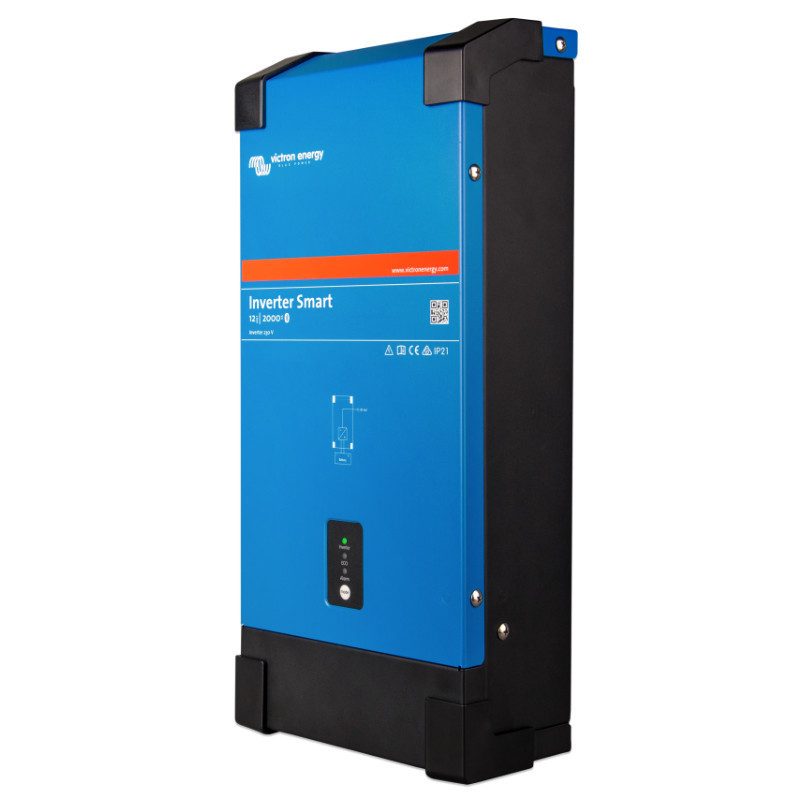

Phoenix Inverter 12 / 2000 Smart

Converter Phoenix Inverter 12/2000 Smart brands Victron Energy This technologically advanced device converts 12V DC to 230V AC, providing an output of 1600W. It is an ideal solution for mobile power systems such as campers, boats, and photovoltaic systems, offering stable power in challenging environments where access to traditional energy sources is limited.

Top-notch performance

Thanks to the efficiency at the level 92%, converter Phoenix Inverter 12/2000 Smart guarantees maximum utilization of available energy, which is crucial in solar-powered and battery-powered systems. This means that energy is converted in the most efficient way possible, resulting in energy savings and a longer system lifespan.

Versatility and ECO mode

The Phoenix inverter is the perfect solution for a variety of applications, from campers to photovoltaic installations. ECO mode automatically goes into sleep mode when the load is minimal, which reduces power consumption to 0.6W This feature not only extends battery life but also helps protect the environment by reducing energy consumption.

Full control and ease of use

Converter Phoenix 12/2000 Smart offers full control over the energy system thanks to the built-in Bluetooth function and interface VE.Port This allows the user to monitor and remotely configure the device based on their needs, which is especially useful during dynamic travel conditions. Additionally, the converter allows remote on/off switching via a button, increasing ease of use.

Key features

• High energy efficiency: Efficiency at the level 92% ensures optimal use of energy.


• ECO mode: Automatically goes to sleep mode under low load, reducing power consumption to 0.6W.


• Remote control: Bluetooth and VE.Port enable monitoring and configuration of the converter.


• Pure sinusoidal voltage: Safe power supply for electronic devices.


• Security: Protection against short circuits, overloads, low and high voltages and overheating.

Technical specifications

• Parallel and 3-phase operation: NO


• Input voltage range (V DC): 9.3 - 17 V


• Output voltage: 230 VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25ºC (VA): 2000 VA


• Output power at 25ºC (W): 1600 W


• Output power at 40ºC (W): 1450 W


• Output power at 65ºC (W): 1000 W


• Peak power (W): 4000 W


• Maximum performance: 92%


• Power at zero load (W): 8 W


• Power at zero load in ECO mode: 0.6 W


• Programmable relay: Yes


• Stop Start Power ECO Mode: Adjustable


• Security: a - g (security)


• Bluetooth wireless communication: Yes


• VE.Direct communication port: Yes


• Remote on/off: Yes


• Operating temperature range: -40 to +65ºC (fan-assisted cooling)


• Humidity (non-condensing): Max 95%


• Material and color: Steel, blue (RAL 5012) and black (RAL 9017)


• Protection category: IP21

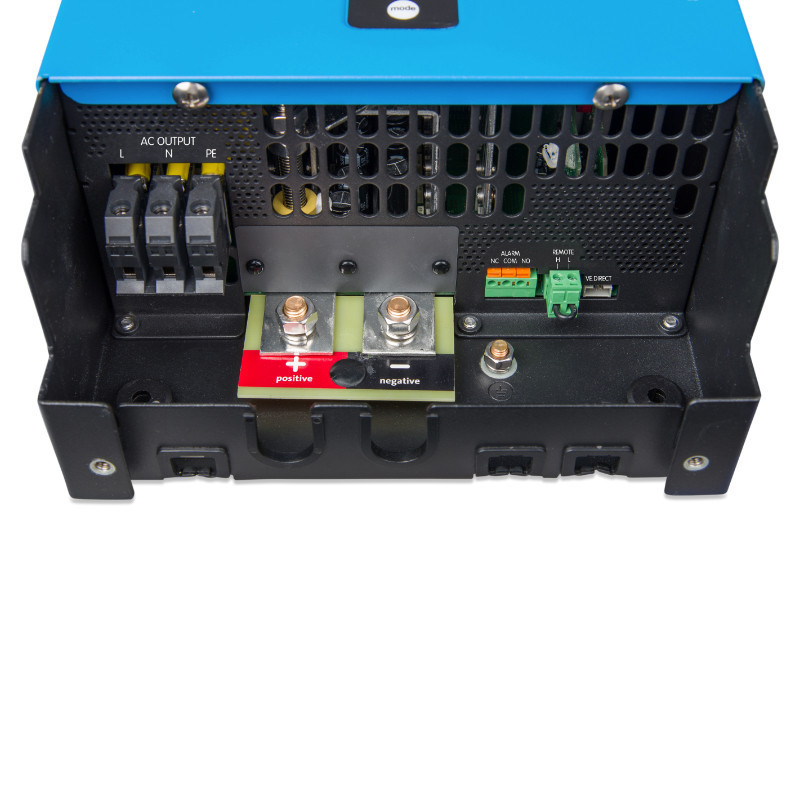

• Battery connection: M8 screws


• 230V AC connection: Screw terminals


• Libra: 13 kg


• Dimensions (mm): 485 x 219 x 125

Converter Phoenix Inverter 12/2000 Smart brands Victron Energy This is an advanced, efficient, and reliable solution for mobile energy systems. With its high efficiency, ECO mode, and remote control capabilities, the converter is ideal for applications where reliability and energy savings are key.
