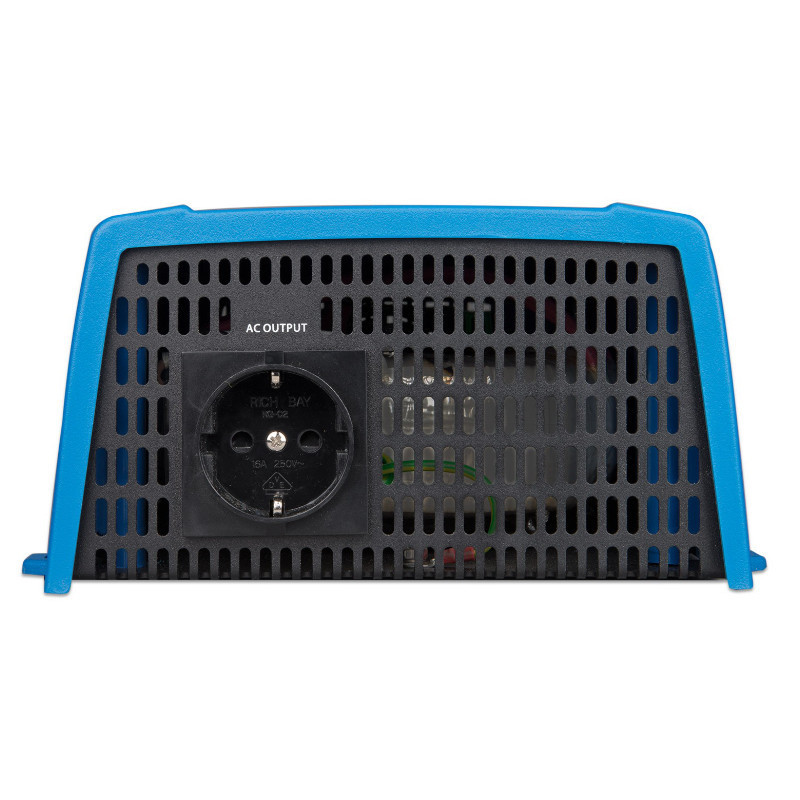

Phoenix 24 / 375 VE.Direct Schuko*

Converter Victron Energy Phoenix 24/375 VE.Direct is a technologically advanced device that converts voltage 24V for stable alternating voltage 230V about the power 300W This is an excellent solution for users who need a reliable power source in areas with limited access to the electrical grid. Designed to power small electrical devices, it is ideal for campers, boats, photovoltaic systems, and other mobile installations.

Product features

Converter Phoenix offers extremely high efficiency at the level 89%, ensuring that most of the energy is used efficiently. This not only saves energy, but also extends system runtime and minimizes losses, which is especially important in systems powered by renewable energy or batteries.
Versatile use
Phoenix 24/375 VE.Direct is a device designed for a wide range of applications. It's ideal for campers, boats, and camping. Whether you're out in the wild or on a road trip, the inverter Phoenix will provide you with stable power wherever you need it.
ECO mode - Intelligent energy saving
For optimal energy management, the converter Phoenix is equipped with a mode ECO, which automatically reduces power consumption during low load periods. This not only allows the device to run longer, but also helps protect the environment by reducing energy consumption.
Remote control and full configuration
Thanks to the remote control option, the inverter can be easily controlled using an additional dongle (available separately). The ability to precisely configure the device allows you to adapt its operation to the specific needs of the user, which is crucial in changing operating conditions.
Pure sinusoidal voltage - full compatibility with devices
Thanks to the built-in transformer, the converter Phoenix Generates a perfect sine wave voltage, making it suitable for powering even the most sensitive electrical devices, such as laptops, printers, and electric motors. This feature ensures safe and stable operation of connected devices without the risk of damage.

Technical specifications

• Model: Phoenix 24/375


• Continuous power at 25°C / 40°C: 300W / 260W


• Instantaneous power: 700 W


• Input voltage: 18.4 - 34 V


• Low Voltage Disconnect (Adjustable): 18.6 V


• Low battery alarm (adjustable): 21.8 V


• Maximum efficiency: 89%


• No-load power consumption: 6.1 W


• No-load power consumption in ECO mode: 1.4 W


• Security:



  • Output short circuit protection: yes


  • Overload protection: yes


  • Low and high battery voltage warning: yes


  • Overheating warning: yes






• Tightness level: IP21


• Dedicated DC cable: 10mm²


• Device weight: 3 kg


• Dimensions (height x width x length): 86 x 165 x 260 mm


• Remote ON/OFF switch: Yes


• Safety standard: EE-IEC 60335-1 / EN-IEC 62109-1

Converter Victron Energy Phoenix 24/375 VE.Direct is the perfect solution for people who value reliability, efficiency, and the ability to power in places with limited access to electricity. Thanks to advanced technology, ECO and remote configuration options, this is a device that will meet even the most demanding needs. Choose Phoenix 24/375, if you are looking for a professional and durable voltage converter for your mobile power systems.
