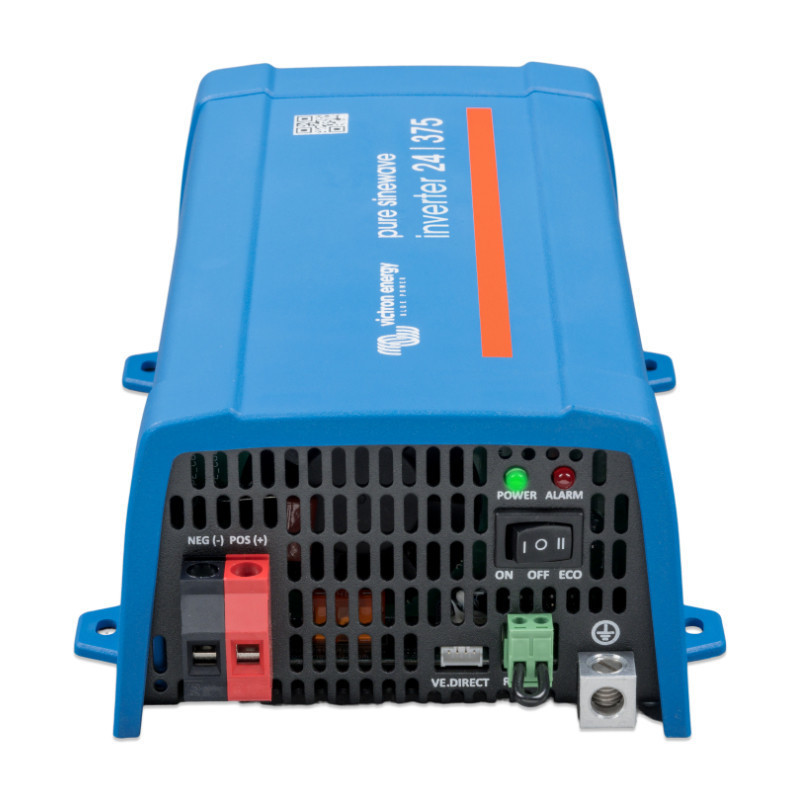

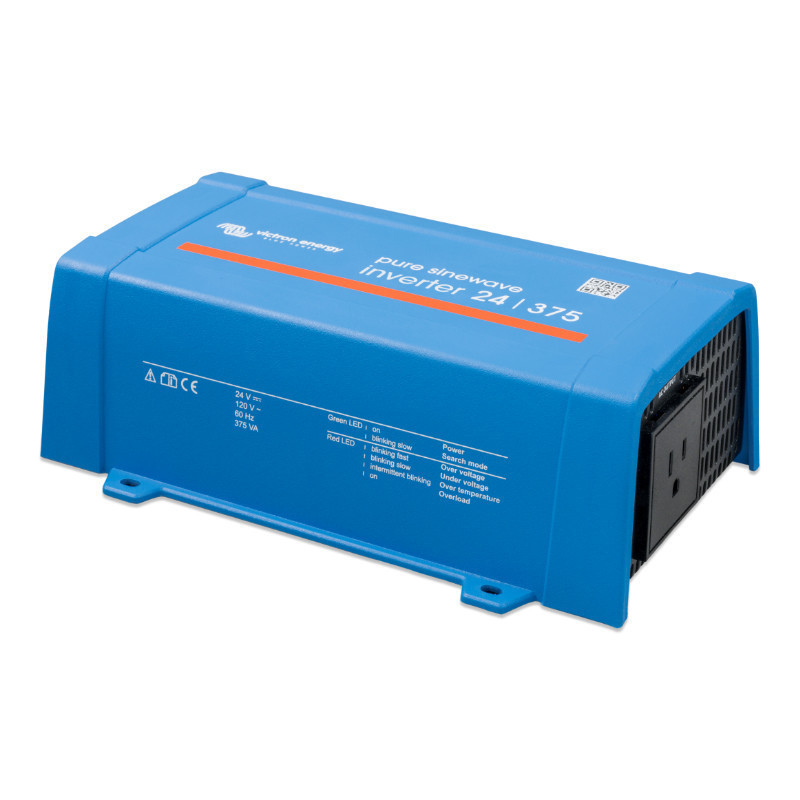

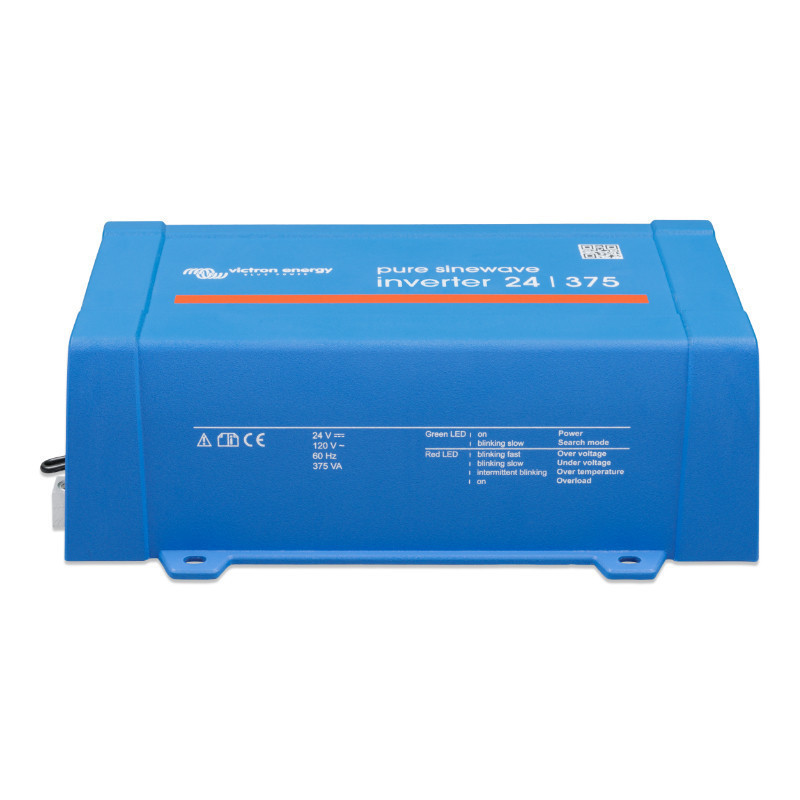

Phoenix 24 / 375 VE.Direct NEMA 5-15R

is a high-class voltage converter designed by a renowned brand Victron Energy, which is perfect for off-grid systems and mobile applications such as campers, boats, and photovoltaic installations. With a 24V power supply and 375W of continuous power, this device provides a stable 120V AC power supply that meets the needs of users looking for a reliable power source in places where access to traditional grids is limited or unavailable.
The Phoenix inverter is equipped with a standard socket NEMA 5-15R, allowing you to connect a wide range of electrical devices, ensuring their proper and safe operation. The advanced technology used in this model ensures full compatibility with modern devices while minimizing energy loss, which translates into maximum efficiency and optimal energy consumption. Steel frame and plastic housing in blue (RAL 5012) create a durable structure that is resistant to mechanical damage and the impact of difficult weather conditions, which is extremely important for mobile use.

Versatility and energy-saving technology

The Phoenix converter offers impressive energy efficiency of 89%, which is the result of advanced engineering that ensures every watt of energy is used as efficiently as possible. This is especially important for battery- and solar-powered systems, where every energy saving is crucial. Furthermore, the Phoenix inverter is equipped with ECO mode which intelligently manages energy consumption, reducing power consumption to 1.4 W in sleep mode. This extends the system's operating time and saves energy, which is beneficial both economically and ecologically.
This model is also remotely controllable, offering full configuration flexibility. Using an additional VE.Direct interface and compatible communication modules, the user has full control over the converter's operation and can continuously monitor its parameters and battery status. In situations where changing operating conditions require quick adjustments, remote control becomes an invaluable tool. VE.Direct Interface allows for full configuration of parameters such as low battery cut-off voltage or dynamic load-dependent cut-off, which increases the safety and reliability of the entire system.

Pure sinusoidal voltage - ideal for sensitive devices

One of the key aspects that distinguishes the converter Victron Phoenix, is to generate a purely sinusoidal output voltage. This allows for the safe connection of sensitive electronic devices such as computers, printers, or even electric motors, without the risk of damage or disruption to their operation. This technology, based on a built-in transformer, ensures that the voltage generated by the converter is stable and reliable, making it an ideal solution for those who value high-quality and secure power supply.

Technical specifications

• Model: Phoenix 24/375 VE.Direct NEMA 5-15R


• Continuous power at 25°C: 375VA


• Continuous power at 25°C / 40°C: 300W / 260W


• Instantaneous power: 700 W


• AC output voltage/frequency (adjustable): 230VAC or 120VAC +/- 3%, 50Hz or 60Hz +/- 0.1%


• Input voltage: 18.4 - 34 V


• Low Voltage Disconnect (Adjustable): 18.6 V


• Dynamic low DC shutdown (load dependent, fully configurable): Dynamic cutoff


• Low battery alarm (adjustable): 21.8 V


• Battery charge detection (adjustable): 28.0V


• Maximum efficiency: 89%


• No-load power consumption: 6.1 W


• Power consumption no load ECO: 1.4 W

• Material and color: Steel frame and plastic housing (blue RAL 5012)


• Battery connection: Screw connections


• Maximum cable cross-section: 10mm² / AWG8

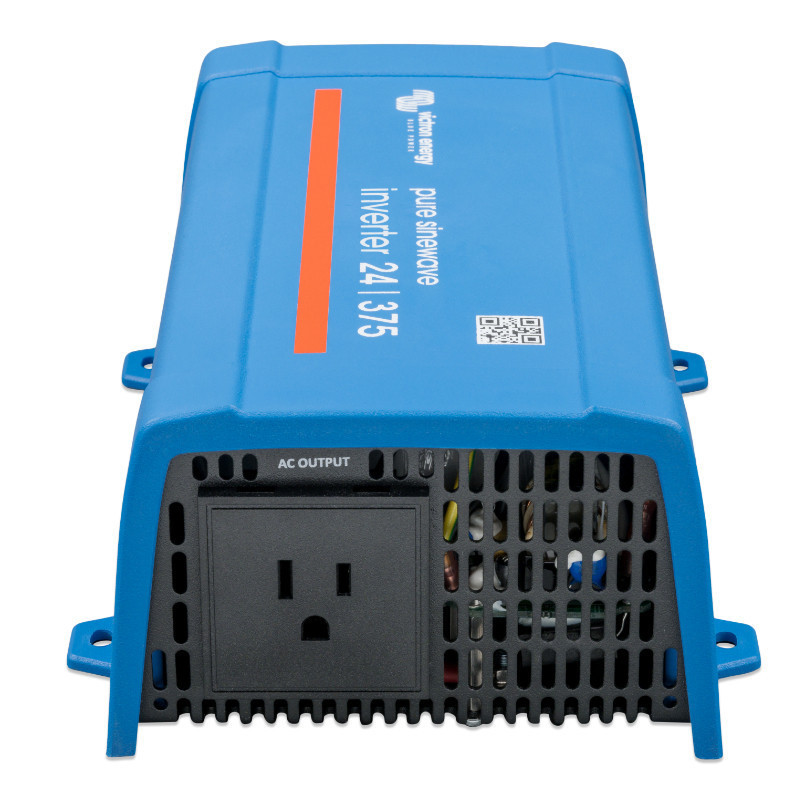

• Standard AC outlets: NEMA 5-15R


• Protection category: IP 21


• Libra: 3.0 kg


• Dimensions: 85 x 182 x 260 mm

• Remote on/off: Yes


• Automatic transfer switch: Filax

• Safety standards: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)


• EMC standards: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3


• Vehicle Directive: ECE R10-4

Converter Victron Phoenix 24/375 VE.Direct NEMA 5-15R This reliable and versatile solution is ideal for off-grid systems and mobile applications. Thanks to its high efficiency, ECO mode, and remote control capabilities, it ensures optimal energy efficiency and full control over the power system. This device will meet the expectations of even the most demanding users, providing a reliable source of energy in any location and under any conditions.
