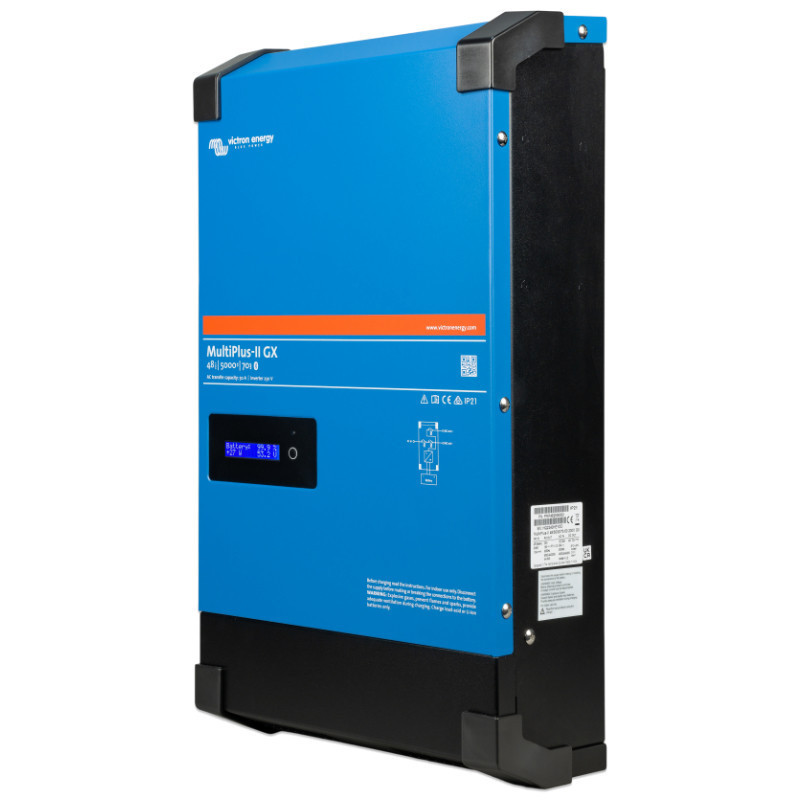

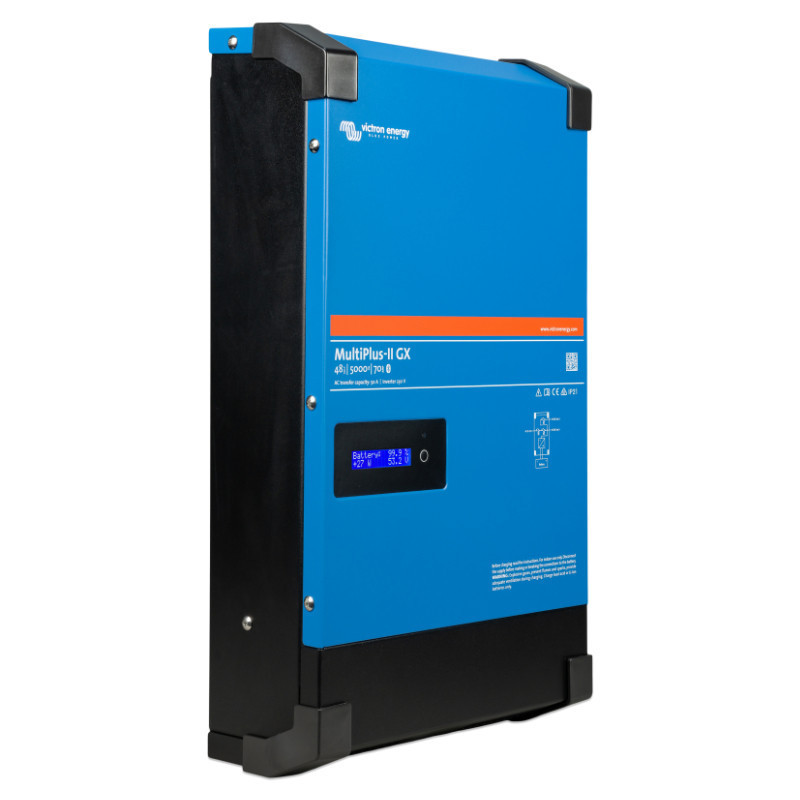

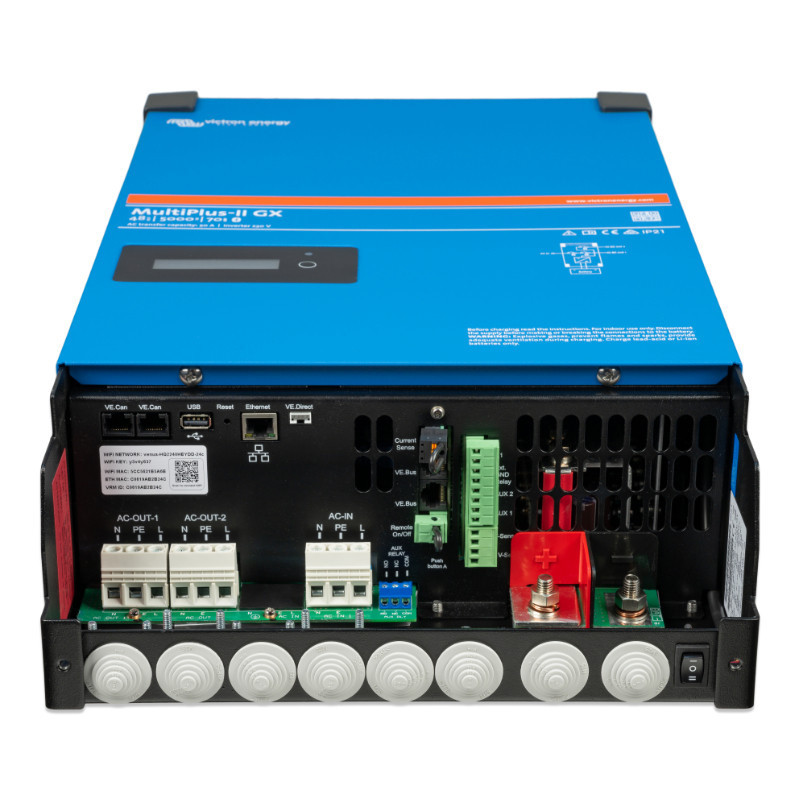

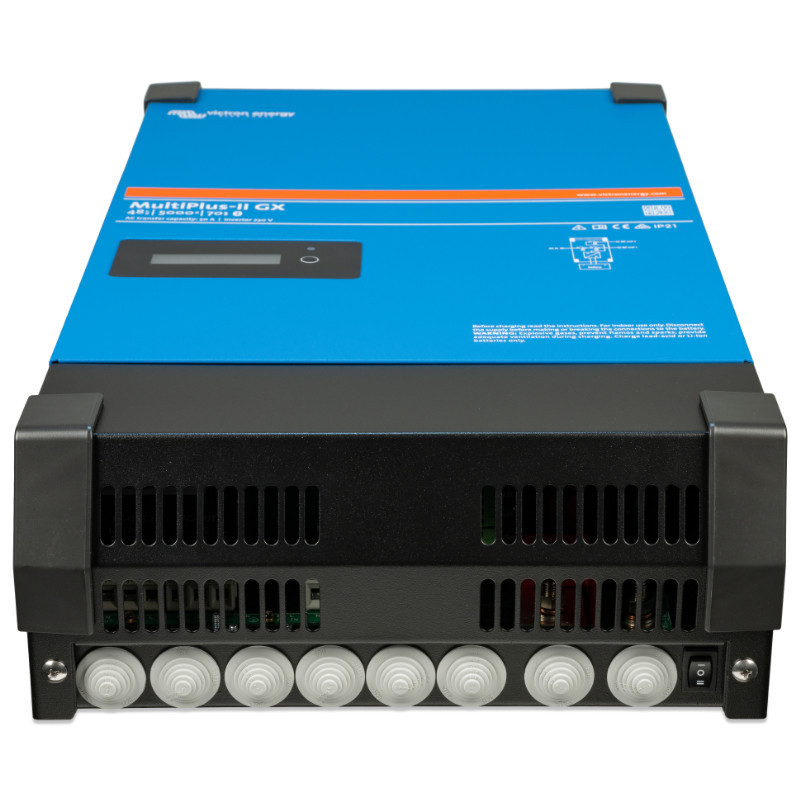

MultiPlus-II 48/5000 70-50-GX

brands Victron Energy is a device that stands out not only for its advanced technology, but also for its wide range of functions that make it an ideal solution for both homes and businesses. Thanks to the combination of functions sine wave inverter and battery chargers with adaptive charging technology, the MultiPlus-II GX provides users with unparalleled flexibility and reliability. The device is equipped with technology PowerControl and PowerAssist, which allows for effective power management and compensation to avoid overload. Furthermore, it can be a key element in more advanced installations, such as energy storage systems (ESS), enabling cooperation with MPPT solar chargers and Grid-tie PV inverters.
Thanks built-in GX management system, MultiPlus-II GX offers full control over the system via WiFi and Ethernet, allowing remote monitoring and energy management via the platform Victron Remote Management (VRM) Users can analyze energy consumption data from anywhere in the world, making this solution particularly attractive to those who value convenience and control over their energy resources. Furthermore, thanks to the integrated GX interface, users don't need to worry about additional devices, significantly simplifying the installation and management process.

Integrated Functionality and Three-Phase Operation Capability

One of the key features MultiPlus-II GX is its ability to operate in a three-phase configuration. This option allows the device to work with other units, allowing for efficient power distribution in a variety of applications – from home installations to advanced industrial solutions. Furthermore, the MultiPlus-II GX is equipped with numerous protective features, such as battery temperature monitoring, ensuring safe and long-term operation of the device. Victron Energy The manufacturer also ensured a compact and robust design – the device is made of high-quality steel, and its elegant blue color adds a modern touch to any installation.
This device is also an excellent choice for those looking to create an ESS (Energy Storage System). Thanks to its compatibility with external energy meters and real-time monitoring capabilities, the MultiPlus-II GX provides a universal solution for a wide range of applications. Thanks to its exceptional performance, the device can operate even in harsh temperature conditions, making it reliable for long-term use.

Technical Specifications

• Parameters / Model: MultiPlus-II GX 48V 5000/70-50


• PowerControl / PowerAssist: Yes


• Transfer switch: 50 A


• Maximum AC input current: 50 A


• Auxiliary output: Yes (32A)

• Input voltage range (V DC): 38 - 66 V


• Output voltage: 230VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25°C: 5000 VA


• Output power at 25°C: 4000 W


• Output power at 40°C: 3700 W


• Output power at 65°C: 3000 W


• Maximum apparent supply power: 5000 VA


• Peak power: 9000 W


• Maximum performance: 96%


• Zero load power: 18 W


• Zero load power in AES mode: 12 W


• Zero load power in search mode: 2 W

• AC input: Input voltage range: 187-265 VAC


• Input frequency: 45 - 65 Hz


• Absorption charging voltage: 57.6V


• Float charging voltage: 55.2V


• Storage mode: 52.8V


• Maximum battery charging current: 70 A


• Battery temperature sensor: Yes

• Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi


• External AC sensor (optional): 100 A


• Programmable relay: Yes


• Security: a - g


• VE.Bus communication port: For parallel (not applicable to 8k, 10k and 15k models) and three-phase operation, remote monitoring and system integration


• General purpose communication port: Yes, 2x


• Remote on/off: Yes


• Operating temperature range: -40 to +65°C (fan assisted cooling)


• Humidity (non-condensing): maximum 95%

• Material and color: Steel, blue RAL 5012


• Protection category: IP22


• Battery connection: Four M8 screws


• 230 V AC connection: Screw terminals 13 mm² (6 AWG)


• Libra: 31 kg


• Dimensions (mm): 565 x 323 x 148 mm

This device meets the expectations of even the most demanding users, offering efficiency, versatility, and ease of use. Thanks to advanced energy management features, it is an ideal solution for energy storage systems and installations requiring continuous, reliable operation. Its integrated management system and remote monitoring and management capabilities make this device unique in the energy market.
