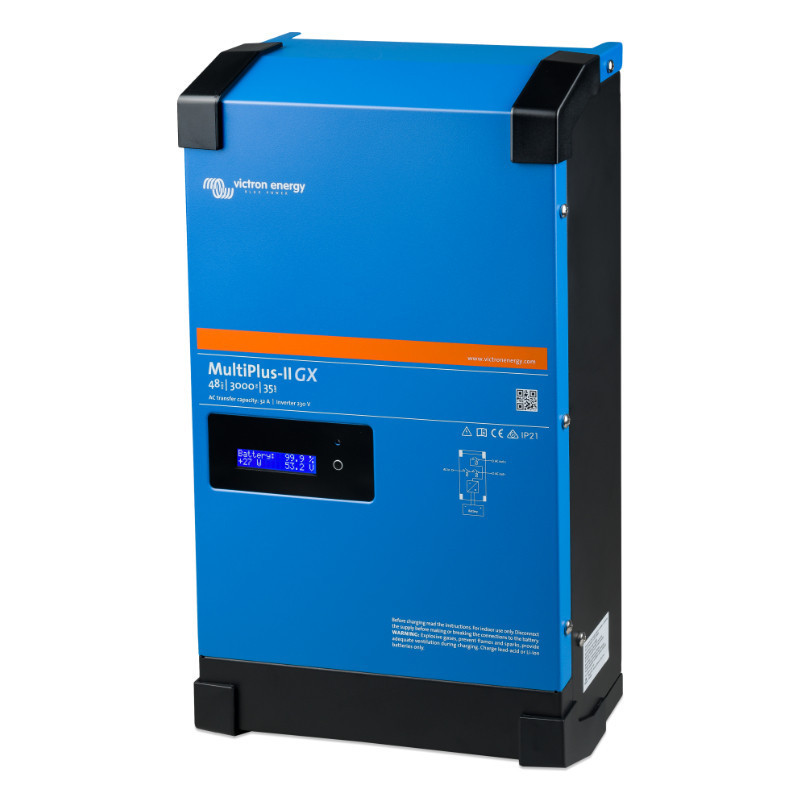

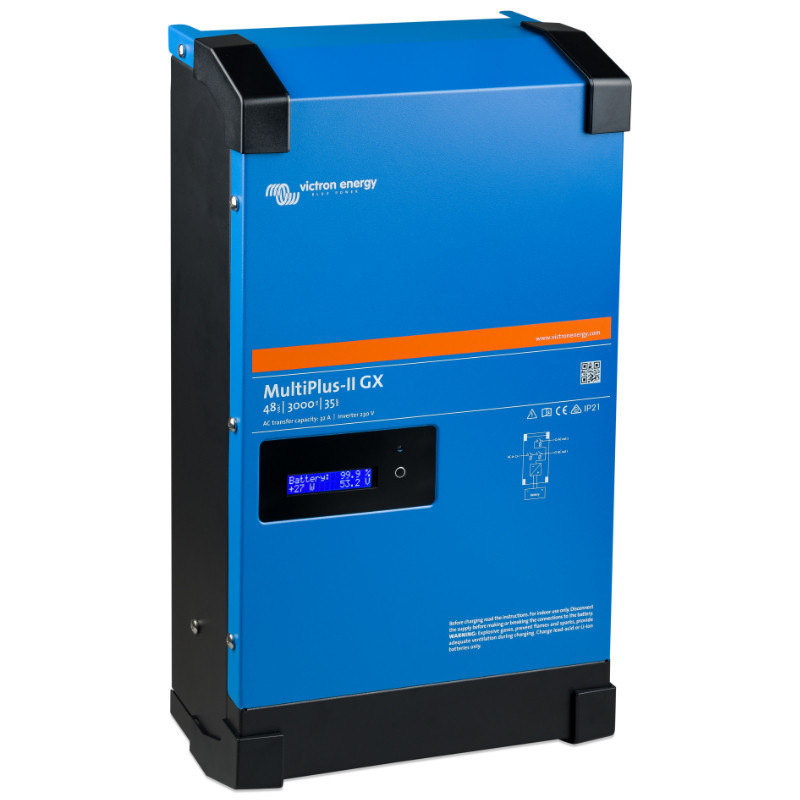

MultiPlus-II 48 / 3000 35-32 GX

is a modern multifunctional device that combines advanced inverter and charger technology. Thanks to its technology support PowerControl and PowerAssist The MultiPlus-II prevents power source overload, ensuring optimal energy management in both home and industrial systems. It is a key component of energy storage systems. ESS (Energy Storage System) that integrates with MPPT solar chargers and inverters Grid-tie PV, enabling efficient management of renewable energy.
One of the most distinctive features of the MultiPlus-II GX is the built-in management system GX which enables full monitoring and remote management via Wi-Fi and Ethernet Thanks to integration with the portal VRM (Victron Remote Management), users can monitor their energy system from anywhere in the world, making this device exceptionally flexible and functional.
The MultiPlus-II GX also offers three-phase operation, making it an excellent choice for larger installations, ensuring efficient and sustainable energy management in a wide range of applications, from residential systems to industrial ones. With its built-in management system and advanced functionality, this device offers everything needed to meet the demands of modern energy installations.

Key Features

• Integrated charger and inverter: Compact design combining both devices in one system, saving space and installation time.


• Embedded GX management system: Enables remote monitoring and control via Wi-Fi and Ethernet via the VRM portal.


• Operation in a three-phase system: Ensures efficient energy management in larger installations, enabling even load distribution.

Specification

• PowerControl / PowerAssist: Yes


• Transfer switch: 50 A


• Maximum AC input current: 50 A


• Auxiliary output: Yes (32A)

Inverter

• Input voltage range (V DC): 38 - 66 V


• Output voltage: 230VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25°C: 3000 VA


• Output power at 25°C: 2400 W


• Output power at 40°C: 2200 W


• Output power at 65°C: 1700 W


• Maximum apparent supply power: 3000 VA


• Peak power: 5500 W


• Maximum performance: 95%


• Zero load power: 11 W


• Zero load power in AES mode: 7 W


• Zero load power in search mode: 2 W

Charger

• AC input



  • Input voltage range: 187-265 VAC


  • Input frequency: 45 - 65 Hz






• Absorption charging voltage: 57.6V


• Float charging voltage: 55.2V


• Storage mode: 52.8V


• Max battery charging current: 35 A


• Battery temperature sensor: Yes

General

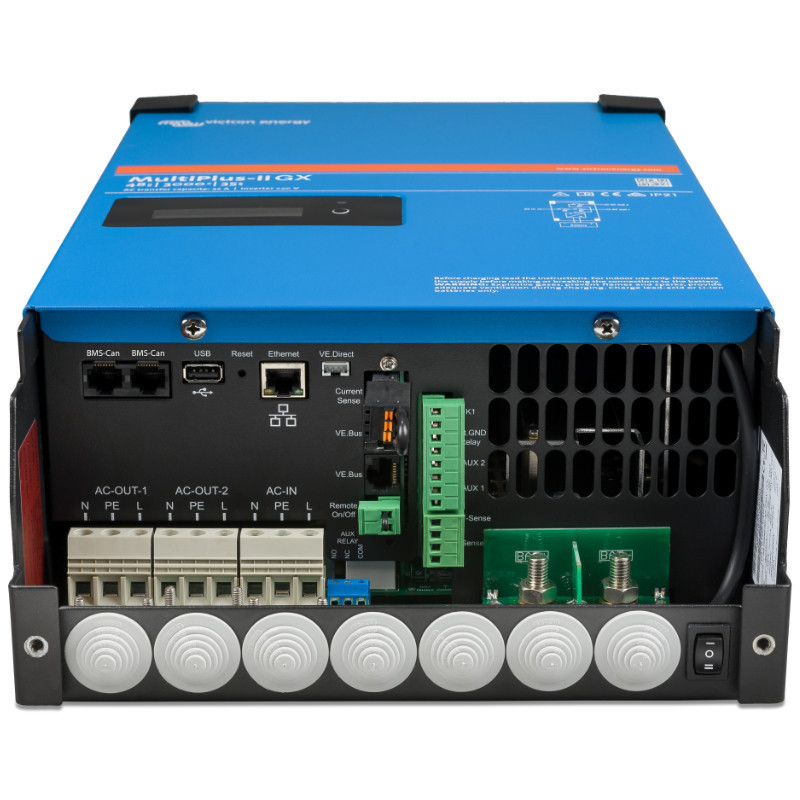

• Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi


• External AC Sensor (Optional): 50A


• Programmable relay: Yes


• Security: a - g


• VE.Bus communication port: For parallel and three-phase operation, remote monitoring and system integration


• General Purpose Communication Port: Yes, 2x


• Remote on/off: Yes

Characteristic features

• Operating temperature range: -40 to +65°C (fan assisted cooling)


• Humidity: Max 95% (non-condensing)


• Material and color: Steel, blue RAL 5012


• Protection category: IP22


• Battery connection: Four M8 screws


• 230 V AC connection: Screw terminals 13 mm² (6 AWG)

Weight and dimensions

• Libra: 20 kg


• Dimensions (mm): 506 x 275 x 147 mm

This advanced inverter and charger is ideal for energy storage systems, thanks to its PowerControl and PowerAssist features that protect against overloads. The built-in GX management system with Wi-Fi and Ethernet allows remote monitoring and control of the system from any location. The device is also compatible with three-phase installations, making it a versatile solution for homes, businesses, and industrial applications.
