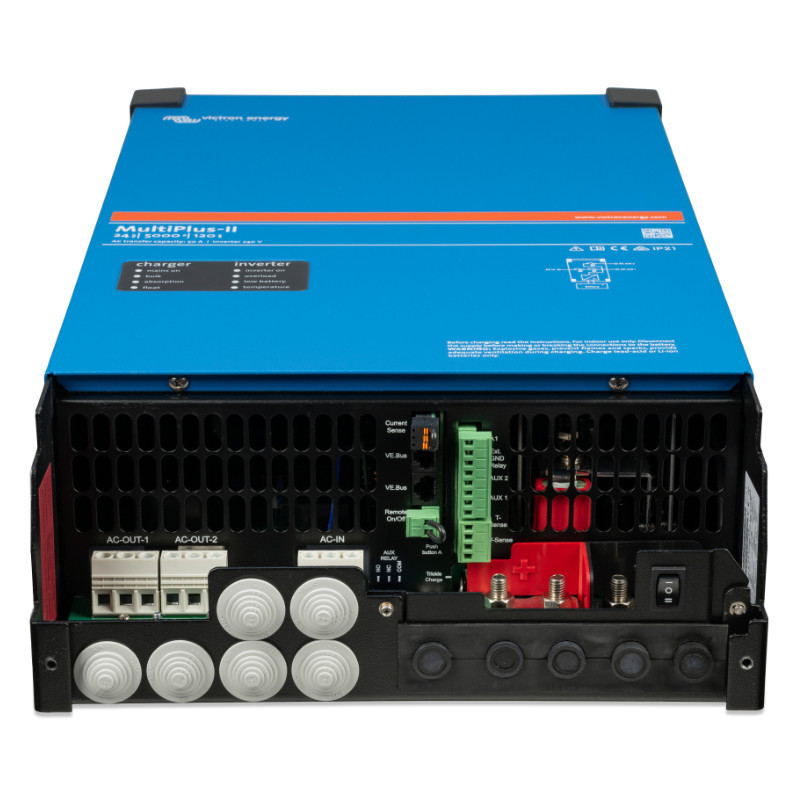

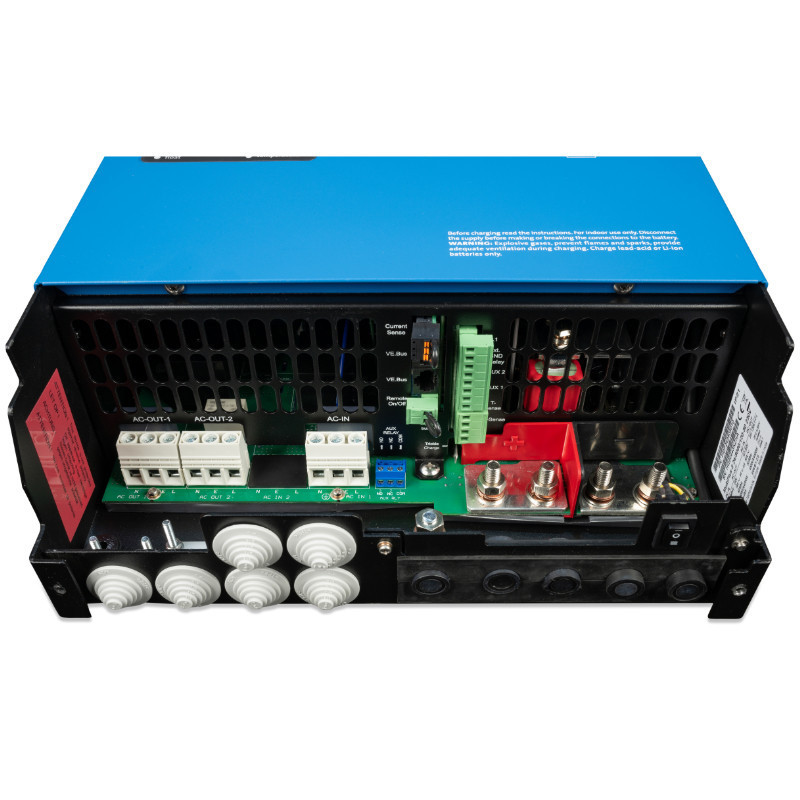

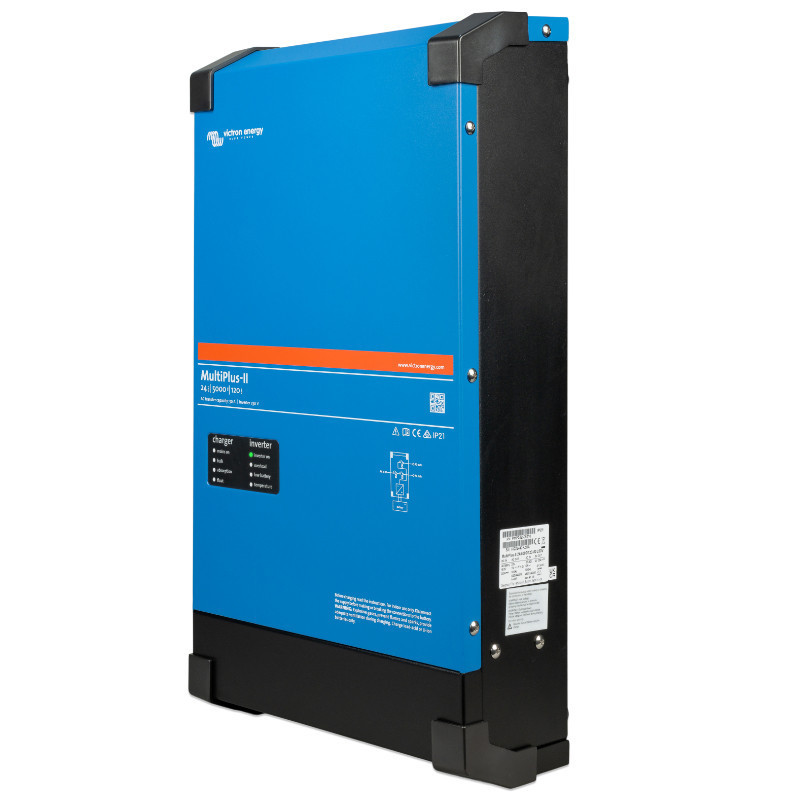

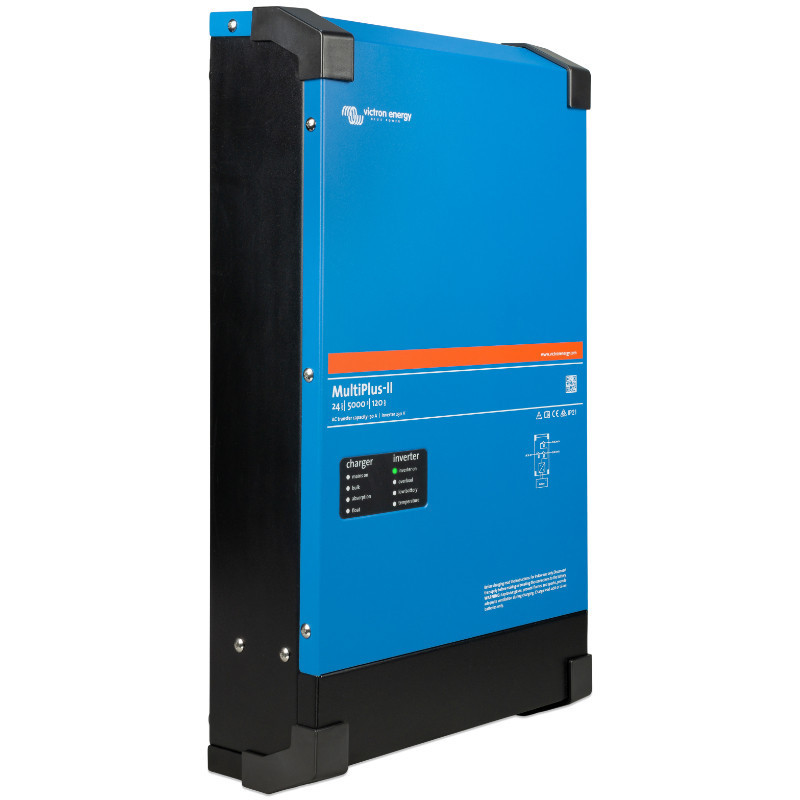

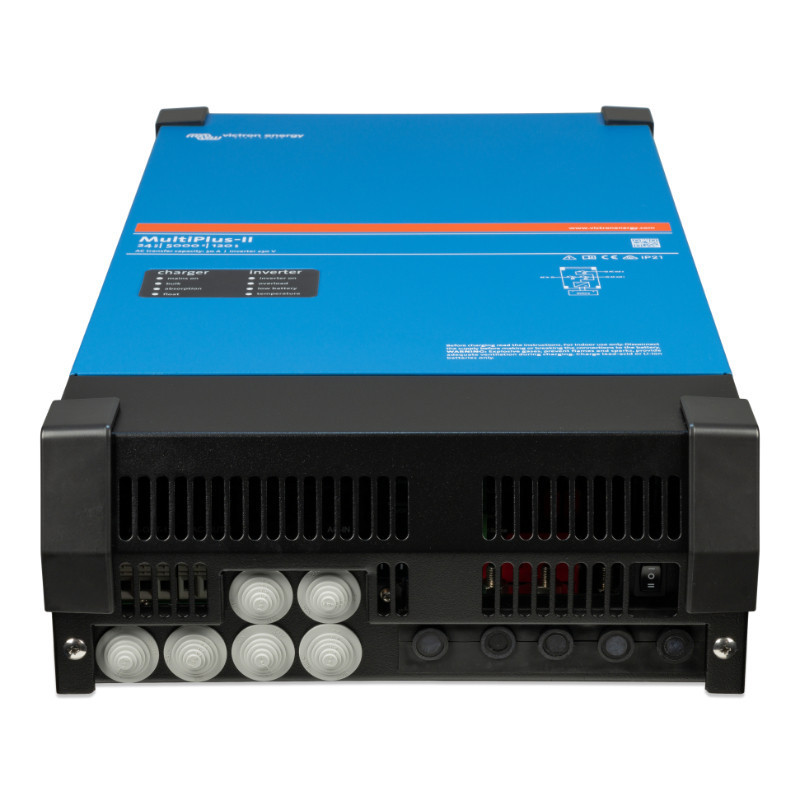

MultiPlus-II 24V 5000 120-50

This innovative, multi-function device combines an advanced inverter, battery charger, and fast transfer switch. It's the ideal solution for those seeking an efficient power system for both home and mobile installations, such as campers and boats. Using the latest technology, the MultiPlus-II offers intelligent energy management and overload protection.

Key Features of MultiPlus-II 24/5000/120-50

PowerControl and PowerAssist - Intelligent Power Management

The device is equipped with functions PowerControl and PowerAssist which automatically adjusts the battery charge level in the event of a power source overload. PowerAssist also provides additional battery power when energy demand exceeds the capacity of the grid or generator, ensuring uninterrupted system operation.

Trouble-free Operation with Energy Storage Systems (ESS)

The MultiPlus-II is an ideal component for energy storage systems (ESS). Its compatibility with MPPT solar chargers and grid-tie PV inverters allows for efficient solar energy storage and optimal use in off-grid systems. This allows for minimizing electricity costs and fully utilizing renewable energy sources.

Remote Monitoring and Control

The device can be connected to a remote monitoring system using Cerbo GX or other compatible GX devices. Thanks to the portal VRM and a free app, MultiPlus-II offers complete control of your system from anywhere in the world. Whether you're at home or on the go, you can monitor and manage your energy consumption and respond to changes in real time.

Technical Specifications

• Model: MultiPlus-II 24V 5000/120-50


• PowerControl / PowerAssist: Yes


• Transfer switch: 50 A


• Maximum AC input current: 50 A

Inverter

• Input voltage range (V DC): 19-33 V


• Output voltage: 230 VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25°C: 5000 VA / 4000 W


• Output power at 40°C: 3700 W


• Output power at 65°C: 3000 W


• Maximum apparent supply power: 5000 VA


• Peak power: 9000 W


• Maximum performance: 96%


• Zero load power: 18 W


• Zero load power in AES mode: 12 W


• Zero load power in search mode: 2 W

Charger

• Input voltage range (AC): 187-265 VAC


• Input frequency: 45 - 65 Hz


• Absorption charging voltage: 28.8V


• Float charging voltage: 27.6V


• Storage mode: 26.4V


• Maximum battery charging current: 120 A


• Battery temperature sensor: Yes

General

• Auxiliary output: Yes (32A)


• External AC Sensor (Optional): 50 A or 100 A


• Programmable relay: Yes


• Security: Overload, short circuit, over discharge, overheating etc.


• VE.Bus communication port: For parallel and three-phase operation, remote monitoring and system integration


• General purpose communication port: Yes, 2x


• Remote on/off: Yes


• Operating temperature range: -40°C to +65°C (fan assisted cooling)


• Humidity (non-condensing): Maximum 95%

Other

• Material and color: Steel, blue RAL 5012


• Protection category: IP22


• Battery connection: Four M8 screws


• 230 V AC connection: Screw terminals 13 mm² (6 AWG)


• Libra: 30 kg


• Dimensions: 607 x 330 x 149 mm

The MultiPlus-II 24/5000/120-50 is a versatile energy management device suitable for both home and mobile systems. With advanced power management features and full compatibility with ESS systems, it offers flexibility and reliability. Furthermore, remote monitoring and control ensure complete control of the system at all times, making it an excellent choice for modern energy installations.
