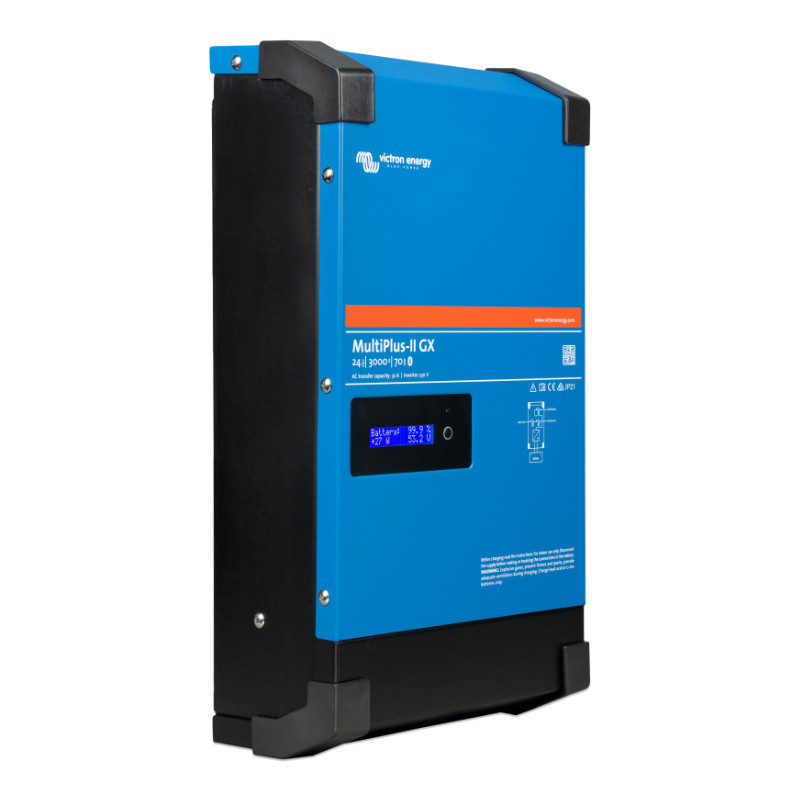

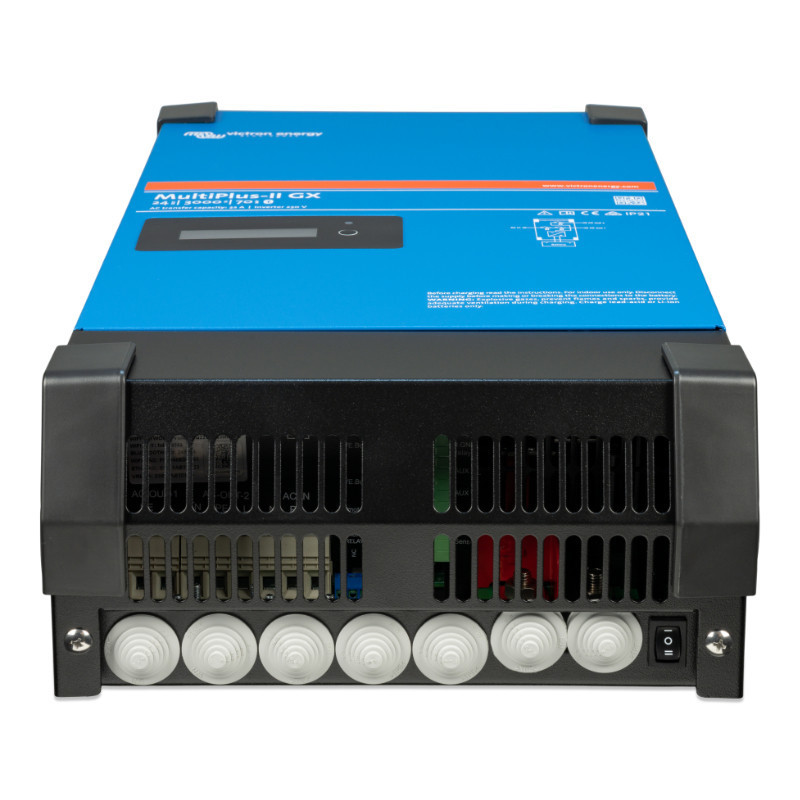

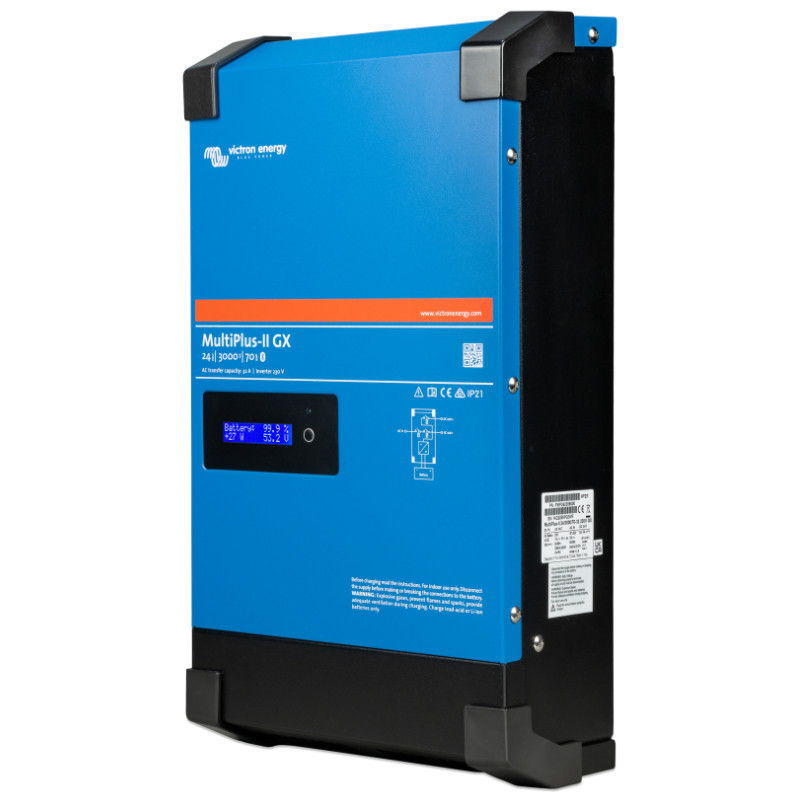

MultiPlus-II 24/3000 70-32 GX

Model MultiPlus-II GX 24V 3000VA 70A-32A Victron Energy is a technologically advanced device that combines the functions of a pure sine wave inverter and a battery charger. This device is ideal for both home and industrial systems, offering reliable power and integrating with ESS energy storage systems. It can easily manage surplus energy, such as from photovoltaic installations, ensuring efficient use of resources.
MultiPlus-II GX is a solution that integrates functions PowerControl and PowerAssist, automatically managing power consumption to prevent network overload. It is particularly useful in systems ESS (Energy Storage System), enabling efficient energy management in a variety of applications, from home to commercial. Thanks to the built-in system GX, it is possible to remotely control and monitor the device via WiFi or Ethernet, which provides full control over energy consumption.

Key Features of the MultiPlus-II GX

1. Integrated inverter and charger - MultiPlus-II GX combines the functions of an advanced sine wave inverter and charger with adaptive battery charging technology, ensuring efficient and trouble-free operation in power systems.


2. Remote monitoring and management - Built-in system GX enables remote access to device performance data via Wi-Fi or Ethernet. Users can control and analyze their systems using the platform. VRM (Victron Remote Management).


3. Support for three-phase systems - The MultiPlus-II GX offers three-phase operation, making it an ideal choice for larger installations requiring efficient power distribution.


4. Support for Energy Storage Systems (ESS) - The device has been designed for integration with energy storage systems, enabling efficient storage and use of solar and grid energy.

Specification

• PowerControl / PowerAssist: Yes


• Transfer switch: 32 A


• Maximum AC input current: 32 A


• Auxiliary output: Yes (32A)

Inverter

• Input voltage range (V DC): 19 - 33 V


• Output voltage: 230VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25°C: 3000 VA


• Output power at 25°C: 2400 W


• Output power at 40°C: 1700 W


• Output power at 65°C: 3000 VA


• Maximum apparent supply power: 5000 VA


• Peak power: 5500 W


• Maximum performance: 94%


• Zero load power: 13 W


• Zero load power in AES mode: 9 W


• Zero load power in search mode: 3 W

Charger

• Input voltage range: 187-265 VAC


• Input frequency: 45 - 65 Hz


• Absorption charging voltage: 28.8V


• Float charging voltage: 27.6V


• Storage mode: 26.4V


• Maximum battery charging current: 70 A


• Battery temperature sensor: Yes

General

• Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi


• External AC sensor (optional): 50A


• Programmable relay: Yes


• Security: a - g


• VE.Bus communication port: For parallel and three-phase operation, remote monitoring, system integration


• General Purpose Communication Port: Yes, 2x


• Remote on/off: Yes

Characteristic features

• Operating temperature range: -40 to +65°C (fan assisted cooling)


• Humidity (non-condensing): Max 95%

Other

• Material and color: Steel, blue RAL 5012


• Protection category: IP22


• Battery connection: Four M8 screws


• 230 V AC connection: Screw terminals 13 mm² (6 AWG)


• Libra: 20 kg


• Dimensions: 506 x 275 x 147 mm

This versatile device combines inverter and charger functions, ideal for power management in both residential and commercial installations. With the built-in GX management system and Wi-Fi remote control, it offers advanced monitoring and control features. PowerControl and PowerAssist effectively optimize power, preventing overloads and ensuring reliable operation even in the most demanding conditions.
