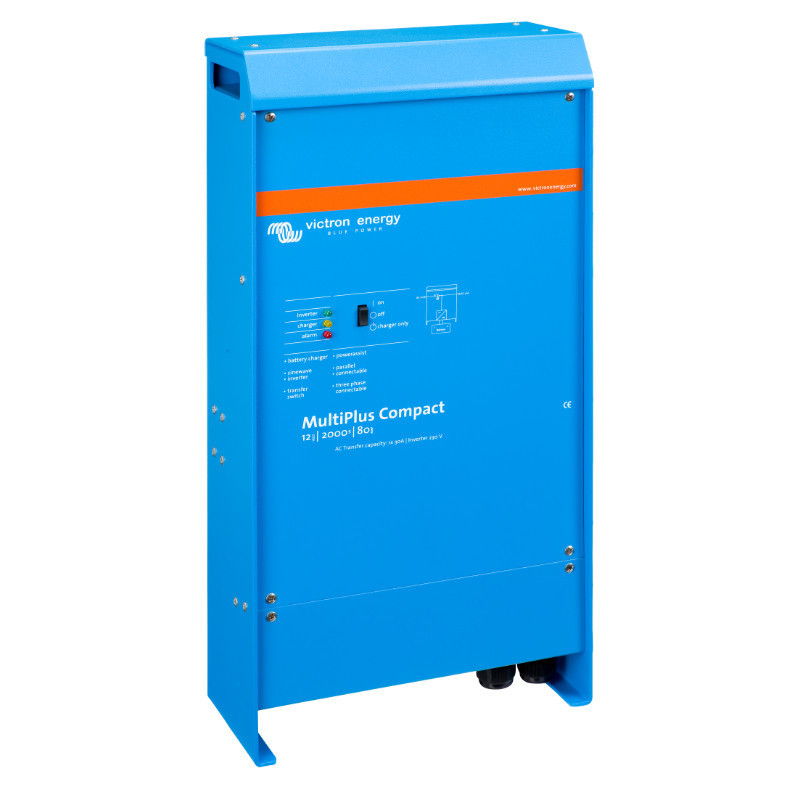

MultiPlus C 12 / 2000 80-30

is an advanced device combining the functions of a voltage converter and charger, designed for maximum efficiency in a small, compact housing. Operating with voltage 12V and offering power 2000 VA, this device is an ideal choice for powering systems in recreational vehicles, boats, and small power installations. Integrated charger 80A ensures fast and efficient battery charging GEL, AGM and LiFePO4, which enables stable power supply for electrical devices.
Thanks to the function PowerAssist, the device can combine power from the grid and batteries to support the electrical grid during times of higher demand. This is an ideal solution for users who need a reliable, mobile power system that not only meets technical requirements but also adapts to specific installation conditions.

Perfect Power for Every Occasion

is more than a standard converter. Thanks to its extensive functions UPS, the device ensures smooth and uninterrupted power supply in emergency situations by automatically switching to battery power. This means users can be sure that their electronic devices will continue to operate without disruption, even during power outages.
The device is also an excellent choice for energy storage systems, especially in combination with photovoltaic installations. The MultiPlus Compact converts solar energy and stores it in batteries, ensuring constant access to energy 24/7. Its compact design and ease of installation make it an excellent solution for areas with limited space.

Main Advantages

Dual AC outputs for better control

The MultiPlus Compact offers two independent AC outputs. The first output ensures continuous power to critical devices, even during a utility power outage. The second output activates only when utility power is available, enabling more efficient battery power management. This allows users to better control which devices receive priority power.

Three-phase operation for demanding applications

By connecting three MultiPlus Compact units, the device can operate in three-phase mode, making it ideal for systems requiring higher power. This solution is particularly useful in more advanced installations where reliability and power stability are key.

Optimized space thanks to compact dimensions

One of the MultiPlus Compact's greatest strengths is its compact design. Designed for easy installation in tight spaces, the device is suitable for both campervans and smaller utility rooms. This allows users to enjoy advanced power technology even where space is limited.

The perfect solution for energy storage systems

The MultiPlus Compact is an excellent solution for those building energy storage systems, especially in conjunction with renewable energy sources such as photovoltaics. The device not only converts energy but also stores it, allowing for continuous power even at night or during power outages.

Unique Features of the MultiPlus Compact

PowerAssist - power always under control

The MultiPlus Compact intelligently supports the power grid during periods of increased demand. PowerAssist allows for battery recharge in the event of grid overload, preventing system failure. This is a key feature for systems with limited power sources, such as generators or shore power.

Remote monitoring and control from anywhere

Thanks to integration with devices GX, MultiPlus Compact allows for full monitoring and control of the installation locally or remotely. Via the app VRM, users can monitor their energy systems from anywhere in the world, ensuring complete control and security.

Uninterrupted power supply thanks to the UPS function

In the event of a sudden mains outage or power failure, the MultiPlus Compact automatically switches to battery power, ensuring continuous operation of connected devices. Thanks to its fast response time (less than 20 milliseconds), devices such as computers and medical equipment continue to operate without disruption.

Unlimited power through parallel operation

For greater power, up to six MultiPlus Compact units can operate in parallel. Parallel, three-phase, or split-phase configurations provide installation versatility, allowing you to build a system perfectly tailored to your individual needs.

Technical Specifications

Parameters / Model:

• Model: MultiPlus 12V Compact 12/2000/80-30


• PowerControl / PowerAssist: Yes


• Transfer switch: 30 A

Inverter:

• Input voltage range (V DC): 9.5 - 17 V


• Output voltage: 230VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25°C (VA): 2000 VA


• Output power at 25°C (W): 1600 W


• Output power at 40°C (W): 1400 W


• Output power at 65°C (W): 1000 W


• Peak power: 4000 W


• Maximum performance: 93%


• Zero load power: 9 W


• Zero load power in AES mode: 7 W


• Zero load power in search mode: 3 in

Charger:

• AC Input: Input voltage range: 187-265 VAC


• Input frequency: 45 - 65 Hz


• Power factor: 1


• Absorption charging voltage: 14.4V


• Float charging voltage: 13.8V


• Storage mode: 13.2V


• Maximum battery charging current: 80 A


• Charging the starter battery: 4 A


• Battery temperature sensor: Yes

General:

• Auxiliary output: nd


• Programmable relay: Yes


• Security: a - g


• VE.Bus communication port: For parallel and three-phase operation, remote monitoring and system integration


• General purpose communication port: nd


• Remote on/off: Yes


• Operating temperature range: -40 to +65°C (fan-assisted cooling)


• Humidity (non-condensing): max 95%

Other:

• Material and color: Aluminum, blue RAL 5012


• Protection category: IP 21


• Battery connection: M8 screws

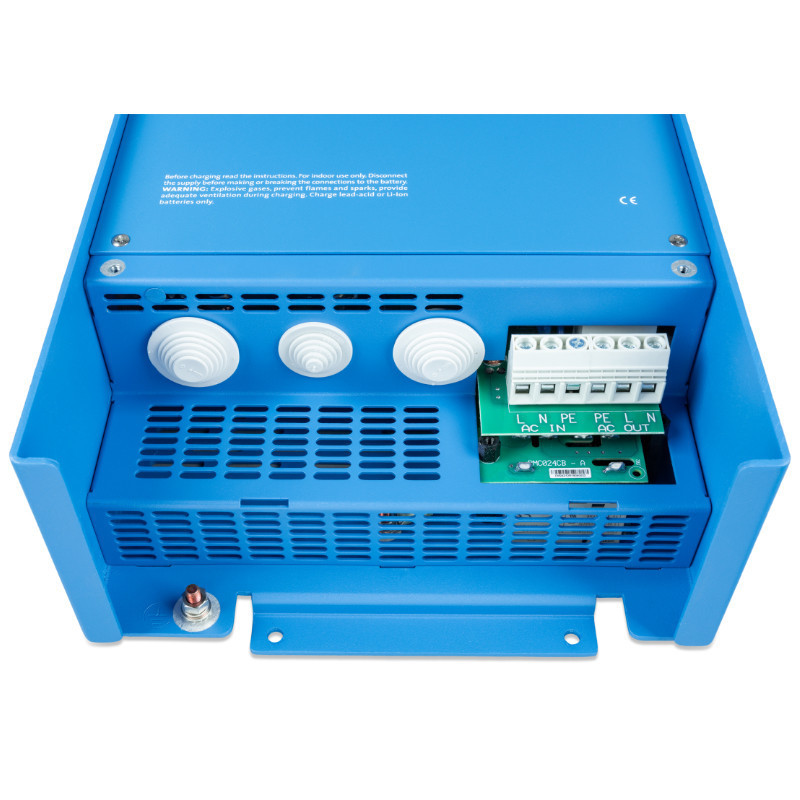

• 230V AC connection: Spring clamp


• Libra: 12 kg


• Dimensions: 520 x 255 x 125 mm

is a device that combines advanced features, performance and compact design, making it an ideal choice for users who value reliability and flexibility in energy management.
