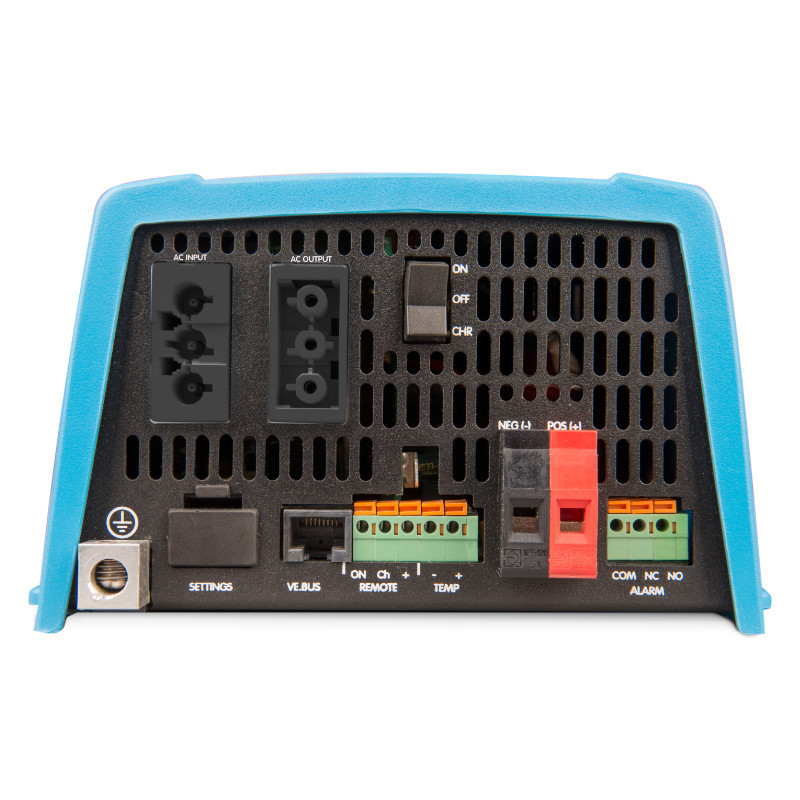

MultiPlus 24 / 800 16-16

is an exceptionally advanced device that combines the functions of a converter and battery charger, ensuring uninterrupted and stable power supply in every situation. power 800VA and advanced energy management, MultiPlus is the ideal solution for both campervans and stationary installations, offering independence from the traditional power grid. Integrated internet monitoring and management capabilities mean this system not only provides energy but also full control over its distribution.
Thanks UPS Emergency Power Supply function MultiPlus ensures uninterrupted operation of critical devices such as computers and medical systems. Automatic switchover to emergency mode occurs in just 20 milliseconds, meaning your devices won't experience any interruption even in the event of a power outage. Furthermore, advanced adaptive charging technology effectively adapts the battery charging process to current needs, ensuring maximum energy efficiency and longer system life.

Innovative energy management at your fingertips

The MultiPlus is more than just a converter and charger. Thanks to its partnership with Cerbo GX, you can monitor energy consumption, battery charge level, and other key parameters in real time, from anywhere in the world. This is an ideal solution for people who want full control over their power system, regardless of their location. Remote management is not only convenient, but also an additional level of security, allowing you to respond to potential problems before they affect your devices.
MultiPlus also stands out for its power versatility - it can operate in systems 12V, 24V and 48V, making it ideal for both small home installations and large industrial systems. High output power, up to 1600W peak power, ensures stable operation even under heavy loads. The device is compatible with various energy sources, including photovoltaic systems, allowing for the efficient use of renewable energy sources.

Exceptional reliability and battery care

When it comes to power devices, reliability is key, and MultiPlus 24/800/16-16 meets the highest standards in this field. Thanks intelligent adaptive charging system, the device automatically adjusts charging parameters to the condition and usage of the battery. This not only extends its lifespan but also minimizes the risk of failure. Additionally, PowerAssist system supports the network during periods of high load by automatically increasing power, which prevents overloads.
Victron Energy MultiPlus is also extremely scalable - the ability to work in the system three-phase and parallel makes it adaptable to virtually any installation. This means that no matter the size of your power system, the MultiPlus will be perfectly suited to its purpose, offering unparalleled performance and flexibility.

Technical specifications

• Model: MultiPlus 24V 800VA 16A-16A


• PowerControl / PowerAssist: Yes


• Three-phase and parallel operation: Yes


• Transfer switch: 16 A

• Input voltage range (V DC): 9.5 - 17 V


• Output voltage: 230VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25ºC (VA): 800 VA


• Output power at 25ºC (W): 700 W


• Output power at 40ºC (W): 650 W


• Output power at 65ºC (W): 400 W


• Peak power (W): 1600 W


• Maximum efficiency (%): 93


• Zero load power (W): 7


• Zero load power in AES mode (W): 2

• Input voltage range (AC): 187-265 VAC


• Input frequency: 45 - 65 Hz


• Absorption charging voltage (V DC): 28.8V


• Float charging voltage (V DC): 27.6V


• Storage mode (V DC): 26.4V


• Household battery charging current (A): 25 A


• Battery temperature sensor: Yes


• Current charging of the starter battery: 1 A

• Programmable relay: Yes


• Security: ag


• VE.Bus communication port: Yes (for parallel, three-phase operation, remote monitoring and system integration)



  • (RJ45 splitter ASS030065510 needed for 500 / 800 / 1200 VA models)






• DIP switches: Yes


• Remote on and off: Power on/off/charger only

• Operating temperature range: -40 to +65°C (fan assisted cooling)


• Humidity (non-condensing): max 95%


• Internal DC fuse: 80 A

• Protection category: IP 21


• Battery connection: 16 mm²


• 230 V AC connection: G-ST18i connector


• Libra: 6.4 kg


• Dimensions (mm): 360 x 240 x 100 mm

This modern and versatile device provides uninterrupted and stable power for both home and mobile systems, such as campers. Its advanced energy management features and integration with monitoring systems make the MultiPlus an investment for the future. Whether you need emergency support or want to optimize energy usage, the MultiPlus will be a reliable partner.
