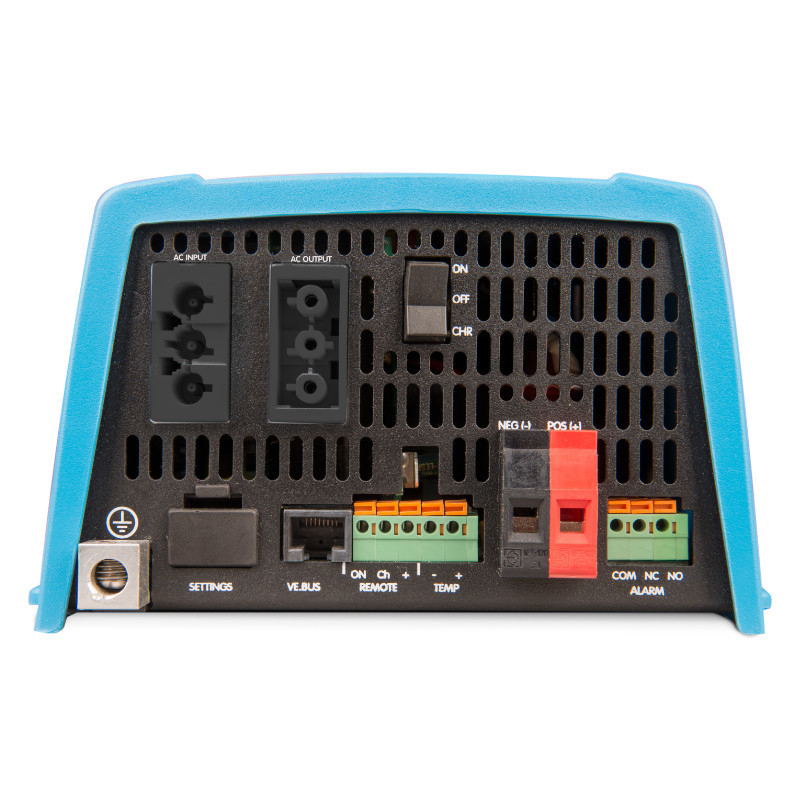

MultiPlus 12 / 800 35-16

The MultiPlus 12/800/35-16 is an advanced 800VA voltage converter designed to deliver stable and reliable power in a variety of conditions, both in mobile and stationary applications. Equipped with a 35A battery charger, it's an excellent choice for UPS and power management systems in campers, boats, homes, and small industrial installations.
Thanks to its web-based management and compatibility with various monitoring systems, the MultiPlus provides complete control over energy consumption and power status from anywhere in the world. Its functionality and compact size make it one of the most modern solutions available on the market.

Why choose MultiPlus?

This is a response to the growing demand for efficient and independent power systems that can operate in a variety of conditions. The device is designed to provide stable and efficient power to all electrical devices, both in mains and emergency situations. The MultiPlus acts as a voltage converter and charger, ensuring batteries are always charged and ready for use while optimizing energy consumption.

Key product features

UPS Emergency Power Supply and Charger

One of the MultiPlus's most important features is its uninterruptible power supply (UPS). In the event of a power outage, the device automatically switches to inverter mode, providing continuous power to connected devices such as computers, medical equipment, and other critical systems. Thanks to fast switching technology, this process occurs in just 20 milliseconds, ensuring uninterrupted operation of devices even in the most demanding situations.
The MultiPlus also serves as an advanced charger, equipped with adaptive charging technology that adapts the process to the current needs of the battery. This ensures maximum charging efficiency and longer battery life.

Online management with Cerbo GX

In the digital age, remote management of energy systems is becoming standard. MultiPlus, in conjunction with the Cerbo GX device, allows for complete system monitoring via the internet. You can monitor power parameters, battery status, and other important data from anywhere in the world via an intuitive interface. This is an ideal solution for homeowners, campers, and small businesses who want complete control over their energy system.

Versatile 800VA power and 12V operation

With 800VA of power, the MultiPlus 12V is the ideal solution for powering a variety of electrical devices. Whether it's a small home installation, a campervan, or a boat system, the MultiPlus performs admirably in a variety of conditions. Its high energy efficiency of 92% and maximum peak power of 1600W make it exceptionally efficient and reliable.

Failure-free and long service life

The MultiPlus is designed for long-term, trouble-free operation. Thanks to its adaptive charging system, the device automatically adjusts the battery charging method, resulting in longer battery life and greater system stability. The ability to operate in three-phase and parallel systems makes the MultiPlus a flexible solution that can be easily scaled and adapted to growing energy needs.

Technical specifications

• Parameters / Model: MultiPlus 12V 800VA 35A-16A


• PowerControl / PowerAssist: Yes


• Three-phase and parallel operation: Yes


• Transfer switch (A): 16 A

Inverter

• Input voltage range (V DC): 9.5 - 17 V


• Output voltage: 230VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25ºC / 77°F (VA): 800 VA


• Output power at 25ºC / 77°F (W): 700 W


• Output power at 40ºC / 104°F (W): 650 W


• Output power at 65ºC / 150°F (W): 400 W


• Peak power (W): 1600 W


• Maximum efficiency (%): 92%


• Zero load power (W): 7 W


• Zero load power in AES mode (W): 2 W

Charger

• Alternating Current (AC) Input: Input voltage range 187-265 VAC


• Input frequency: 45 - 65 Hz


• Absorption charging voltage (V DC): 14.4V


• Float charging voltage (V DC): 13.8V


• Storage mode (V DC): 13.2V


• Household battery charging current (A): 35 A


• Battery temperature sensor: Yes


• Current charging of the starter battery: 1 A

General

• Auxiliary output: Yes


• Programmable relay: NO


• Security: ag


• VE.Bus communication port: For parallel and three-phase operation, remote monitoring and system integration (RJ45 splitter ASS030065510 needed for 500 / 800 / 1200 VA models)


• DIP switches: Yes (6)


• Remote on and off: Power on/off/charger only

Common characteristics

• Operating temperature range: -40 to +65°C (fan assisted cooling)


• Humidity (non-condensing): max 95%


• Internal DC fuse: 150 A

Other

• Protection category: IP 21


• Battery connection: 25 mm²


• 230 V AC connection: G-ST18i connector


• Weight (kg): 6.4 kg


• Dimensions (mm): 360 x 240 x 100 mm

The MultiPlus 12/800/35-16 is an advanced voltage converter and charger that provides reliable power and protects devices in emergency situations. Thanks to its UPS function and remote internet management, the device guarantees complete control of the power system in all conditions. It's the ideal solution for those seeking a versatile, efficient, and easy-to-integrate power system for campers, boats, or small home installations.
