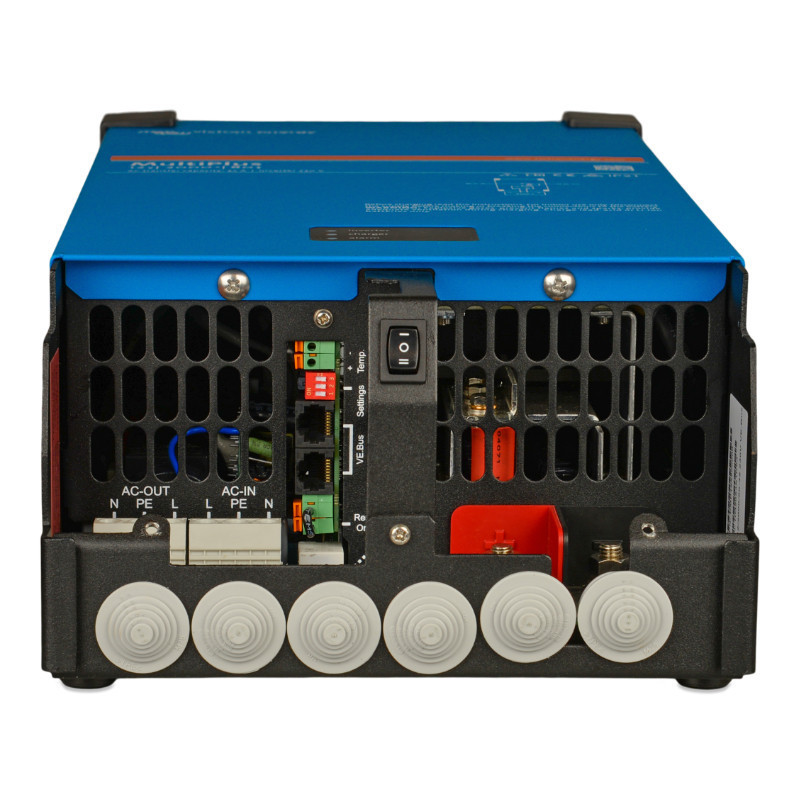

MultiPlus 12 / 2000 80-32

is a versatile power system that combines the functions of a converter and charger in one compact device. Its impressive capabilities make it ideal for both home and mobile applications, including campers and boats. The MultiPlus offers 2000VA of power and 80A charging current, guaranteeing stable and reliable power, even in the most demanding conditions.
One of the device's most important features is its full integration with a UPS system, meaning that in the event of a power outage, MultiPlus automatically switches to battery power in less than 20 milliseconds. This is crucial when ensuring the continuous operation of critical devices such as medical equipment, computers, and other electronic systems. Additionally, adaptive charging technology adjusts the charging current to the needs of the battery, which extends its life and minimizes the risk of failure.
One of the main advantages Victron Energy MultiPlus 12/2000/80-32 is the ability to remotely monitor and manage the device thanks to integration with the Cerbo GX system. This allows users to check the battery status, energy consumption level, and many other parameters at any time without having to access the device directly. Managing energy online not only provides convenience but also allows for a faster response to potential failures, which is especially important in emergency power systems.
The device can operate with various DC voltages - from 12V to 48V, which makes them extremely versatile. Power 2000VA makes the MultiPlus capable of powering even the most demanding devices, making it an ideal choice for camper owners, industrial applications, and home emergency power systems.

Key Features and Security

It's worth noting the high efficiency of the MultiPlus. The device achieves efficiency of 93%, which translates into energy savings and longer battery life. Thanks to the function PowerAssist and PowerControl, MultiPlus can automatically adjust the power drawn from the electricity grid, which prevents overloads and enables more efficient energy management. Security is a priority, and the device offers a wide range of protections, from overload protection to intelligent fan-assisted cooling.
MultiPlus is also a device resistant to harsh operating conditions. It can operate in extreme temperatures, from -40°C to +65°C, making it the ideal choice for those needing a reliable power source in the most demanding environments. Furthermore, built-in protection against condensation and moisture ensures long, trouble-free operation.

Technical Specifications

• Parameters / Model: MultiPlus 12V 2000VA 80A-32A


• PowerControl / PowerAssist: Yes


• Three-phase and parallel operation: Yes


• Transfer switch (A): 32 A

• Input voltage range (V DC): 9.5 - 17 V


• Output voltage: 230VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Output power at 25ºC / 77°F (VA): 2000 VA


• Output power at 25ºC / 77°F (W): 1600 W


• Output power at 40ºC / 104°F (W): 1400 W


• Output power at 65ºC / 150°F (W): 1000 W


• Peak power (W): 3500 W


• Maximum efficiency (%): 93


• Power at zero load (W): 10 W


• Zero load power in AES mode (W): 3 in

• Alternating Current (AC) Input: 187-265 VAC


• Input frequency (Hz): 45 - 65 Hz


• Absorption charging voltage (V DC): 14.4V


• Float charging voltage (V DC): 13.8V


• Storage mode (V DC): 13.2V


• Household battery charging current (A): 80 A


• Battery temperature sensor: Yes


• Current charging of the starter battery: NO

• Programmable relay: Yes


• Security: ag


• VE.Bus communication port: Yes (RJ45 splitter ASS030065510 needed for 500 / 800 / 1200 VA models)


• DIP switches: Yes (7)


• Remote on and off: On/Off/Charger Only

• Operating temperature range: -40 to +65°C (fan-assisted cooling)


• Humidity (non-condensing): max 95%


• Internal DC fuse: NO

• Protection category: IP 21


• Battery connection: M8 screws


• 230V AC connection: screws


• Weight (kg): 15.5 kg


• Dimensions (mm): 506 x 236 x 147 mm

This advanced power supply is ideal for both emergency systems and RVs. Its power, flexibility, and remote monitoring capabilities make it one of the most versatile solutions on the market. By utilizing the latest technology, the MultiPlus not only ensures high performance but also long battery life, which translates into lower operating costs.
