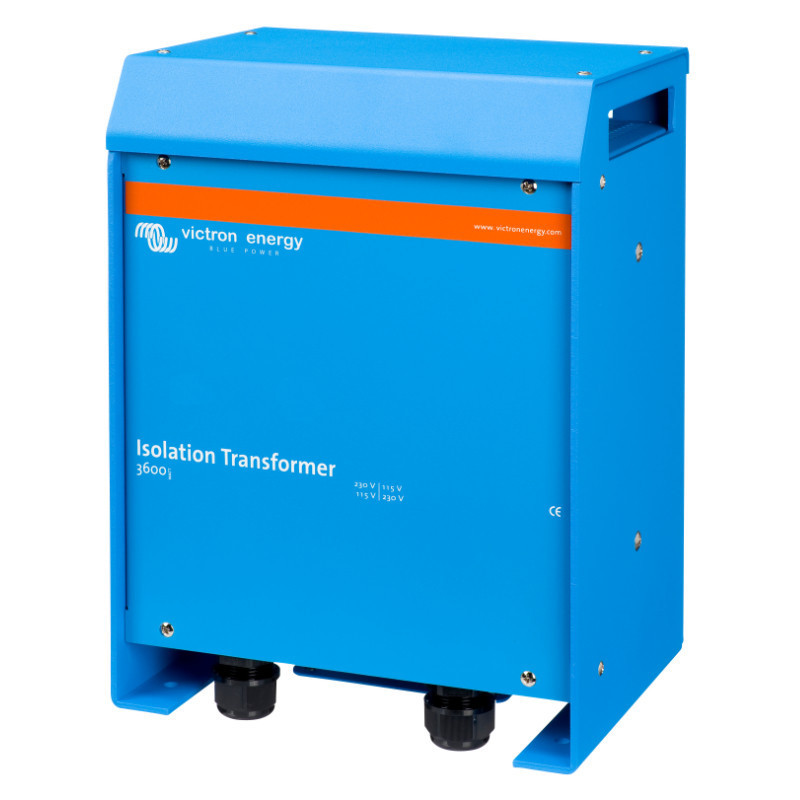

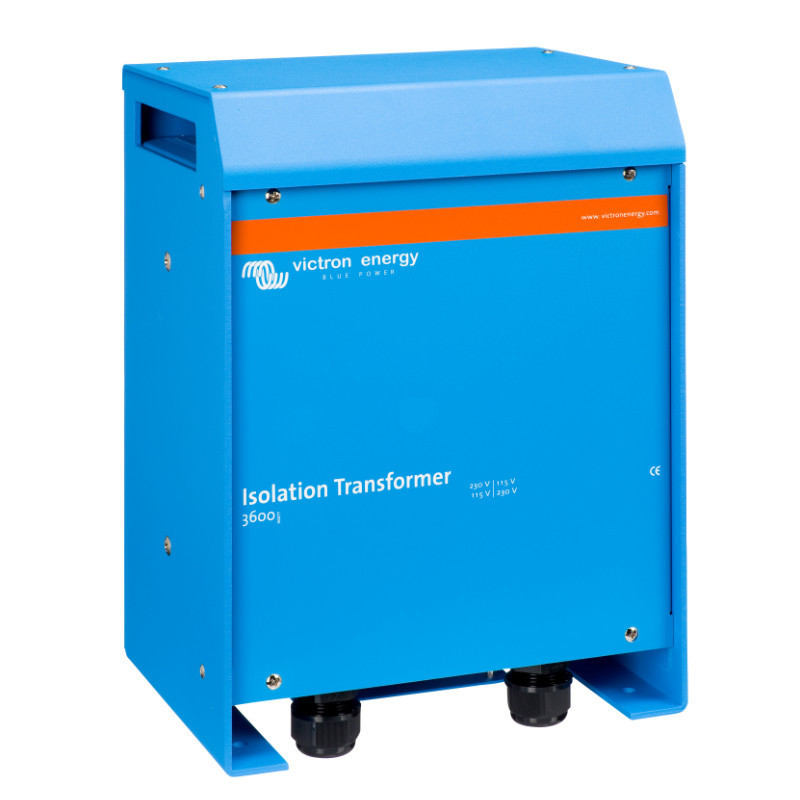

Isolation Trans. 3600W 115/230V

The Victron Energy 3600W 115/230V isolation transformer is an essential device in marine power systems, ensuring full galvanic isolation between the power source and the vessel's circuits. Its role is to protect the electrical system and the vessel's metal parts from electrolytic corrosion, while ensuring stable power supply and safety.

Key Features and Benefits

This isolation transformer effectively eliminates the risk of corrosion that can occur when connecting a vessel's electrical system to shore power. Thanks to its toroidal winding design, the device offers high efficiency and energy savings, resulting in a longer lifespan for marine equipment. Galvanic isolation protects against hazardous situations related to surges or short circuits in the vessel's electrical system.

Two-level voltage conversion

This device is excellent at converting voltage between different standards, enabling trouble-free operation in 115V and 230V systems. This is especially important for vessels that must adapt to different power standards depending on their location.

Safety of use

The transformer features a soft start function, protecting the electrical system from sudden current spikes during start-up. Furthermore, a built-in input fuse provides additional overload protection, enhancing onboard safety. This is an invaluable feature in demanding marine environments where power stability is crucial.

Technical specifications:

• Entry: 115V or 230V


• Exit: 115V or 230V


• Frequency: 50/60 Hz


• Rated current (Rating): 32 A / 16 A


• Gentle start: Yes


• Input fuse: Yes


• Transformer type: Toroidal

Mechanical parameters:

• Case: Aluminum


• Dimensions: 362 x 258 x 218 mm


• Libra: 23 kg


• Protection class: IP 21

Compliance with standards:

• Security: EN 60076

The Victron Energy 3600W 115/230V isolation transformer ensures reliability and safety in all conditions, and its compact design and advanced protection features make it an excellent choice for power systems on marine vessels.
