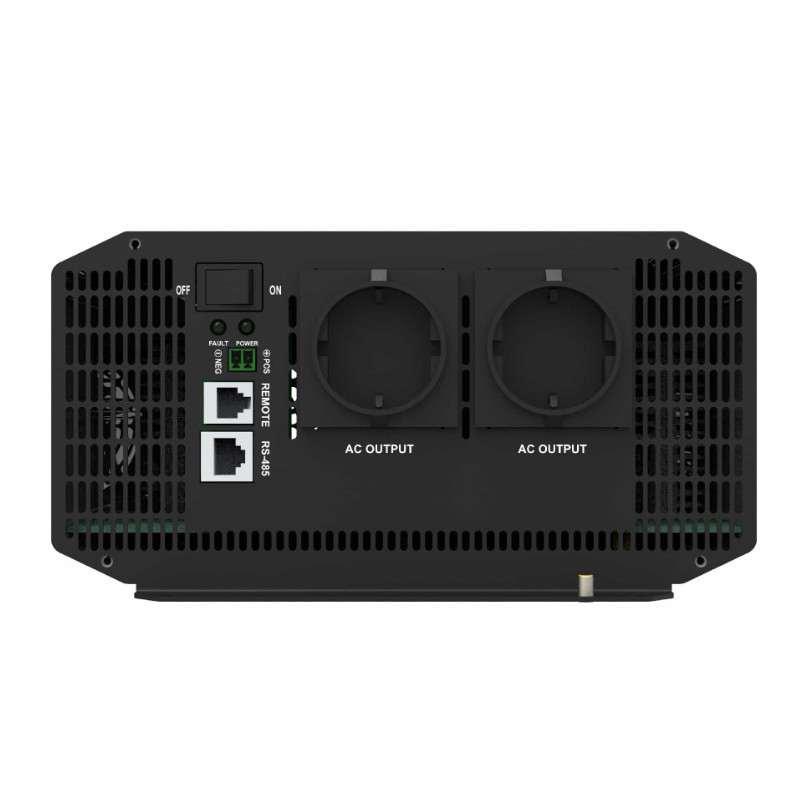

EPEVER IPT3000-12(E) 3000W voltage converter
Product reference:
39-5906765148436
The IPT line of products are pure sine wave inverters that convert 12VDC to 220/230VAC. They are ideal for photovoltaic systems thanks to their wide input voltage range. These inverters can be used to power lighting, RV/caravan appliances, small photovoltaic installations, and more.
EPEVER IPT3000-12(E) 3000W voltage converter
Product reference:
39-5906765148436
The IPT line of products are pure sine wave inverters that convert 12VDC to 220/230VAC. They are ideal for photovoltaic systems thanks to their wide input voltage range. These inverters can be used to power lighting, RV/caravan appliances, small photovoltaic installations, and more.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 8
business days
EPEVER IPT3000-12V(E) converter
Main features:
- Stable: The IPT and IP series stand out thanks to their performance, reliability and safety of use.
- Compatible: Stable and clean AC voltage, compatible with most electrical devices.
- Intelligent: Modern protective functions protect the device and connected equipment against overload, overheating and short circuit.
Main technical features:
- Pure sine wave output signal
- Output power factor: 1
- Output protection: overload, short circuit, overheating
- Compliance with EN/IEC62109-1/2, EN61000-6-2/4 and FCC standards
- External switch to control and reduce energy consumption
- Input-output isolation
- Input protection: low and high voltage
- RS485 communication port - remote monitoring
- Various AC output sockets
The best in its segment
IPT series converters offer an excellent price-quality ratio, making them unrivaled in their class of devices.
Perfect setup
Combining the IPT converter with other EPEVER devices provides a modern and advanced energy solution for demanding users.
Key features of the system:
- High reliability: Solid construction and quality control ensure long life of the device.
- Advanced technology: Numerous protective functions protect both the inverter and connected devices.
- Versatility and compatibility: Modern, compact design suitable for a variety of applications.
- High input voltage: Ideal for PV systems with a wide supply voltage range.
- Pure sine wave output: Eliminates interference and ensures safety for connected devices.
- Environmentally friendly: Supports the use of renewable energy and helps reduce the carbon footprint.
Technical specifications
Electrical parameters
- Model: IPT3000-12
- Continuous output power: 3000W
- Peak power: 6000W @ 5 seconds
- Current: 100A
- Output voltage: 220VAC (±3%), 230VAC (-6%~+3%), 240VAC (-9%~+3%)
- Output frequency: 50/60Hz ± 0.2%
- Output signal: Pure sine wave
- THD distortion: ≤ 3% (resistive load)
- Load power factor: 0.2 ~ 1 (up to 3000W)
Input parameters
- Nominal input voltage: 12VDC
- Input voltage range: 10.8 ~ 16.0VDC
Efficiency and power consumption
- Nominal efficiency: > 87%
- Maximum efficiency: > 94% (at 30% load)
- Idle current: 0.2A
- No-load current: 1.6A
Communication and interface
- Communication port: RS485 (5VDC / 200mA)
- Input terminal: M10
Dimensions and weight
- Dimensions (L × W × H): 557 × 228 × 118 mm
- Mounting dimensions: 532 × 145 mm
- Mounting hole size: Φ6 mm
- Libra: 9.5 kg
Environmental conditions
- Operating temperature: -20 ~ +60
- Storage temperature: -35 ~ +70
- Relative humidity: ≤ 95% (non-condensing)
- Housing protection class: IP20
Maximum installation height: 5000 m (above 1000 m - power derating according to IEC62040)
Compliance and standards
- Safety certificates: EN/IEC62109-1, UL458 (for 12/24V version), CSA C22.2 #107.1
- EMC: EN61000-6-2 / EN61000-6-4, FCC Part 15 (Subpart A)
- RoHS Compliance: IEC62321-3-1
