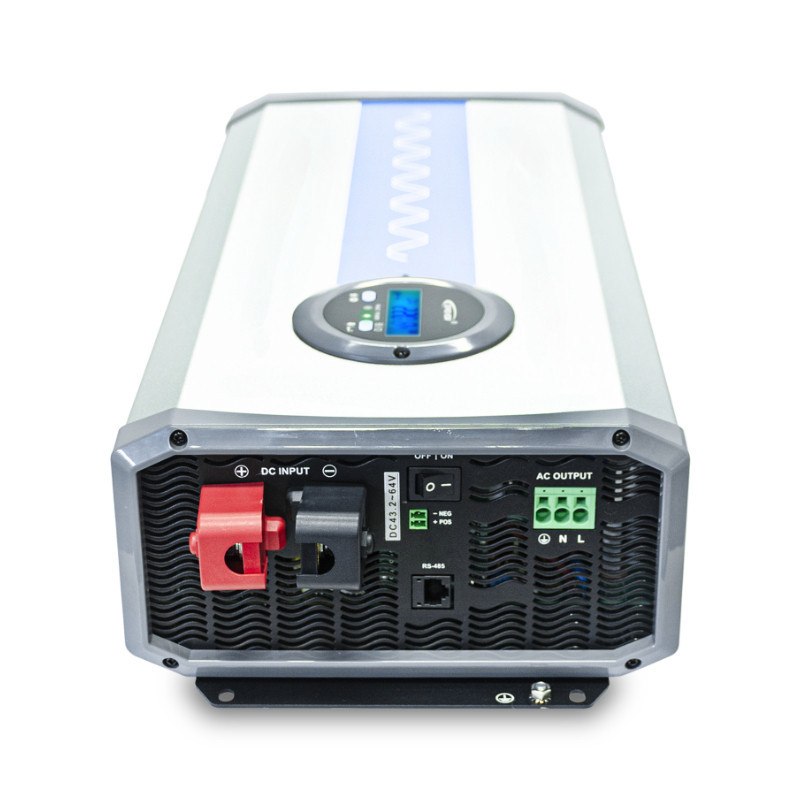

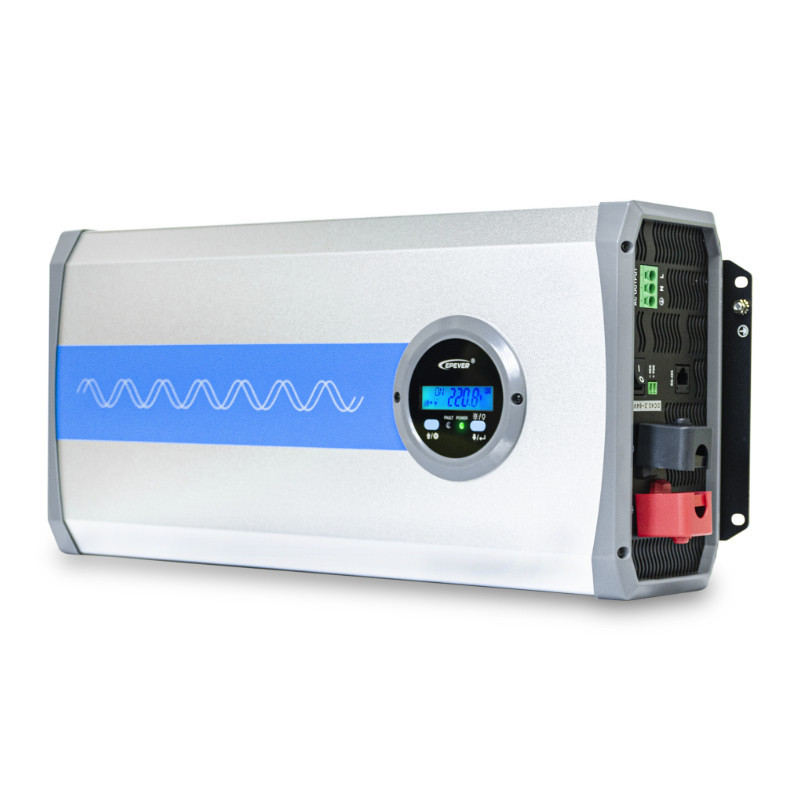

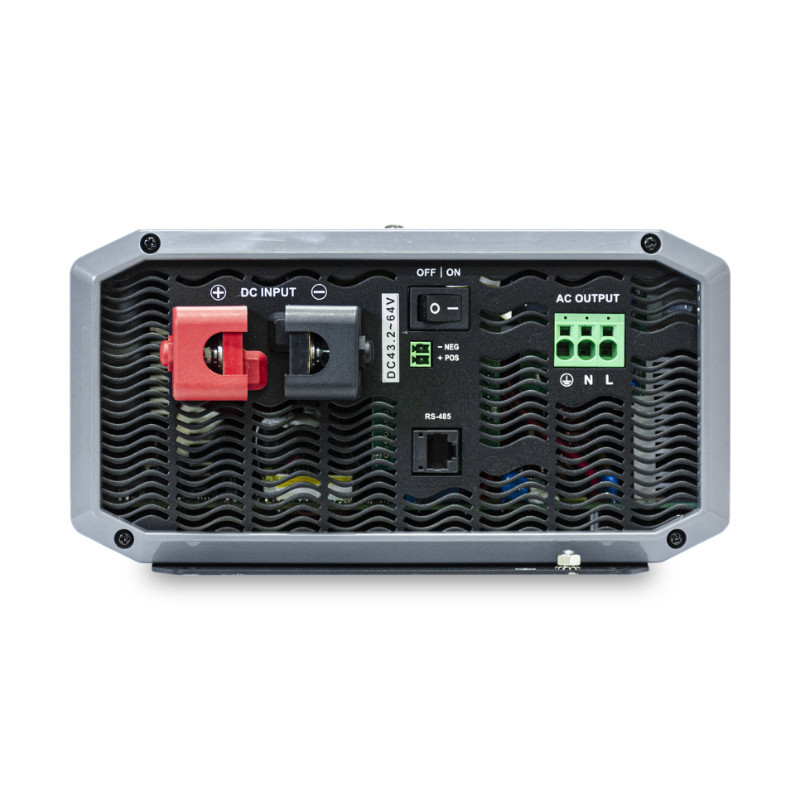

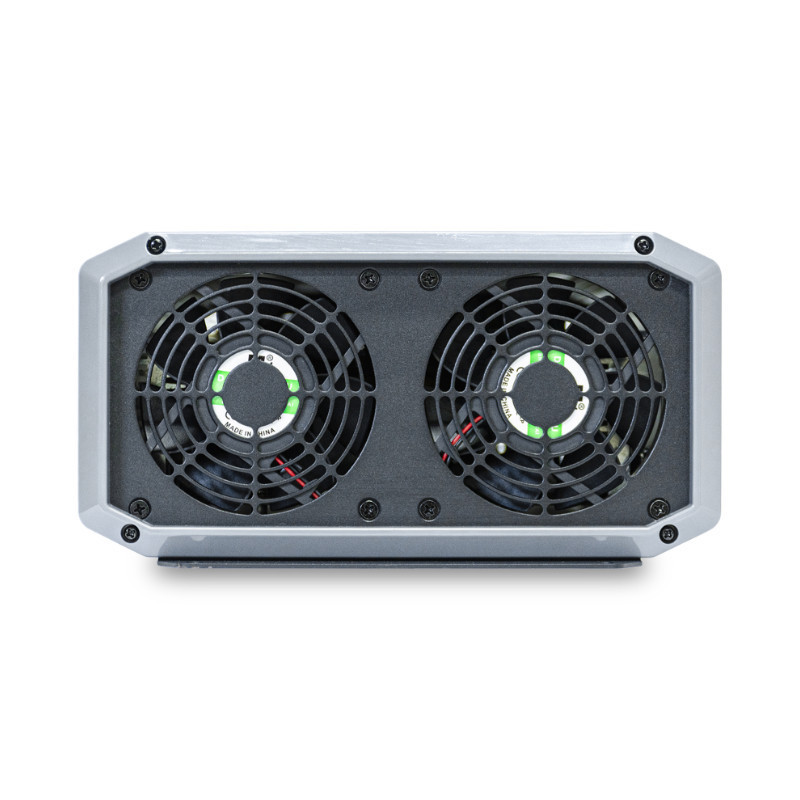

EPEVER IPT1000-12-PLUS-T 1000W voltage converter

Converter EPEVER IPT1000-12-PLUS-T 1000W This technologically advanced device converts 12V DC to 220/230V AC. Designed for use in photovoltaic systems, campers, and caravans, it provides stable and reliable power to a variety of electrical devices. Its compact design and robust construction make it an ideal solution for small photovoltaic installations.

Safety and reliability

Converters from the series IPower-Plus They are equipped with advanced protective features that protect against overload, short circuit, and overheating. This ensures trouble-free and safe operation while protecting connected devices from damage. Electrical insulation between the entrance and exit additionally increases the level of security.

Versatility and compatibility

The device offers a pure sine wave output that's compatible with a wide range of electrical devices. This allows the inverter to power a variety of devices, such as lighting, electronics, and household appliances, without risking damage from voltage fluctuations.

Remote control and advanced monitoring options

Equipped with a port RS485, the converter allows you to remotely monitor and control its functions using your phone or computer. This option makes managing your energy system easy and convenient, even from a distance.

Key features

• Pure sine wave: It guarantees stable power supply, without electromagnetic interference, which minimizes the risk of equipment damage.


• Protective functions: Protection against overload, short circuit, overheating, low and high input voltage.


• Remote control: Possibility to monitor and control the converter via the port RS485.


• Versatility of use: Compatible with photovoltaic systems, campers, and caravans.

Technical specifications

• Model: EPEVER IPT1000-12-PLUS-T 1000W


• Continuous output power: 1000W


• Surge power: 2000W (for 5 seconds)


• Overvoltage current at power-up: <100A


• Output voltage: 220VAC (±3%); 230VAC (-7%~+3%)


• Output frequency: 50/60Hz (±0.2%)


• Output signal: Pure sine wave


• Output distortion THD: ≤3% (with resistive load)


• Load power factor: 0.2 ~ 1


• Nominal input voltage: 12VDC


• Input voltage range: 10.8 ~ 16.0VDC


• Nominal output efficiency: > 89%


• Maximum output efficiency: > 93% (at 40% load)


• Idle current: 0.2A


• No-load current: 1.1A


• RS485 communication port: 5VDC/200mA


• Input terminal: M6


• Dimensions (L x W x H): 371 × 231.5 × 123 mm


• Mounting dimensions: 345 × 145 mm


• Mounting hole size: Φ5 mm


• Libra: 5.1 kg


• Operating temperature: -20 ~ +60


• Storage temperature: -35 ~ +70


• Relative humidity: ≤95% (non-condensing)


• Case: IP20


• Security: EN/IEC62109-1, UL1741, UL458, CSA C22.2#107.1

Converter EPEVER IPT1000-12-PLUS-T 1000W It's the perfect solution for photovoltaic systems and mobile installations like campers and caravans. Remote control, advanced protection features, and a pure sine wave signal ensure this device not only delivers efficiency but also safety and ease of use.
