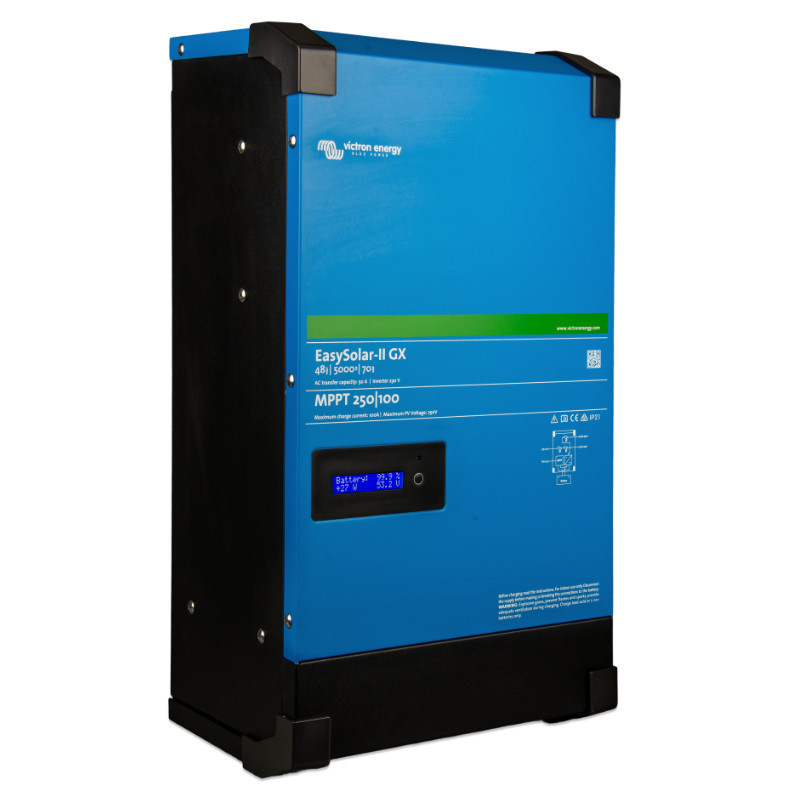

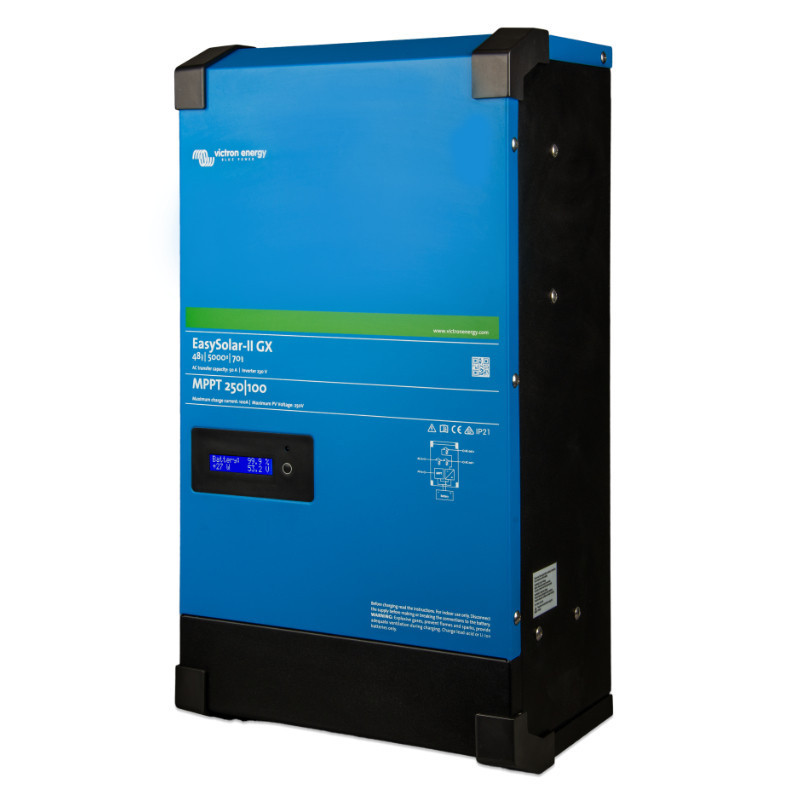

EasySolar-II 48 / 5000 / 70-50 MPPT 250 / 100 GX

The EasySolar-II GX 48/5000/70-50 is an advanced hybrid solution that integrates a solar charger, inverter, and grid charger into a single device. This allows the system to charge batteries from both photovoltaic panels and the electrical grid or a generator. An efficient 4000W continuous power inverter provides stable power for a variety of devices, while the maximum power supported by the photovoltaic panels is up to 5800W. The device is powered by 48V, ensuring optimal system operation.

Built-in Wi-Fi and display

The EasySolar-II GX allows you to monitor and configure the system using the Victron Connect app, which gives you access to all important battery and charger parameters. The device can be remotely controlled via the internet, giving you complete control over the system from anywhere in the world. Additionally, the device is equipped with a remote on/off function, significantly increasing its flexibility.

Efficient energy management

Innovative PowerAssist and PowerControl technology ensures optimal energy management, allowing excess power produced by the photovoltaic panels to be used to charge batteries or feed it into the grid. The system automatically switches to battery power in the event of a grid outage, and can supplement power shortages by using the grid or a generator if necessary.

Efficiency and safety

The EasySolar-II GX inverter boasts a maximum efficiency of 96%, ensuring high energy efficiency. Additionally, the system offers advanced safety mechanisms that protect against overvoltage, overload, and overheating. The device meets stringent safety standards and offers comprehensive protection features, such as an integrated battery temperature sensor and programmable relays.

Technical specifications:

INVERTER/CHARGER Easy Solar-II GX 48/5000-70-50

• PowerControl and PowerAssist: Yes


• Inter-circuit switch: 50 A


• Maximum AC input current: 50 A


• Reserve output: 50 A

INVERTER

• Input voltage range: 38 - 66 V


• Output voltage: 230 VAC ± 2%


• Frequency: 50 Hz ± 0.1%


• Continuous output power at 25 °C: 5000 VA / 4000 W


• Continuous output power at 40 °C / 55 °C: 3700 W / 3000 W


• Maximum apparent power input: 4400 W / 5000 VA


• Peak power: 9000 W


• Maximum efficiency: 96%


• Zero load power: 18 W


• Zero load power in AES mode: 12 W


• Zero load power in search mode: 2 W

CHARGER

• AC input: Input voltage range: 187-265 VAC


• Input frequency: 45 - 65 Hz


• Charging voltage in the absorption phase: 57.6V


• Charging voltage in the floating charge phase: 55.2V


• Storage mode: 52.8V


• Maximum battery charging current: 70 A


• Battery temperature sensor: Yes


• Programmable relay: Yes


• Security: a - g

SMARTSOLAR CHARGING CONTROLLER

• Model: MPPT 250/100-Tr


• Maximum output current: 100 A


• Maximum PV power: 5800 W


• Maximum open circuit voltage of the PV installation: 250V


• Maximum efficiency: 98%


• Own consumption: 20 mA


• Absorption phase charging voltage, default settings: 57.6V


• Float charge voltage, default settings: 55.2V


• Security: a - e

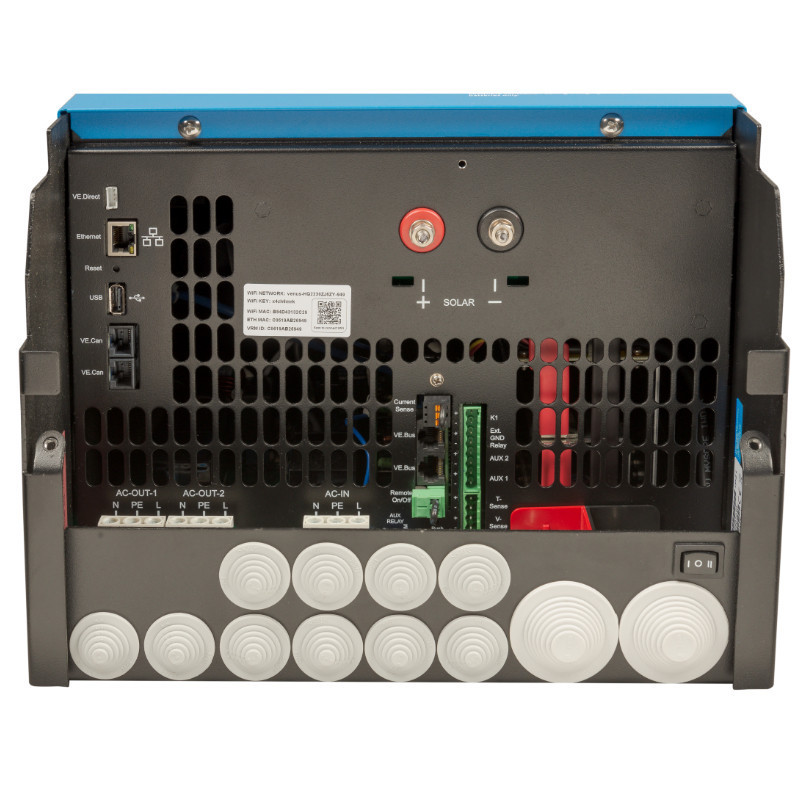

• Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi


• Remote on/off: Yes

GENERAL DATA

• Operating temperature range: -20 to +45 °C (fan cooling)


• Humidity (non-condensing): max. 95%

CASE

• Material and color: Aluminum (blue, RAL 5012)


• Protection class: IP 21

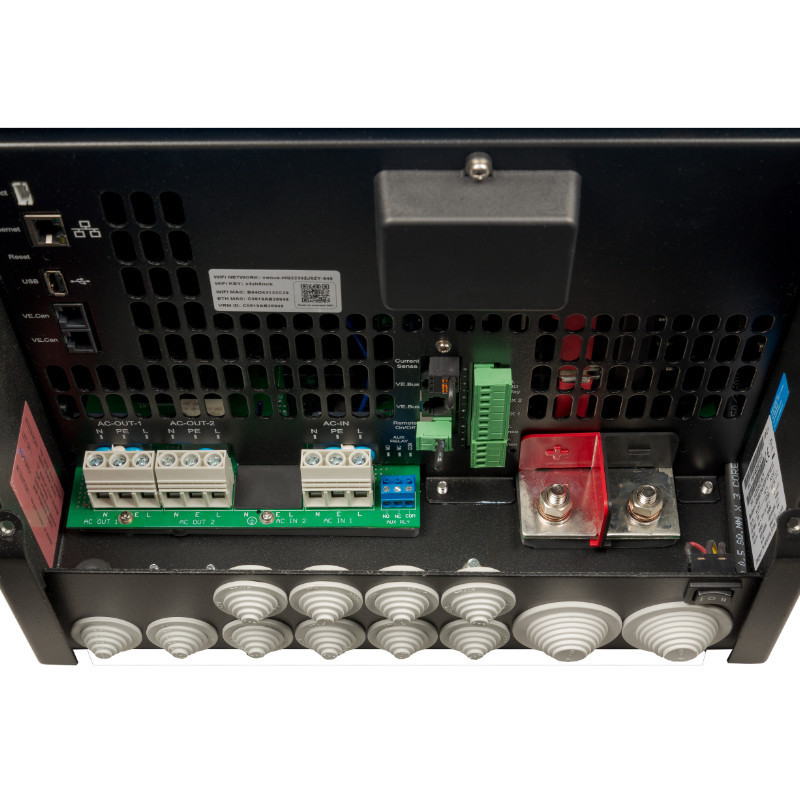

• Battery connection: M8 pins


• PV connection: M6 pins


• 230V AC connection: Screw terminals 13 mm² (6 AWG)


• Mass: 38.6 kg


• Dimensions (H x W x D): 604 x 323 x 253 mm

This device provides comprehensive and efficient energy management in photovoltaic installations, while offering flexibility and ease of use.
