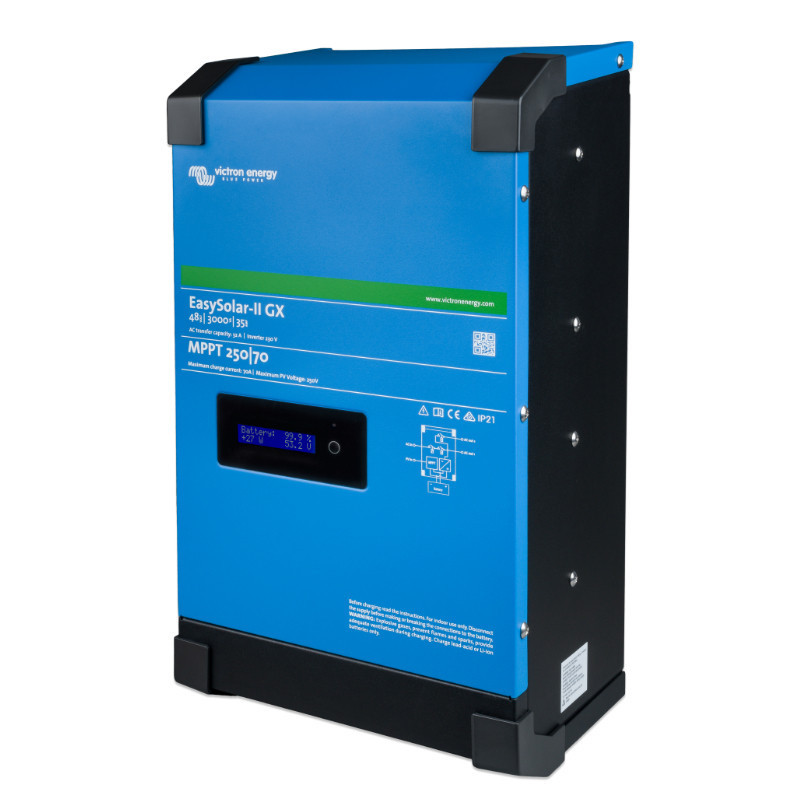

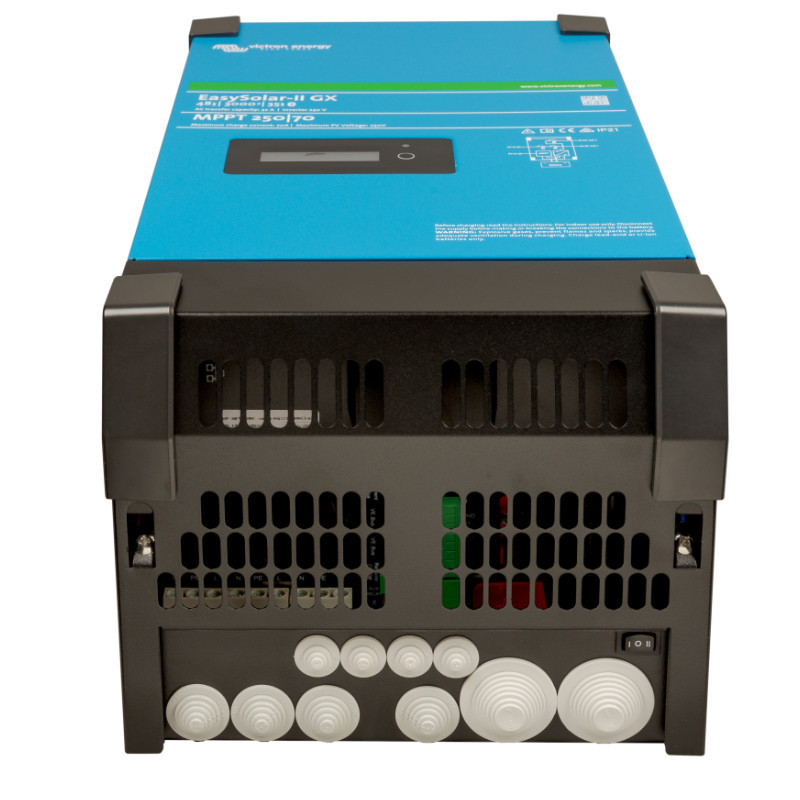

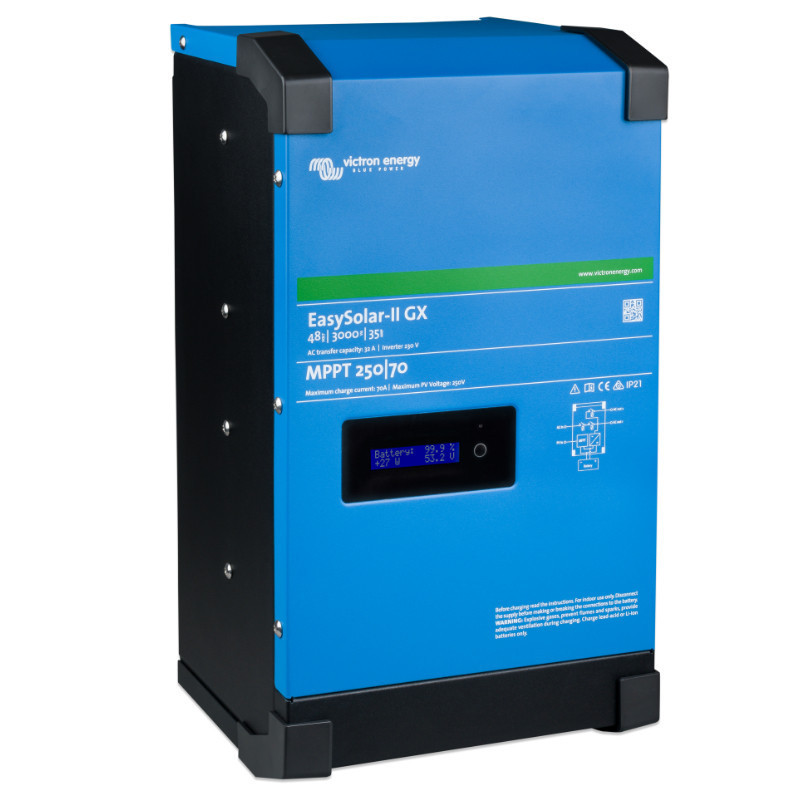

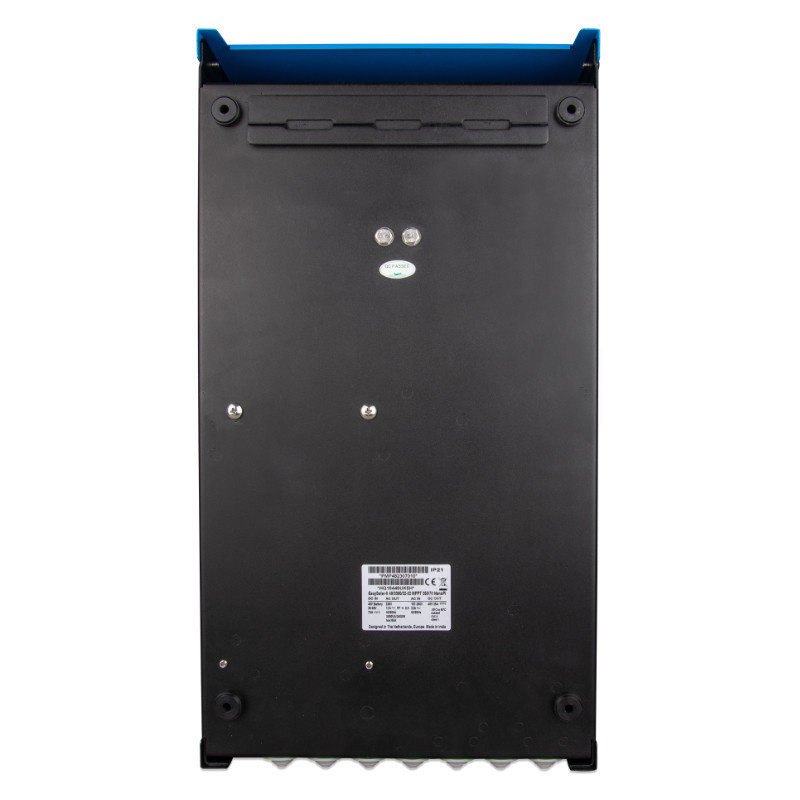

EasySolar-II 48 / 3000 / 35-32 MPPT 250 / 70 GX

The EasySolar-II 48/3000/35-32 MPPT 250/70 GX is an advanced hybrid device that combines the functions of an inverter, grid-tie charger, and MPPT charge controller in a single compact system. It can power batteries with power from the grid, a generator, and solar panels, providing complete energy flexibility. Thanks to a built-in inverter with a continuous output of 2400 W, the device provides stable 230 V power while supporting photovoltaic panels up to 4000 W.

Key features:

: Combines energy sources from the grid, generator, and solar panels, ensuring uninterrupted power to the batteries.
Control via app: The device works with the Victron Connect app, allowing you to easily monitor and manage settings.
Remote service: The ability to connect to the internet via Wi-Fi or Ethernet cable allows remote control of the system via the Victron Remote Management portal.
Integrated display: Displays the current operating parameters of the batteries, inverter and charge controller.

High performance:

EasySolar-II utilizes an advanced MPPT controller that optimizes battery charging by maximizing solar energy utilization, even in variable lighting conditions. PowerControl and PowerAssist protect the system from overloads by controlling input current and providing power assistance when the power generated by the solar panels is insufficient.

Flexibility and security:

The device provides complete isolation from the power grid in the event of a power outage by automatically switching power to batteries. Additional features, such as PowerControl, monitor and manage energy consumption, adapting power to the load. Easy integration with external sensors and power meters enables precise control of energy consumption and generation.

Technical specifications:

INVERTER/CHARGER Easy Solar-II GX 48/3000-35-32

• PowerControl and PowerAssist: Yes


• Inter-circuit switch: 32 A


• Maximum AC input current: 32 A


• Reserve output: 32 A

INVERTER

• Input voltage range: 38 - 66 V


• Exit: Output voltage 230 VAC ± 2%


• Frequency: 50 Hz ± 0.1%


• Continuous output power at 25 °C: 3000 VA / 2400 W


• Continuous output power at 40 °C / 55 °C: 2200 W / 1700 W


• Maximum apparent power input: 2470 W / 3000 VA


• Peak power: 5500 W


• Maximum efficiency: 95%


• Zero load power: 11 W


• Zero load power in AES mode: 7 W


• Zero load power in search mode: 2 W

CHARGER

• AC input: Input voltage range 187-265 VAC


• Input frequency: 45 - 65 Hz


• Charging voltage in the absorption phase: 57.6V


• Charging voltage in the standby charging phase: 55.2V


• Storage mode: 52.8V


• Maximum battery charging current: 35 A


• Battery temperature sensor: Yes


• Programmable relay: Yes


• Security: a - g


• VE.Bus communication port: Enables parallel and three-phase operation, remote monitoring and system integration


• General Purpose Port: Yes, 2x

SMARTSOLAR CHARGING CONTROLLER

• Model: MPPT 250/70-Tr


• Maximum output current: 70 A


• Maximum PV power: 4000 W


• Maximum open circuit voltage of the PV installation: 250V


• Maximum efficiency: 98%


• Own consumption: 20 mA


• Absorption phase charging voltage, default settings: 57.6V


• Charge voltage during float charging, default settings: 55.2V


• Security: a - e


• Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi


• Remote on/off: Yes

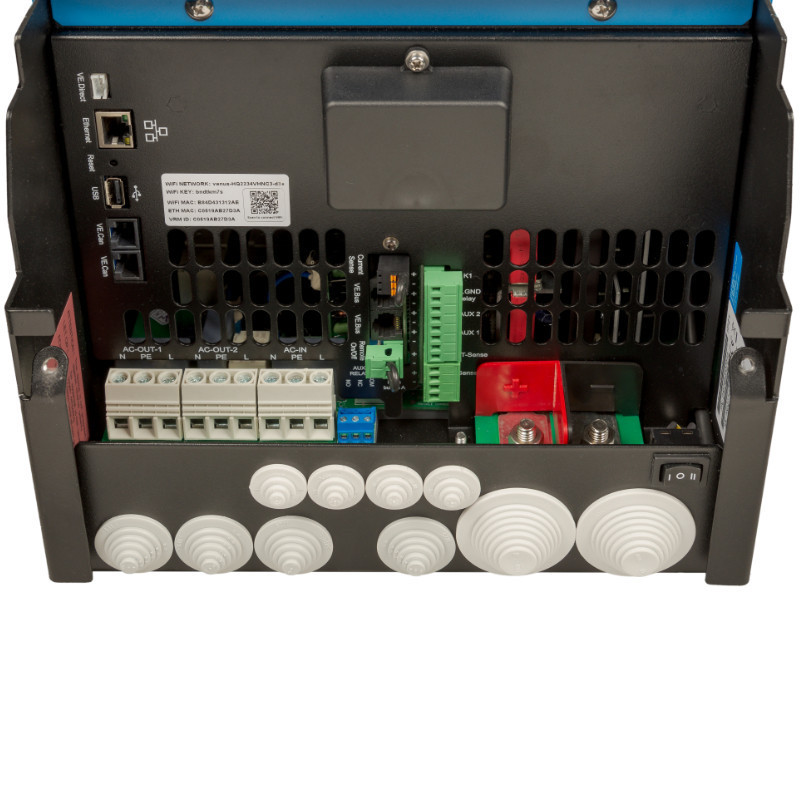

CASE

• Material and color: Aluminum (blue, RAL 5012)


• Protection class: IP 21


• Battery connection: M8 pins


• PV connection: M6 pins


• 230V AC connection: Screw terminals 13 mm² (6 AWG)


• Mass: 26 kg


• Dimensions (H x W x D): 499 x 268 x 237 mm

EasySolar-II 48/3000/35-32 MPPT 250/70 GX is the perfect solution for people who need a reliable and efficient hybrid system for energy management, both in domestic and commercial installations.
