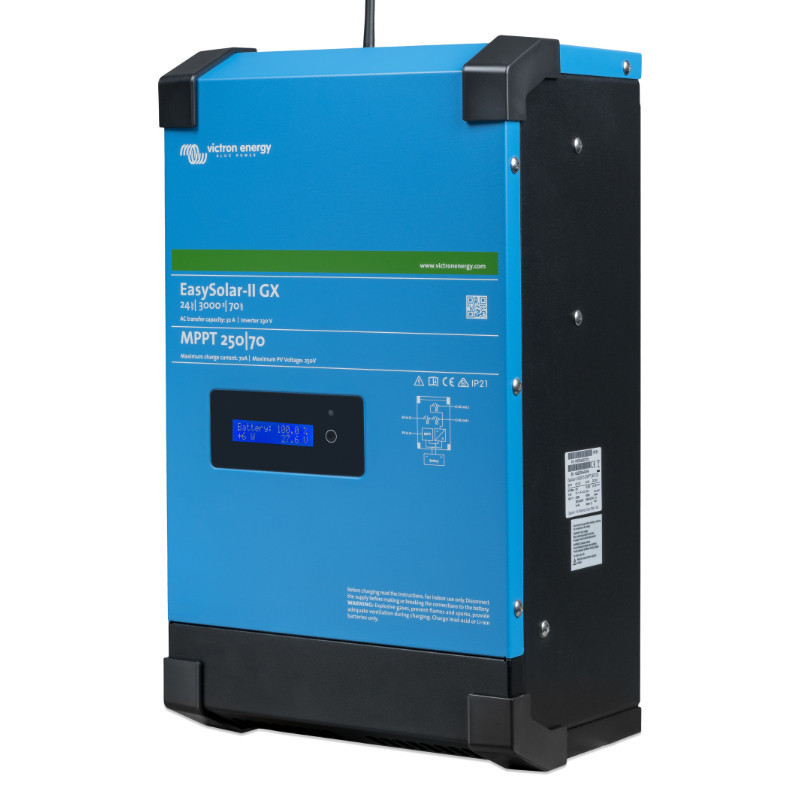

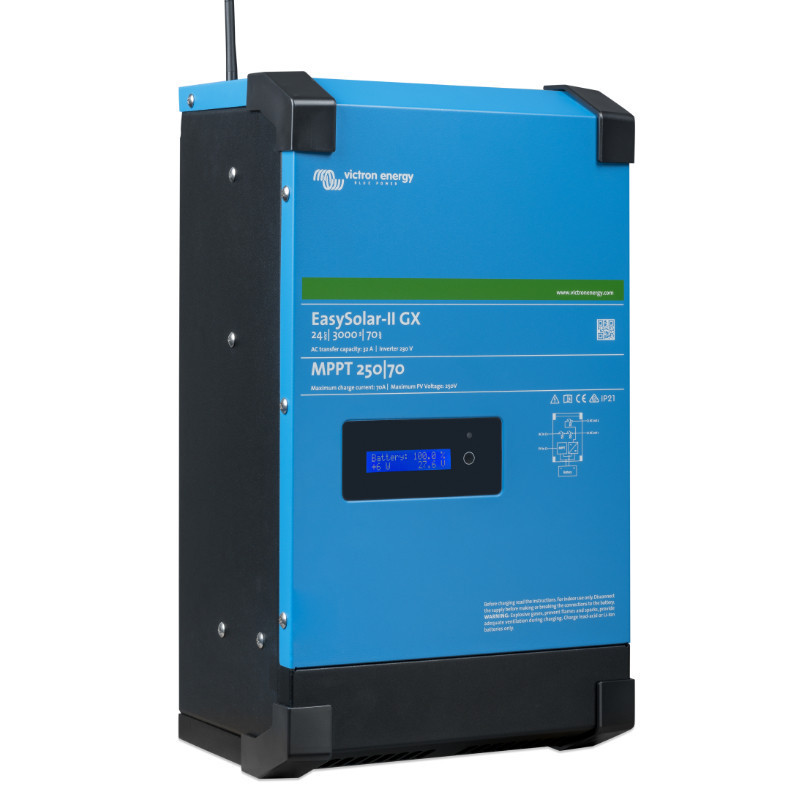

EasySolar-II 24 / 3000 / 70-32 MPPT 250 / 70 GX

The EasySolar-II 24/3000/70-32 MPPT 250/70 GX is an advanced hybrid device that combines the functionality of an inverter, solar charger, and grid charger in a single package. This product allows you to power your batteries from both solar panels and external sources, such as the utility grid or a generator. The built-in inverter provides 2400W of continuous power and can handle photovoltaic panels with a total power of up to 2000W, making it an ideal solution for hybrid energy systems.

Integration and remote management

The EasySolar-II GX combines multiple features, such as PowerControl and PowerAssist, to enable precise energy management for both home and mobile systems. Remote control via the internet using the Victron Remote Management portal allows you to monitor and configure the device from anywhere in the world.

Monitoring and display

The device is equipped with a display and Wi-Fi connectivity, allowing you to monitor the system's operating status on a smartphone or tablet. Advanced communication features allow for connection to various interfaces, such as Ethernet, VE.Bus, and VE.Direct, further increasing the system's flexibility.

Functionality and efficiency

The integrated MPPT 250/70 controller ensures maximum solar charging efficiency, with up to 98% efficiency, allowing for efficient energy utilization even in variable sunlight conditions. The system supports real-time energy management, eliminating excess energy and ensuring continuous power to key loads in the event of a grid failure.

High performance and protection

The EasySolar-II GX is equipped with numerous safety features, including overvoltage, overload, and short circuit protection. With a robust aluminum housing and IP21 rating, the device is durable and resistant to adverse environmental conditions, making it suitable for a variety of applications, both in homes and mobile systems.

Technical specifications:

INVERTER/CHARGER Easy Solar-II GX 24/3000-70-32

• PowerControl and PowerAssist: Yes


• Switch between circuits: 32 A


• Maximum AC input current: 32 A


• Reserve output: 32 A

INVERTER

• Input voltage range: 19 - 33 V


• Exit: Output voltage 230 VAC ± 2%


• Frequency: 50Hz ± 0.1%


• Continuous output power at 25 °C: 3000 VA / 2400 W


• Continuous output power at 40 °C / 55 °C: 2200W / 1700W


• Maximum apparent power input: 2470 W / 3000 VA


• Peak power: 5500 W


• Maximum efficiency: 94%


• Zero load power: 13 W


• Zero load power in AES mode: 9 W


• Zero load power in search mode: 3 in

CHARGER

• AC Input: Input voltage range: 187-265 VAC


• Input frequency: 45-65 Hz


• Charging voltage in absorption phase: 28.8 V


• Charging voltage in rest phase: 27.6 V


• Storage mode: 26.4 V


• Maximum battery charging current: 70 A


• Battery temperature sensor: Yes


• Programmable relay: Yes


• Security: a - g

VE.Bus communication port

• Features: Enables parallel and three-phase operation, remote monitoring and system integration

General Purpose Com Port

• Number of ports: Yes, 2x

SMARTSOLAR CHARGING CONTROLLER

• Model: MPPT 250/70-Tr


• Maximum output current: 70 A


• Maximum PV power: 2000 W


• Maximum open circuit voltage of the PV installation: 250V


• Maximum efficiency: 98%


• Own consumption: 20 mA


• Absorption phase charging voltage (default setting): 57.6V


• Charge voltage in float charge phase (default setting): 55.2V


• Security: a - e

Interfaces

• Types: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi

Remote on/off

• Function: Yes

Operating temperature range

• Temperature: -20 to +45 °C (fan cooling)

Humidity (non-condensing)

• Maximum: 95%

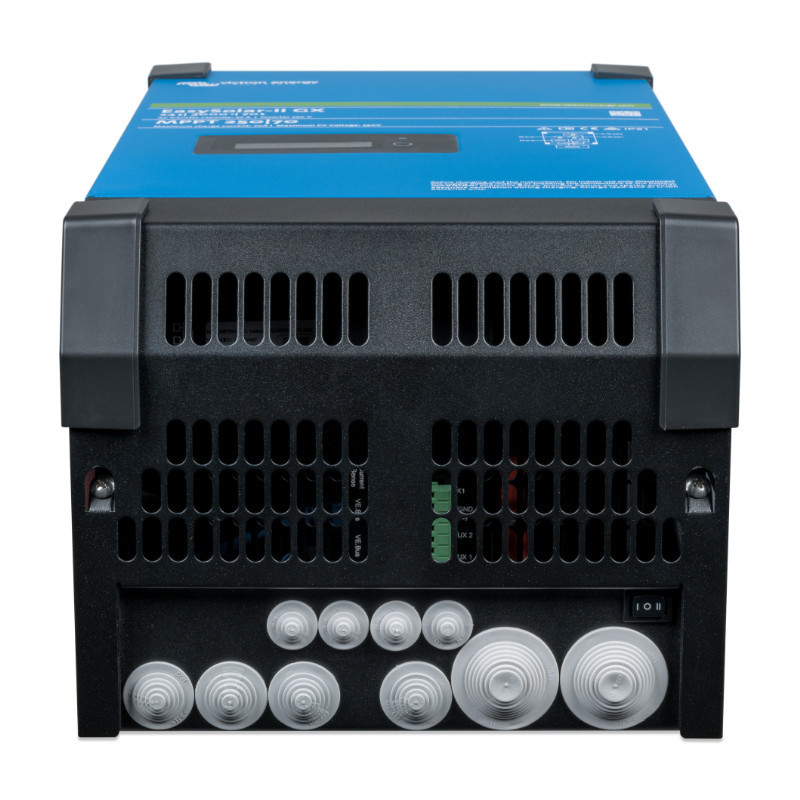

CASE

• Material and color: Aluminum (blue, RAL 5012)


• Protection class: IP 21


• Battery connection: M8 pins


• PV connection: M6 pins


• 230V AC connection: Screw terminals 13 mm² (6 AWG)

Weight and dimensions

• Mass: 26 kg


• Dimensions (H x W x D): 499 x 268 x 237 mm

The product provides advanced integration and flexibility, meeting the needs of even the most demanding energy systems.
