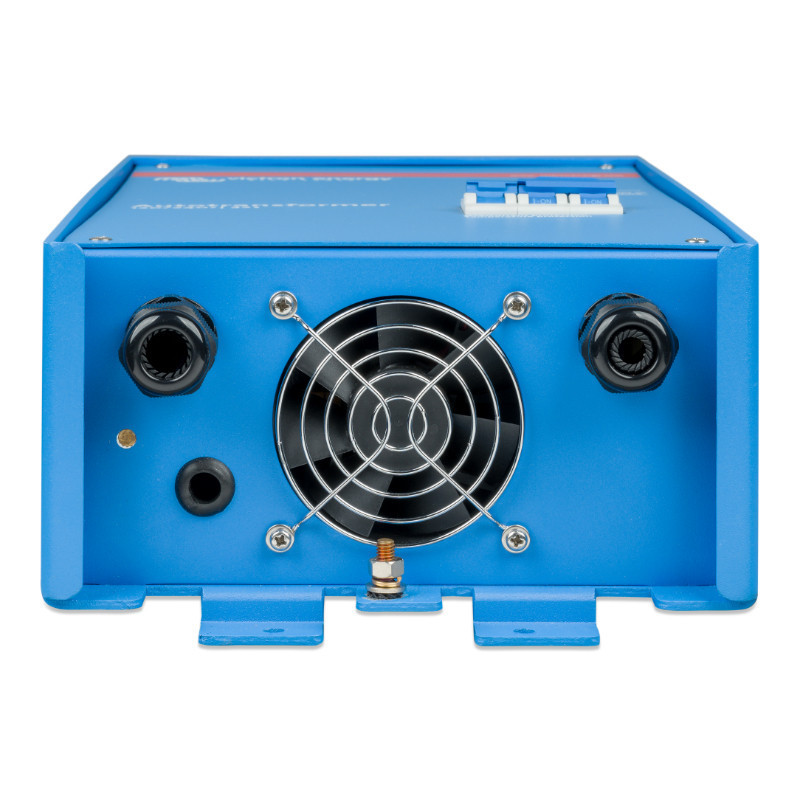

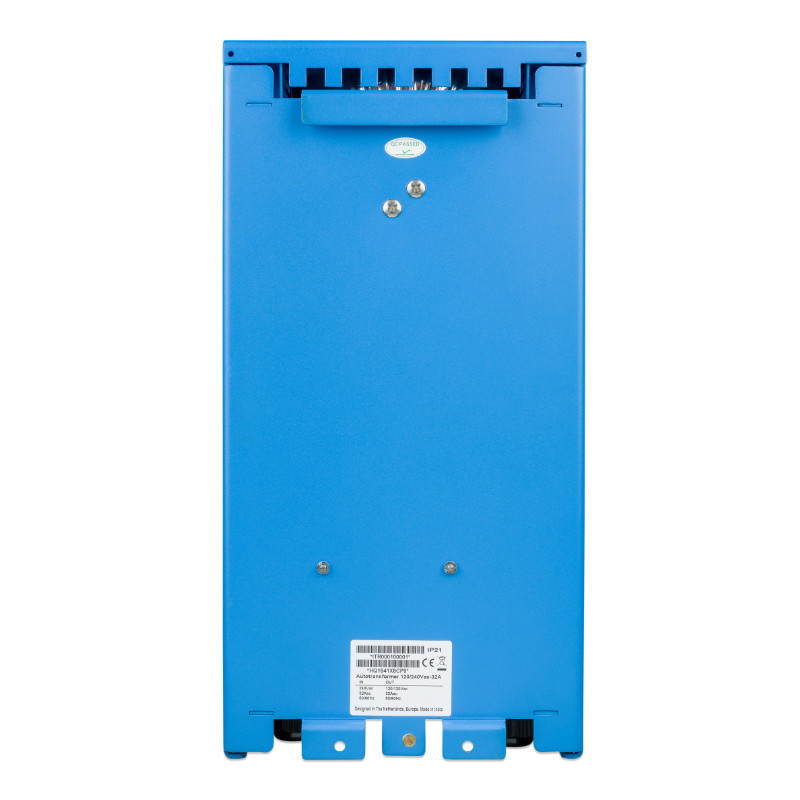

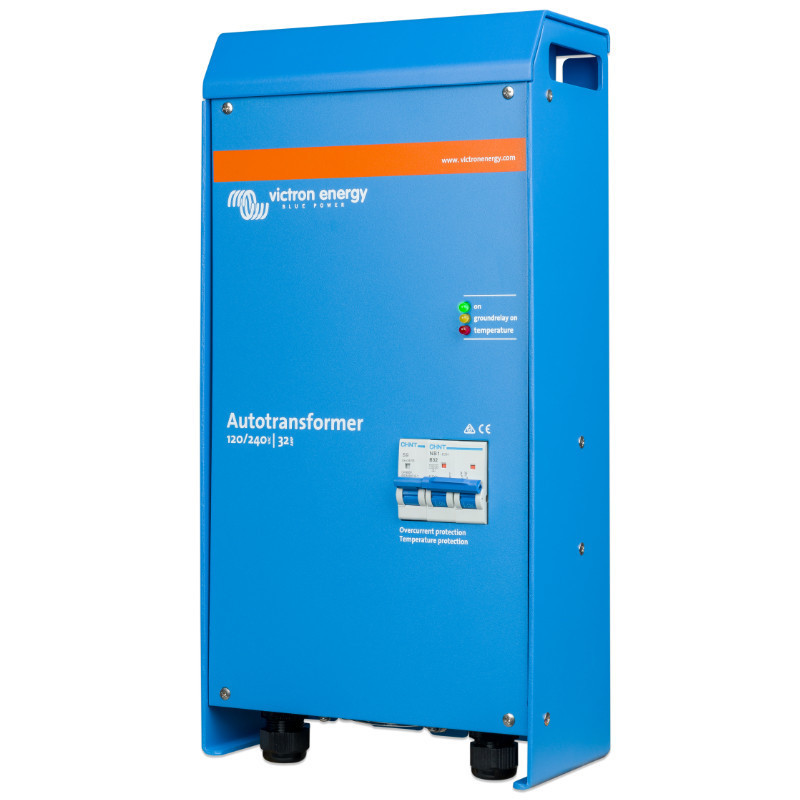

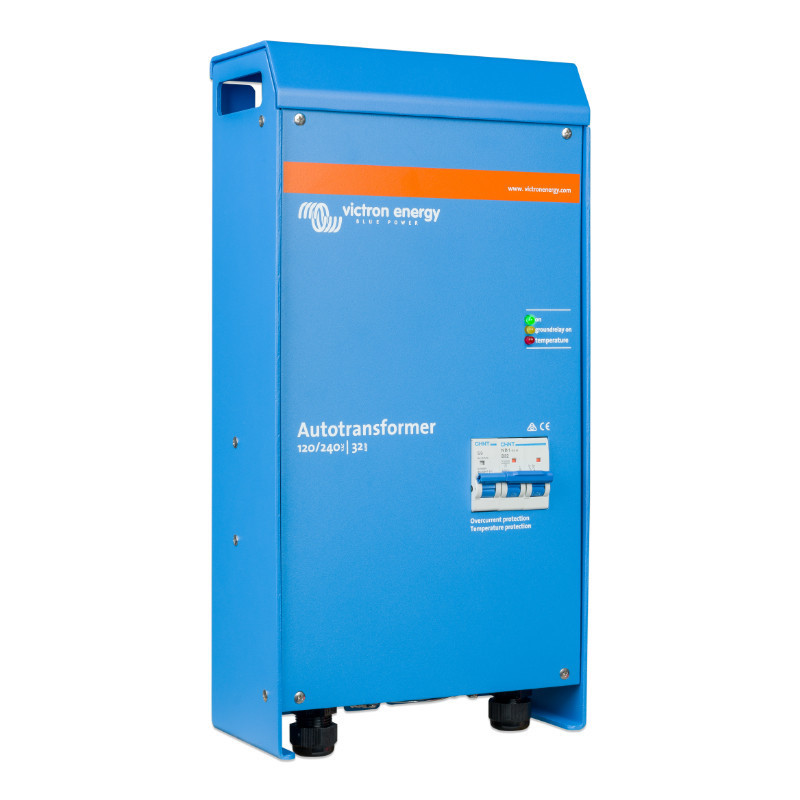

Autotransformer 120/240VAC-32A

The Victron Energy 120/240VAC-32A autotransformer is a versatile device that allows you to change the voltage in power systems and balance phases. Thanks to its versatility, the autotransformer can be used for both stepping up and stepping down voltage, making it an indispensable tool in many applications, especially in vehicles and boats, where voltage standards can vary depending on the location.

Flexibility and compact design

The 120/240VAC-32A autotransformer offers multi-voltage capability, which is especially useful when traveling between countries with different power standards. Its compact design allows for installation in confined spaces, making it ideal for mobile applications such as campers, yachts, and other vehicles.

High efficiency and space saving

The device is characterized by high efficiency, allowing for long-term, stable operation even in harsh conditions. The optimized toroidal transformer design ensures minimal energy loss, resulting in savings and long-term reliability.

Security and adaptation to various configurations

The autotransformer is designed to operate in a variety of wiring configurations, allowing it to easily adapt to varying power supply requirements. It also features a grounding function, allowing for a safe neutral-to-ground connection, especially in systems compatible with Victron MultiPlus or Quattro.

Technical specifications:

• Entry: 120/240V


• Input fuse: 32 A, bipolar


• Frequency: 50/60 Hz


• Maximum power supply (240V): 32 A


• Neutral current (30 min): 32 A (3800 VA)


• Neutral current (continuous): 28A @ 40°C / 100°F


• Transformer type: Toroidal


• Input fuse: Yes

Mechanical parameters:

• Case: Aluminum


• Protection class: IP 21


• Libra: 12.5 kg


• Dimensions: 375 x 214 x 110 mm

Standards:

• Security: EN 60076

The Victron Energy 120/240VAC-32A autotransformer is a robust and reliable device, ideal for those who need flexibility in power supply and the assurance that their systems will operate correctly under various voltage conditions.
