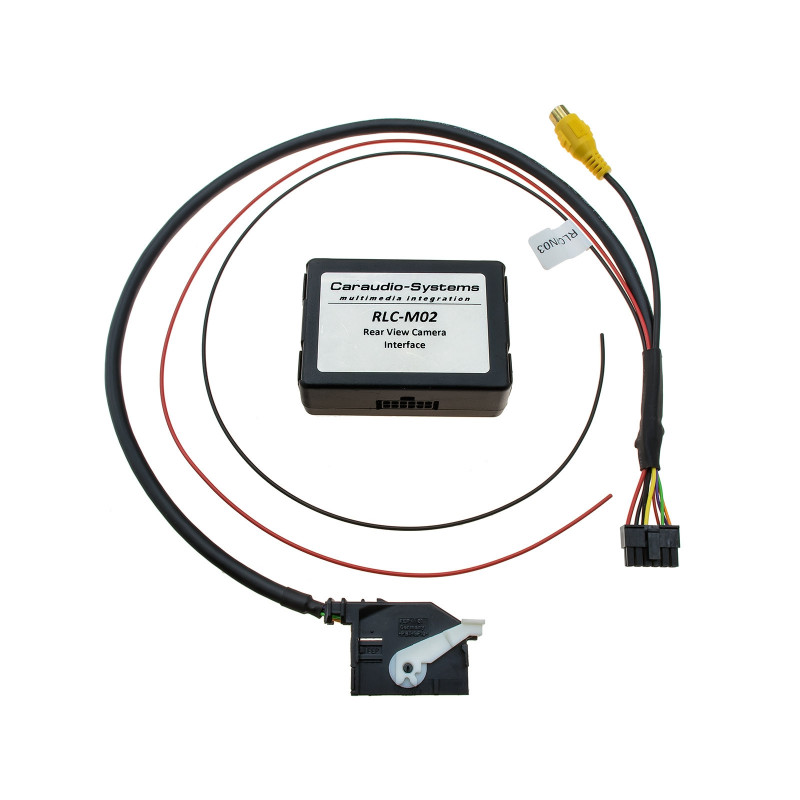

Interface for connecting a reversing camera VW, Skoda, Seat RNS510, Columbus, Trinax

Interface for connecting a rear view camera VW, Skoda, Seat RNS510, Columbus, Trinax

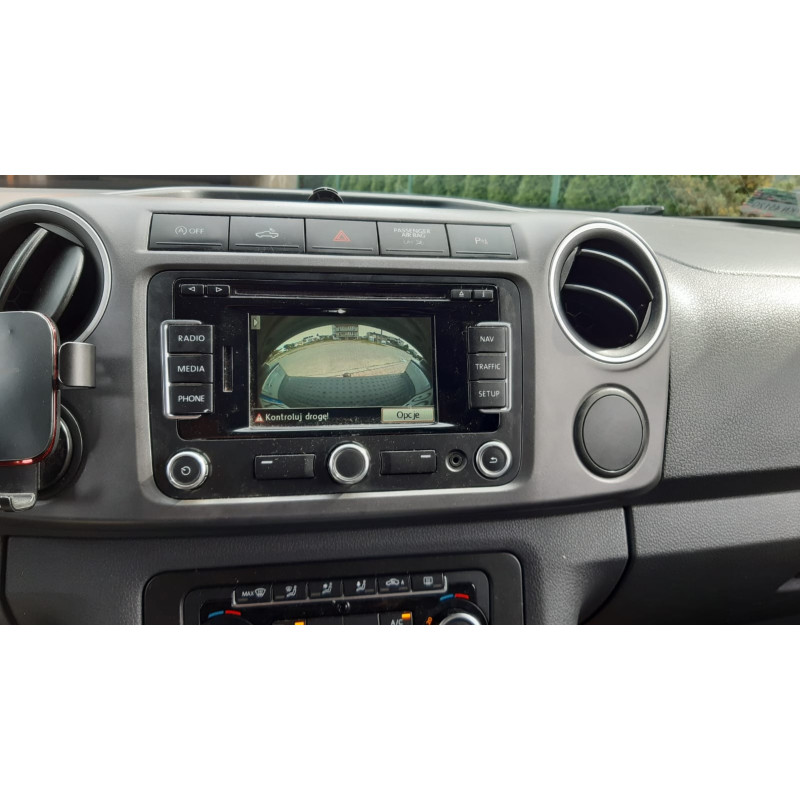

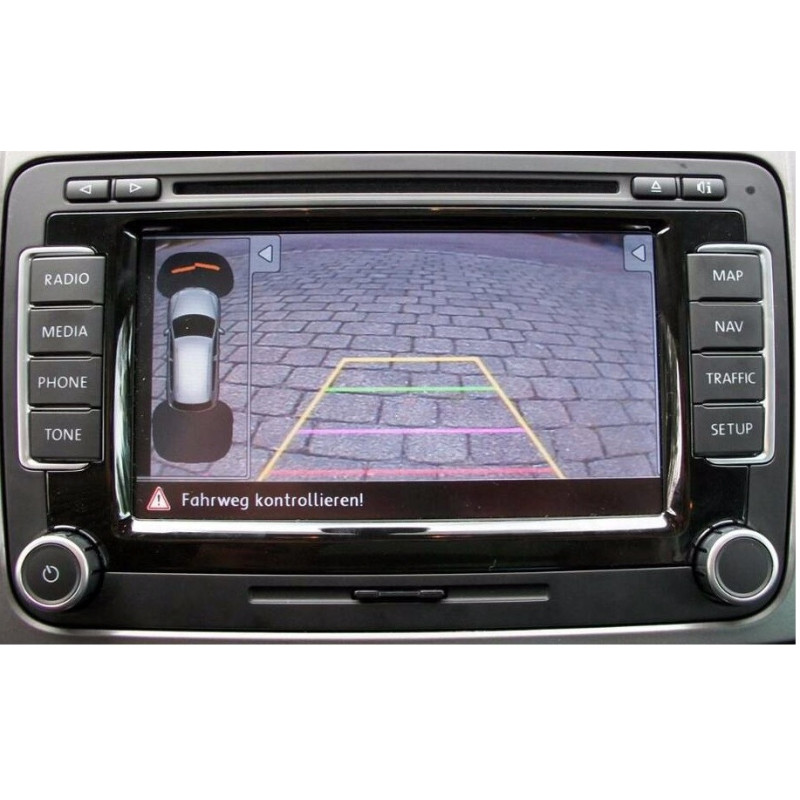

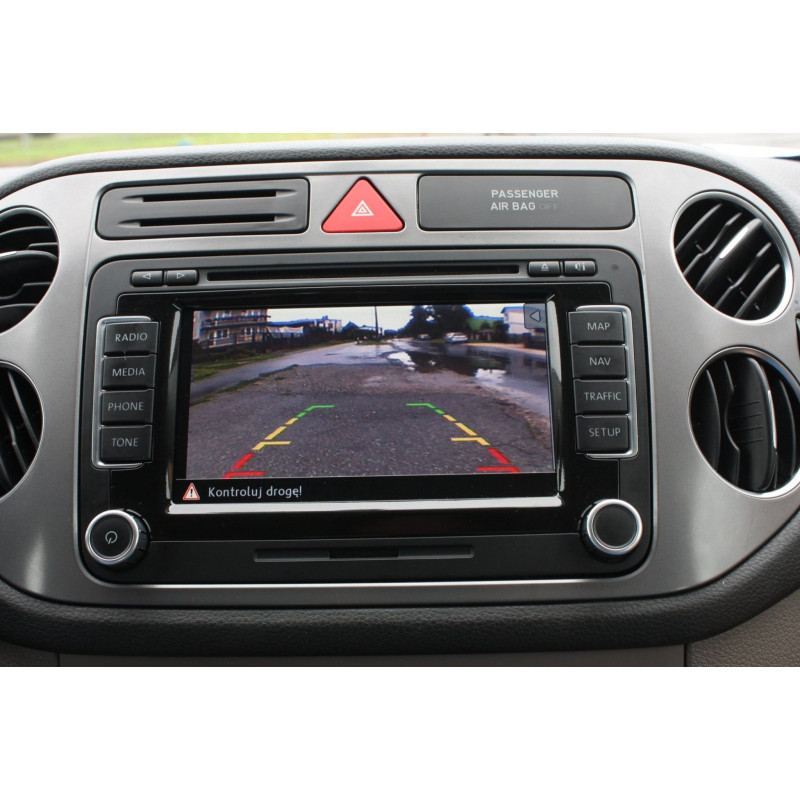

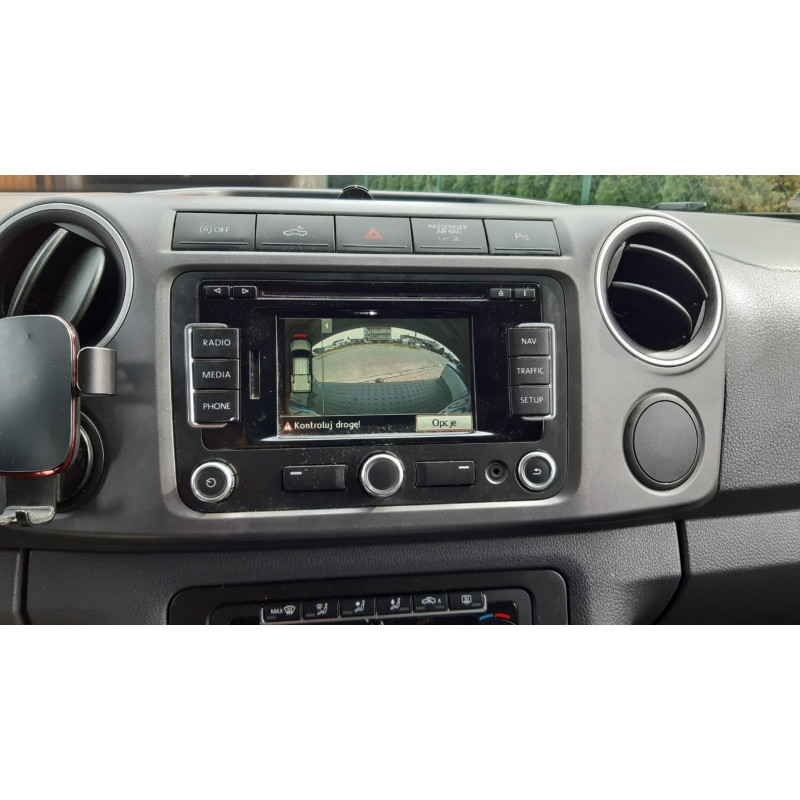

The interface allows for the connection of an external NTSC rearview camera and automatic activation of the image on the display when reverse gear is engaged. This undoubtedly makes everyday driving easier, especially for those just starting their driving journey and, for example, for the elderly. It reduces subconscious stress caused by increased concentration on the road. The interface includes a factory TV tuner, which cannot be retrofitted and is only compatible with NTSC cameras. Its coding is based on the diagnostic computer, which automatically activates the image from the rearview camera.

What should you know?
This interface is compatible with VW, Skoda, and Seat models with RNS510, Columbus, Trinax (all with software version B or SW1100), or RNS810 navigation systems. It's ideal for vehicles without a factory rearview camera. If you have any questions or concerns about this product, please contact us.
Description

The interface allows you to connect an external reversing camera NTSC, automatic image switching when reverse gear is engaged.

Factory TV tuner: must not be installed

Only compatible with cameras NTSC

Coding: the radio is coded by the diagnostic computer to automatically switch on the image from the rear camera.

Connectors 1xVideo

Supported car models

Compatible with VW, Skoda and Seat with RNS510, Columbus and Trinax (all with min. Version B of SW1100), navigation systems RNS315 and RNS810. RCD510 and Bolero radio. With 26-pin connector on the back.
For vehicles without factory rear view camera.
Supported navigation models: Columbus, Trinax, RNS510
