DeLOCK 92001 laptop dock / port replicator

DeLOCK USB Type-C™ Docking Station 4K - HDMI / USB Hub / SD - Mirco SD slot / PD 3.0 85 W Tempered Glass Surface. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Product colour: Anthracite, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Windows operating systems supported: Windows 10 Education x64, Windows 11, Mac operating systems supported: Mac OS X 15.0 Sequoia, Mobile operating systems supported: Android 14.0. Width: 44 mm, Depth: 116 mm, Height: 12 mm. Quantity per pack: 1 pc(s)

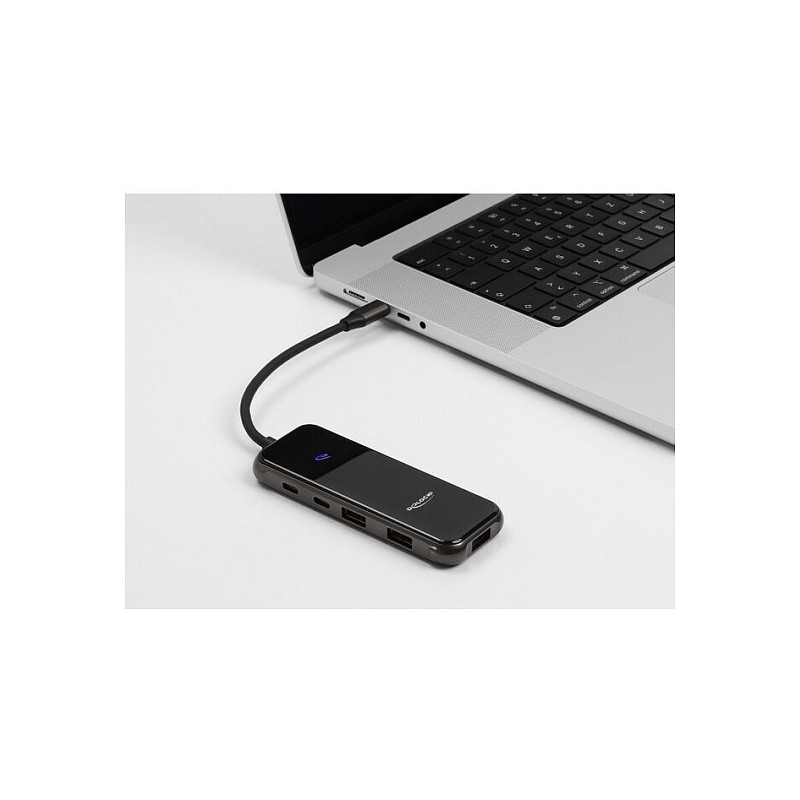

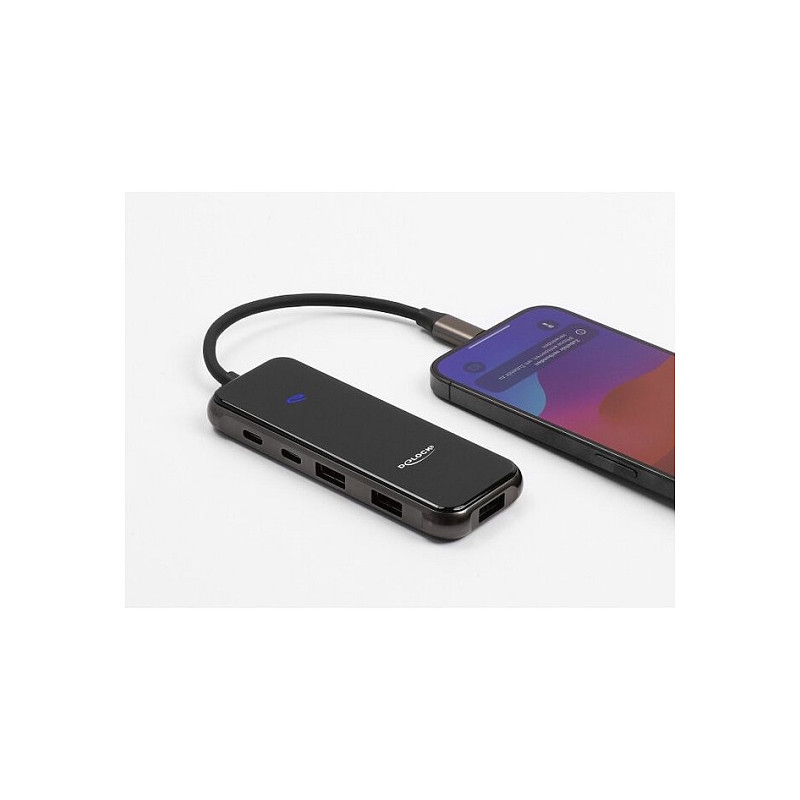

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3, Thunderbolt™ 4 or Thunderbolt™ 5 port and provides a variety of interfaces. A monitor can be operated at the HDMI output port by a maximum resolution up to 4K. Three built-in USB Type-A and one USB-C™ port allow the use of peripherals.
Integrated Card Reader
In addition, the docking station with integrated card reader expands a PC or laptop by an SD and a Micro SD slot via the USB Type-C™ connection.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 85 watts during operation.

Modern Design
The sturdy metal frame and the surface made of tempered glass not only provide the USB-C™ dock with durability but also give it a sophisticated look - featuring a stylishly integrated, illuminated Delock logo.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 85 W
HDMI ports quantity: 1
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Type-C DisplayPort Alternate Mode

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 1
Maximum refresh rate: 60 Hz
Product colour: Anthracite
Feature: High Dynamic Range (HDR) supported
Feature: Charging function
Housing material: Glass, Metal
Country of origin: China
Compatibility: iPad Air (4th generation) or lateriPad Pro (3rd generation) or lateriPhone 15 Pro or laterSurface Pro 9

Software

Windows operating systems supported: Windows 10 Education x64, Windows 11
Mac operating systems supported: Mac OS X 15.0 Sequoia
Mobile operating systems supported: Android 14.0
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 44 mm
Depth: 116 mm
Height: 12 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual
