StarTech.com SMDOS2LCLC1M InfiniBand / fibre optic cable

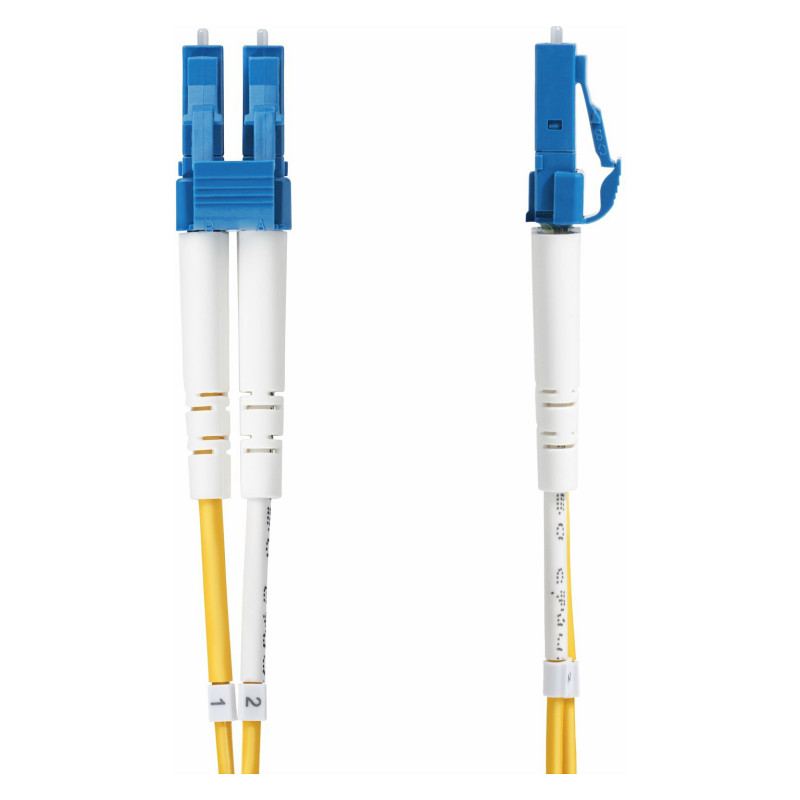

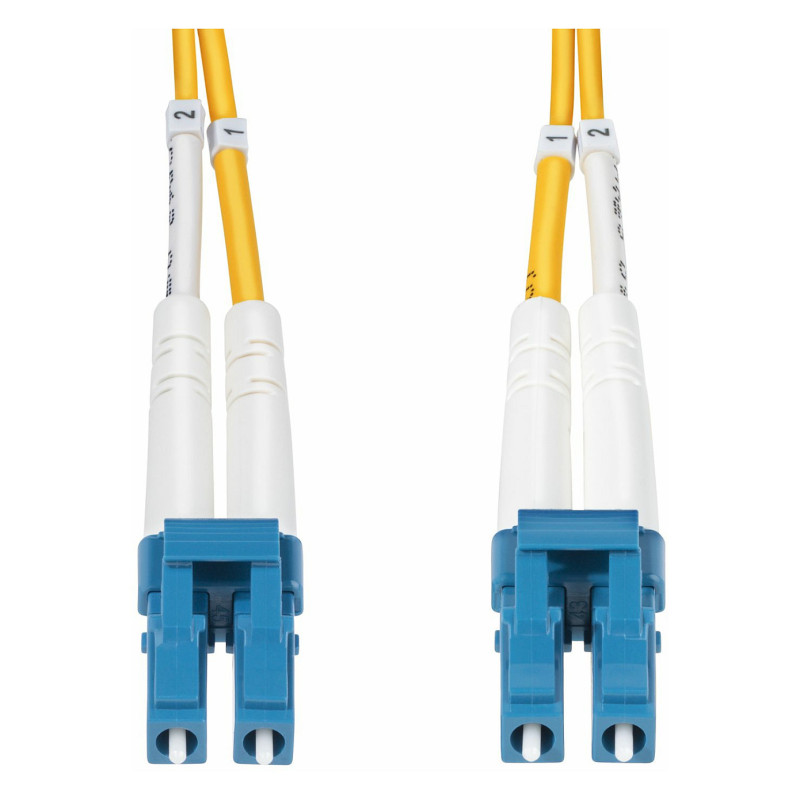

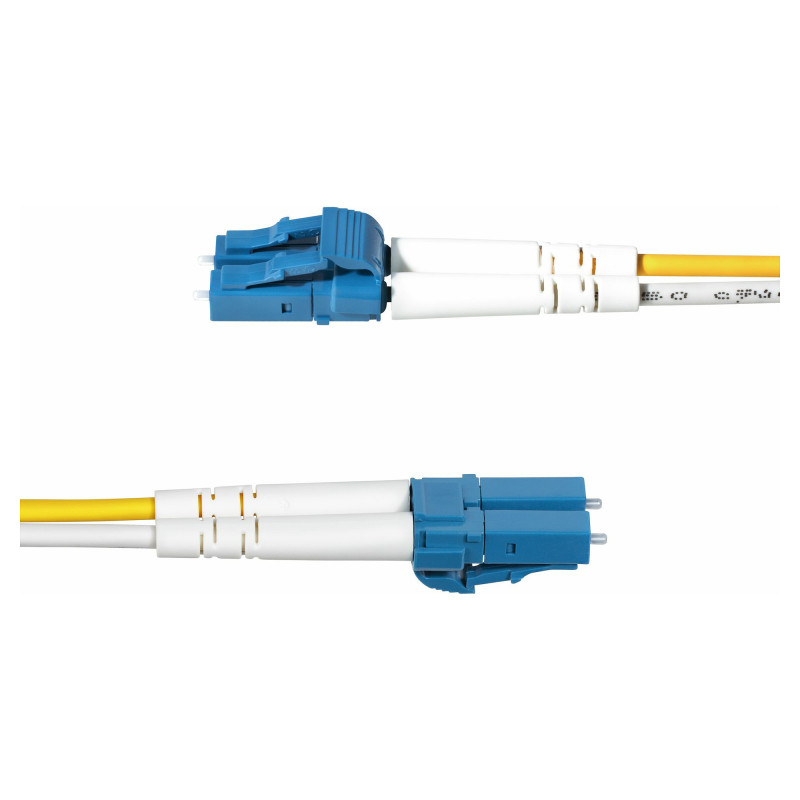

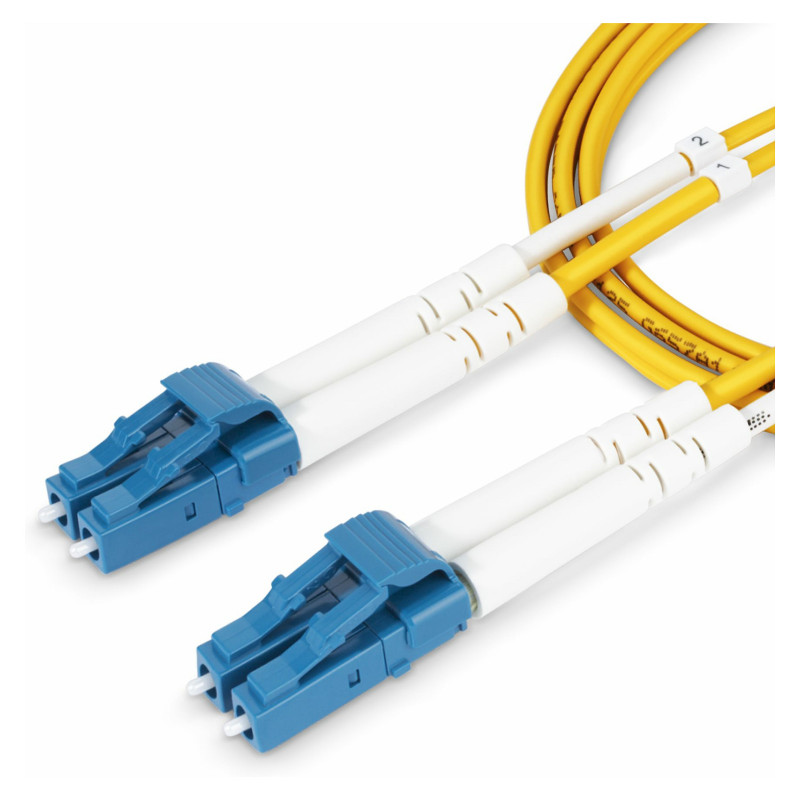

StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord. Cable length: 1 m, Cable type: LC/UPC, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex

Enhance the performance capabilities of CWDM applications over an OS2 fiber network

OS2 LC to LC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Compatibility

This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

Features

Cable length: 1 m
Fibre optic type: OS2
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: UPC
Cable type: LC/UPC
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Wavelengths supported: 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
Data transfer rate: 10 Gbit/s
Insertion loss: 0.3 dB
Return loss: 55 dB
Jacket material: Low smoke zero halogen (LSZH), Polypropylene

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Cable diameter: 2 mm
Bending radius: 1 cm

Packaging data

Package width: 199 mm
Package depth: 115 mm
Package height: 16 mm
Package weight: 18.5 g

Packaging content

Quantity per pack: 1 pc(s)

Other features

Attenuation (max): 0.35 dB/km

Logistics data

Master (outer) case width: 450 mm
Master (outer) case length: 450 mm
Master (outer) case height: 300 mm
Products per master (outer) case: 140 pc(s)
