StarTech.com HDMIPNLFM3 HDMI cable

StarTech.com 3ft (91cm) HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, 4K 30Hz UHD HDMI, 10.2 Gbps Bandwdith, 4K HDMI Female to HDMI Male, HDMI Panel Mount Connector Cable. Cable length: 0.9 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Female, Connector contacts plating: Gold, HDMI version: 1.4, 3D, Data transfer rate: 10.2 Gbit/s, Audio Return Channel (ARC), Product colour: Black

Allows an HDMI® connection to be mounted on a secure and easily accessible panel.

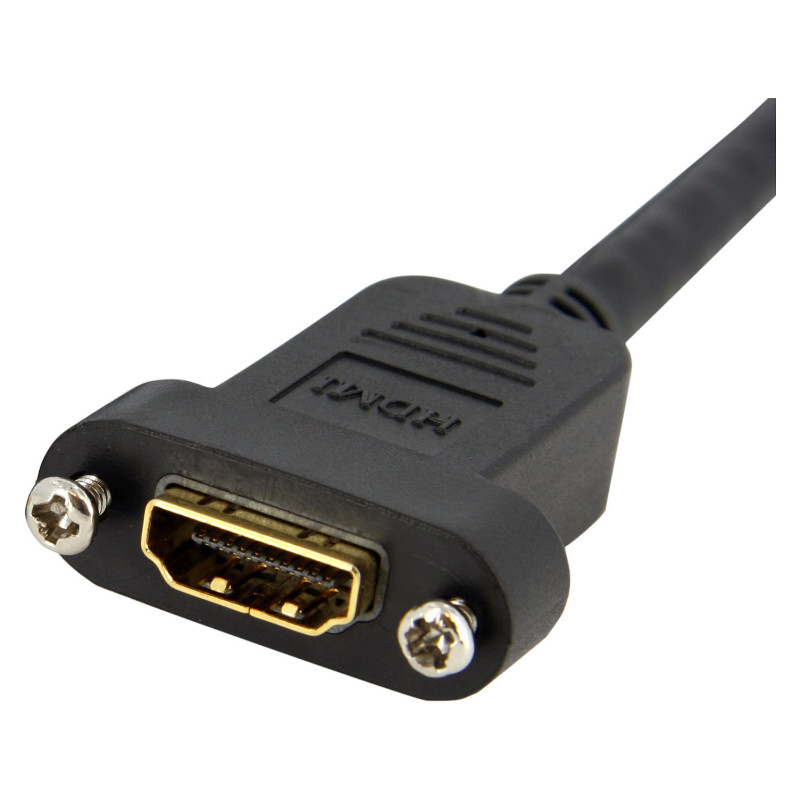

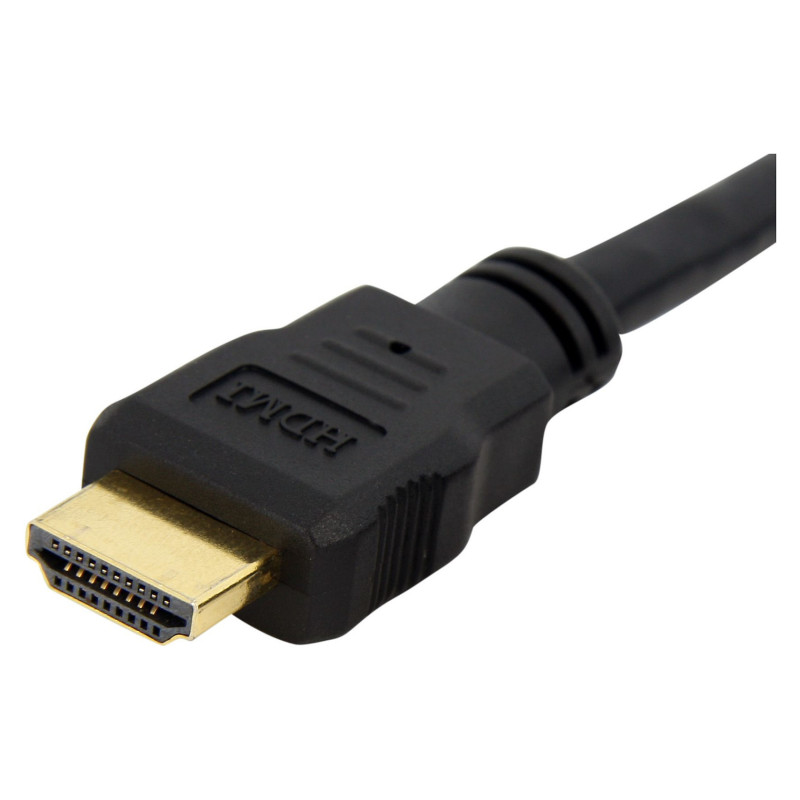

The HDMIPNLFM3 3ft High Speed HDMI® Cable for Panel Mount features an HDMI male connector on one end, and an HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate.

Backed by StarTech.com's Lifetime Warranty.

Features

Cable length: 0.9 m
Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Product colour: Black
HDMI version: 1.4
Feature: 3D
Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Dolby technologies: Dolby Digital Plus, Dolby TrueHD
Feature: Audio Return Channel (ARC)
Feature: HDCP
HDCP version: 1.4
Data transfer rate: 10.2 Gbit/s
Maximum refresh rate: 120 Hz
AWG wire size: 28
Connector contacts plating: Gold
Cable rating: CMG (CM)
Cable jacket material: Polyvinyl chloride (PVC)
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 5 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 0 - 85%

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Cable diameter: 6.5 mm
Weight: 79 g

Packaging data

Package width: 198 mm
Package depth: 183 mm
Package height: 19 mm
Package weight: 84 g
Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 384 mm
Master (outer) case length: 440 mm
Master (outer) case height: 302 mm
Products per master (outer) case: 80 pc(s)
