StarTech.com HD2AP-10M-HDMI-CABLE HDMI cable

StarTech.com 33ft (10m) Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, HDR10/HDCP 2.2/ARC, CMP In Wall HDMI Cord. Cable length: 10 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product colour: Black

Reliably connect high-bandwidth HDMI 2.0 devices through plenum spaces

Route this Active High Speed HDMI® 2.0 Cable through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio.

HDMI UHD Over Long Distances

The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.

Full-Featured HDMI 2.0

The Active HDMI UHD Cable supports full HDMI 2.0 specifications:

• Up to 18Gbps bandwidth for 4K 60Hz video and higher refresh rates at lower resolutions (e.g. 1080p/1440p 120Hz)
• High Dynamic Range (HDR10) with 10-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Audio Return Channel (ARC) for 7.1 and 32-channel audio
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• Dual Video Streams enable two independent video streams from a single source, allowing for picture-in-picture and other capabilities
• Variable Refresh Rate (VRR) synchronizes the refresh rate of the display with the output frame rate of the content, reducing screen tearing

Plenum-Rated Cabling

This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends.

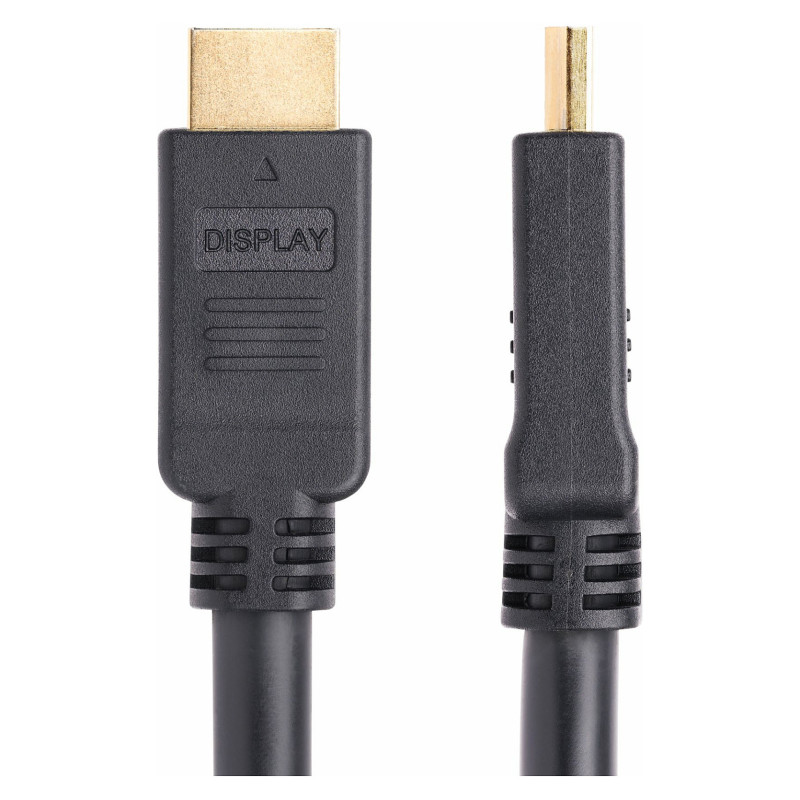

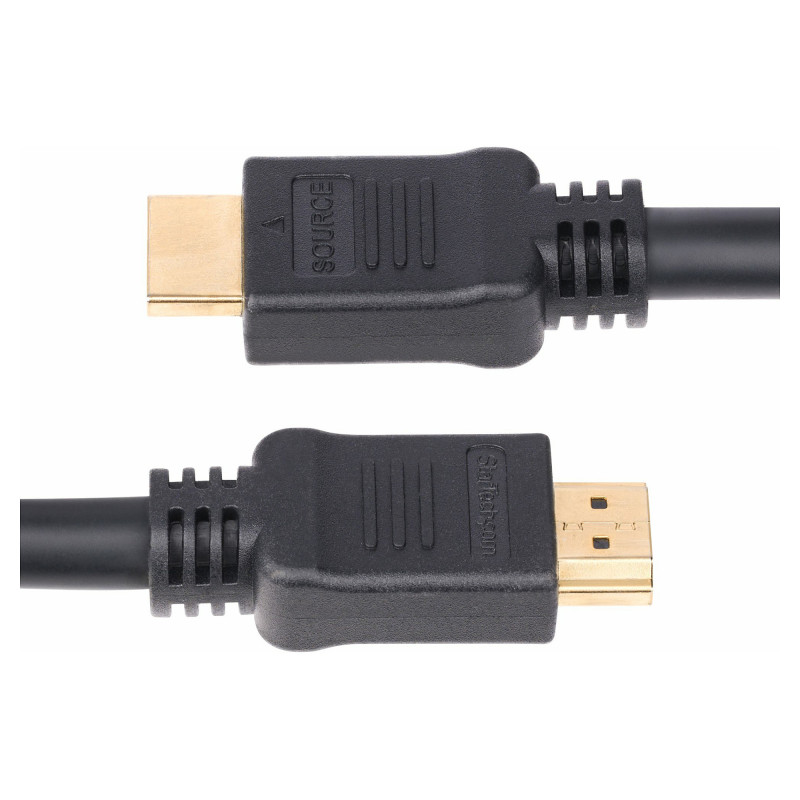

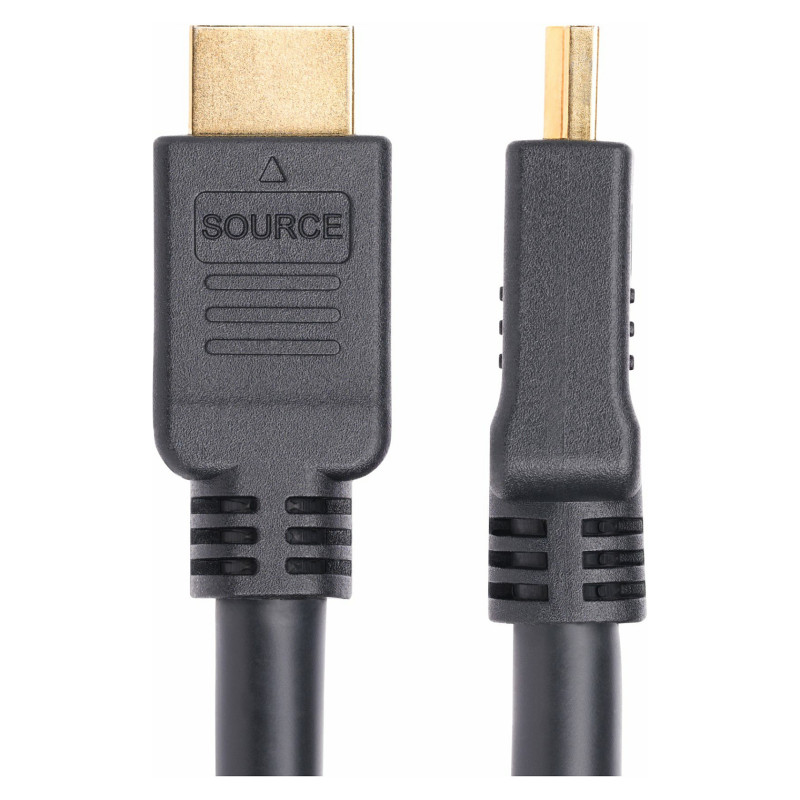

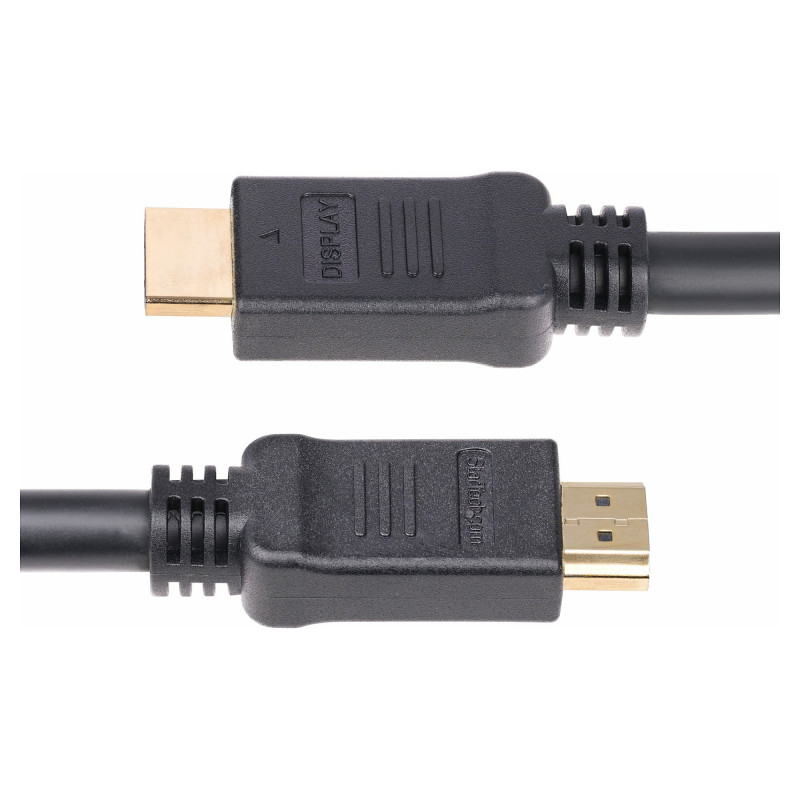

Note : This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Features

Cable length: 10 m
Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Product colour: Black
HDMI version: 2.0
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Supported video modes: 1080p, 1440p, 2560p
Feature: Audio Return Channel (ARC)
HDCP version: 2.2
Data transfer rate: 18 Gbit/s
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
Supported digital audio channels (uncompressed): 7.1, 32
Feature: Unidirectional
Maximum refresh rate: 120 Hz
AWG wire size: 24/28
Connector contacts plating: Gold
Cable material: Copper
Cable rating: CMP
Cable type: Round cable
Cable jacket material: Polyvinyl chloride (PVC)
Cable shielding: Aluminum mylar foil
Colour depth: 10 bit

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 0 - 95%

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Cable diameter: 9 mm

Packaging data

Package width: 210 mm
Package depth: 192 mm
Package height: 72 mm
Package weight: 1 kg
Quantity per pack: 1 pc(s)

Logistics data

Master (outer) case width: 405 mm
Master (outer) case length: 319 mm
Master (outer) case height: 310 mm
Products per master (outer) case: 12 pc(s)
