StarTech.com CDP2HD USB graphics adapter

StarTech.com USB-C to HDMI Adapter with 4K 30Hz - Black. USB version: 3.2 Gen 2 (3.1 Gen 2), USB connector type: USB Type-C, USB connector gender: Male. Product colour: Black. Width: 23 mm, Depth: 147 mm, Height: 9 mm. Package width: 197 mm, Package depth: 104 mm, Package height: 18 mm. Products per master (outer) case: 120 pc(s), Master (outer) case width: 516 mm, Master (outer) case length: 344 mm
USB Type-C™ to HDMI Converter | Thunderbolt™ 3 Compatible | DP Alt Mode
This USB-C to HDMI adapter lets you to output 4K video and audio from the USB Type-C port on your laptop to an HDMI display or projector. The adapter works with USB 3.1 or Thunderbolt 3 Type-C devices that pass a DP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

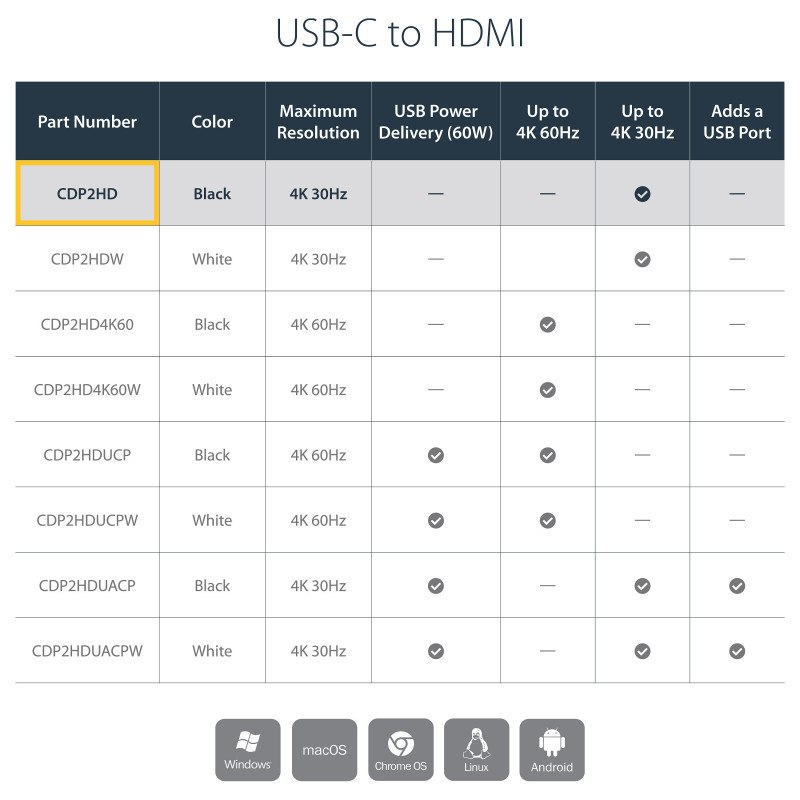

This video adapter is also available in white (CDP2HDW).
Enjoy High-Definition Resolution up to 4K at 30Hz
This adapter lets you harness the video capabilities from your computer's USB-C connection, to deliver the astonishing quality of UHD to a 4K 30Hz display.
You can achieve an output resolution of up to 3840 x 2160p at 30Hz, perfect for performing high-resolution tasks. Plus, the USB-C display adapter is backward compatible with 1080p monitors and displays, making it a great accessory for any workspace application.

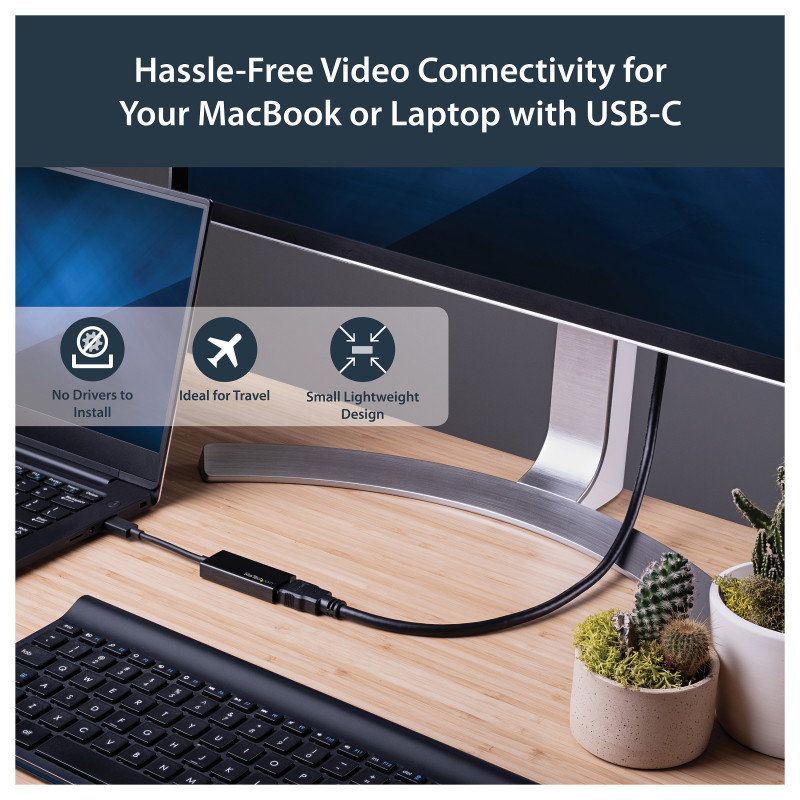

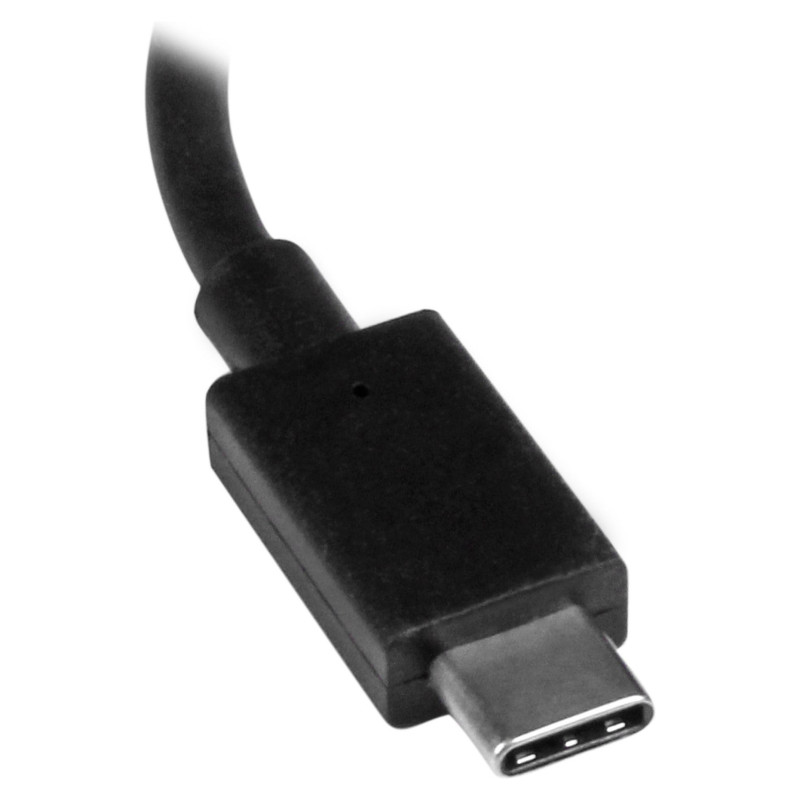

Hassle-Free Connection to Your USB Type-C Laptop
This HDMI converter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, so you can plug it to your device in any direction. Plus, it's Thunderbolt 3 compatible, providing a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

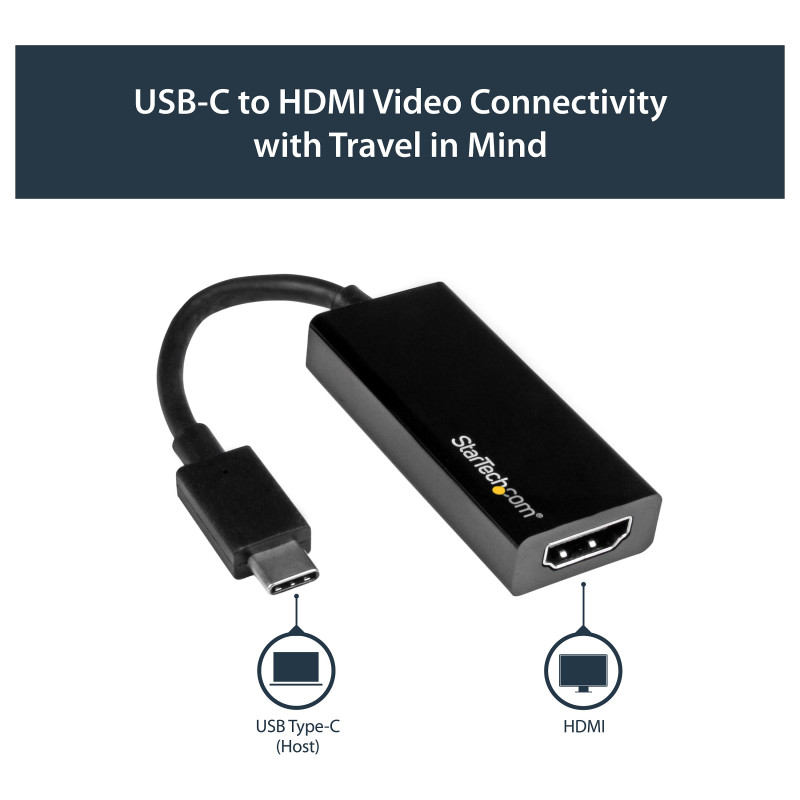

Lightweight Design Makes it the Perfect Travel Companion
This compact, lightweight USB-C video adapter is easy to carry in your laptop bag. It's ideal for BYOD (Bring Your Own Device) applications at the office and is compatible with any device that supports USB-C DP Alt Mode.
CDP2HD is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Performance

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
USB version: 3.2 Gen 2 (3.1 Gen 2)
DVI output: No
HDMI output: Yes
DisplayPort output: No
Number of displays supported: 1
HDMI version: 1.4
Maximum resolution: 3840 x 2160 pixels
Refresh rate at maximum resolution: 30 Hz
Supported graphics resolutions: 1024 x 768 (XGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1280 x 720 (HD 720), 2560 x 1600 (WQXGA), 3840 x 2160
Supported video modes: 1080p, 720p
Audio output channels: 7.1 channels
Chipset: Parade - PS171, STMicroelectronics - STM32F072CBU6

Design

Product colour: Black
Integrated USB cable: Yes

Weight dimensions

Width: 23 mm
Depth: 147 mm
Height: 9 mm
Weight: 22 g
USB cable length: 0.12 m

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 85%

Packaging data

Package width: 197 mm
Package depth: 104 mm
Package height: 18 mm
Package weight: 30 g

Technical details

Sustainability compliance: Yes
Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 120 pc(s)
Master (outer) case width: 516 mm
Master (outer) case length: 344 mm
Master (outer) case height: 227 mm
Harmonized System (HS) code: 84733020
