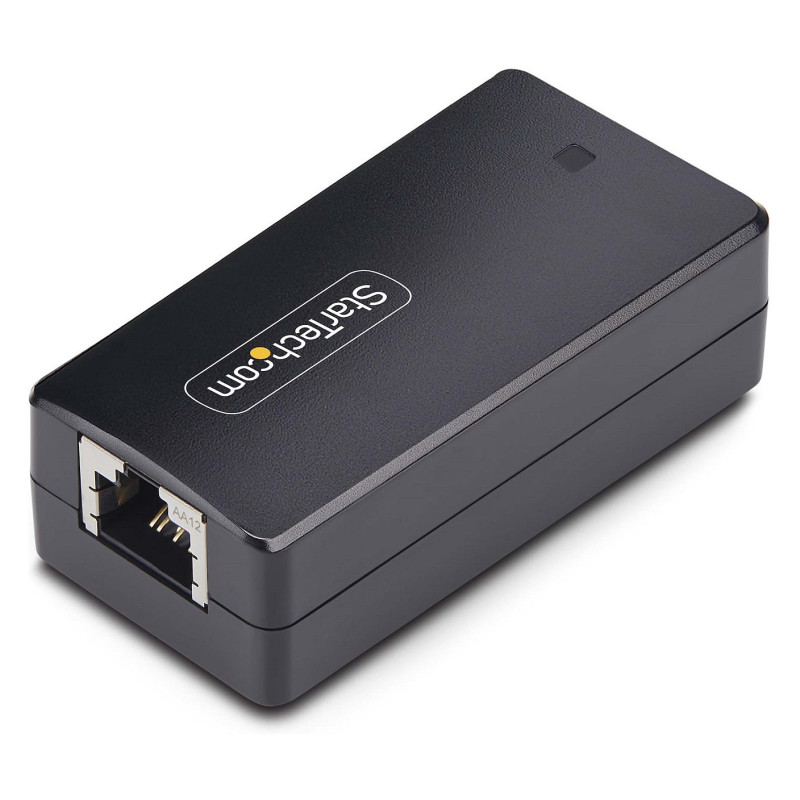

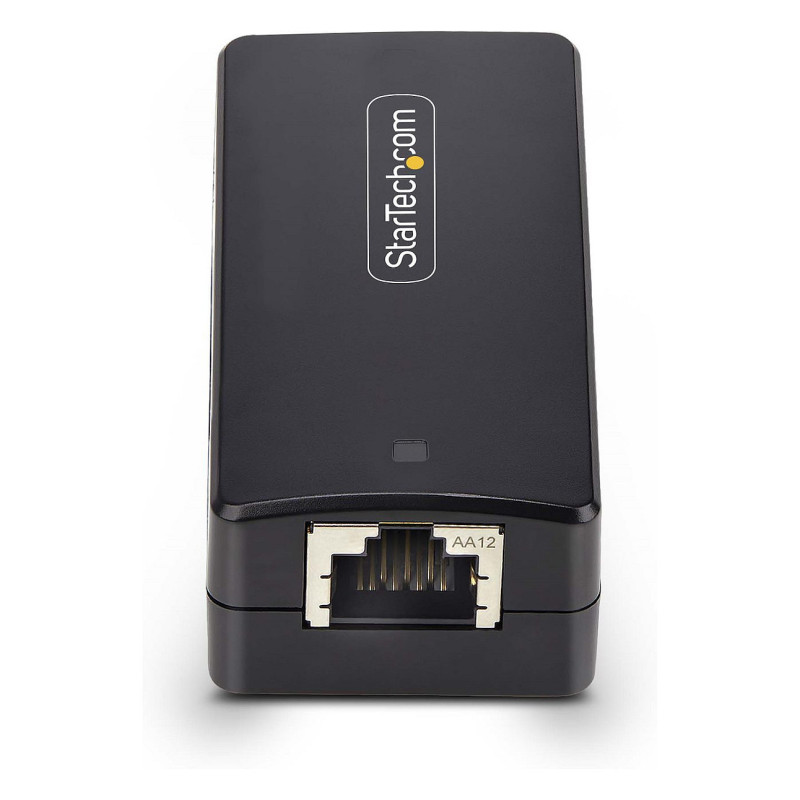

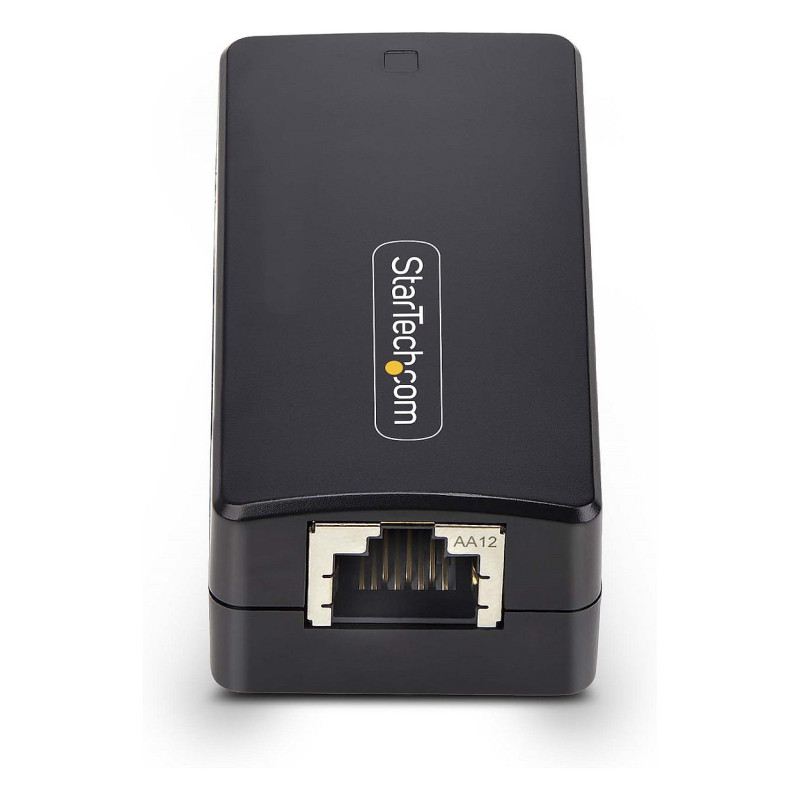

StarTech.com 1G-NETWORK-ISOLATOR ground loop isolator

StarTech.com 1-Port Gigabit Network Isolator, Compact In-line RJ45 Ethernet Coupler with 4kV Galvanic Isolation, IP40, DIN Rail Mountable, TAA Compliant. Electrostatic Discharge (ESD) protection (contact): 4 kV, Ethernet LAN data rates: 10,100,1000 Mbit/s, International Protection (IP) code: IP40. Product colour: Black, Housing material: Plastic. Products per master (outer) case: 100 pc(s), Master (outer) case length: 462 mm, Master (outer) case width: 532 mm. Width: 67 mm, Depth: 33 mm, Height: 24 mm. Package width: 446 mm, Package depth: 133 mm, Package height: 33 mm

Protect network devices from harmful power surges with this Network Isolator

This TAA-Compliant 1G Network Isolator with 4kV isolation is bus-powered and provides a separation of all conductive connections between devices connected via an Ethernet cable. The isolator helps prevent ground loops in audio and video equipment.

Ready to Use

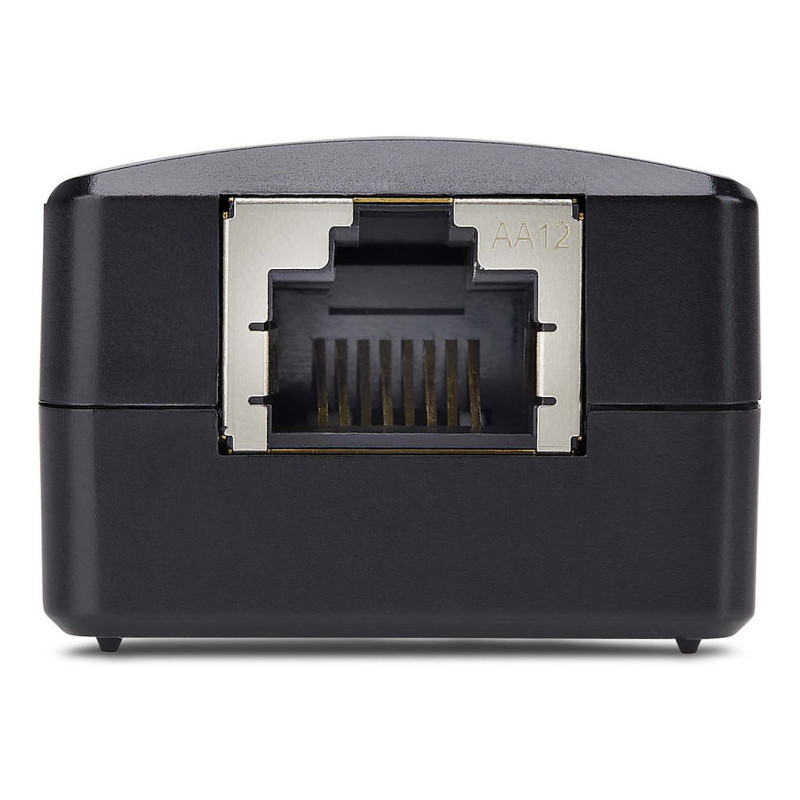

This isolator features simple plug-and-play setup with no software, drivers, power supply, or grounding wire required. The isolator acts as a coupler, with two RJ45 ports for two Cat5 or Cat6 cables to connect compatible equipment to a computer or data network. It is compact, universally compatible and OS independent.

Safe, Reliable, & Efficient

This isolator provides full transparency on the network it is part of. With no IP, it does not route or alter traffic or affect equipment or network performance. Safeguard equipment and operators by blocking stray electrical currents, surges, and ground faults in your network. This device is ETL Safety Listed (IEC 62368-1) and CE: EN55032/EN55035 Certified.

Versatile Mounting Options & Applications

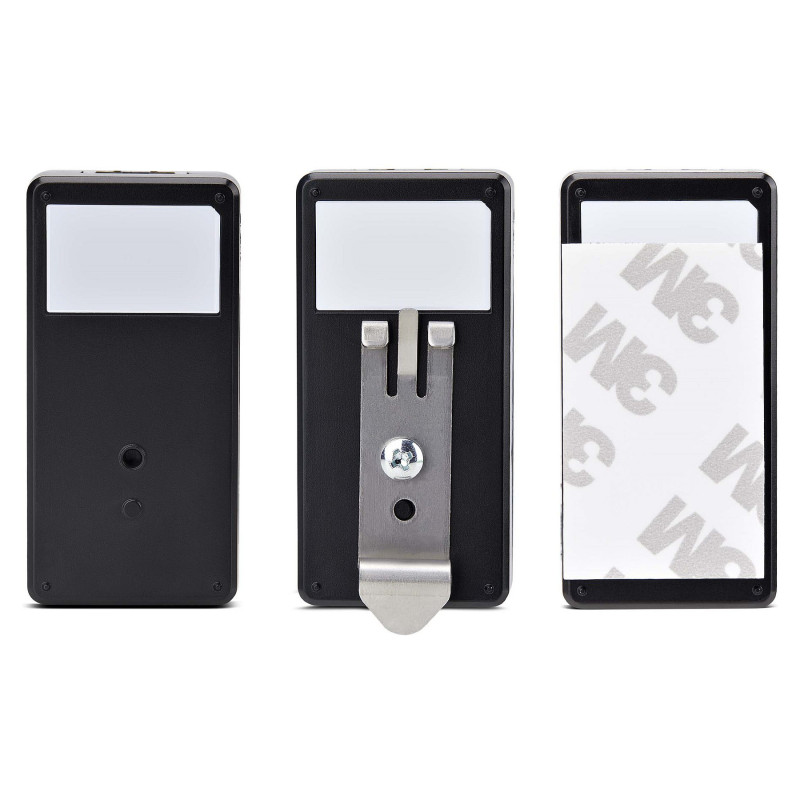

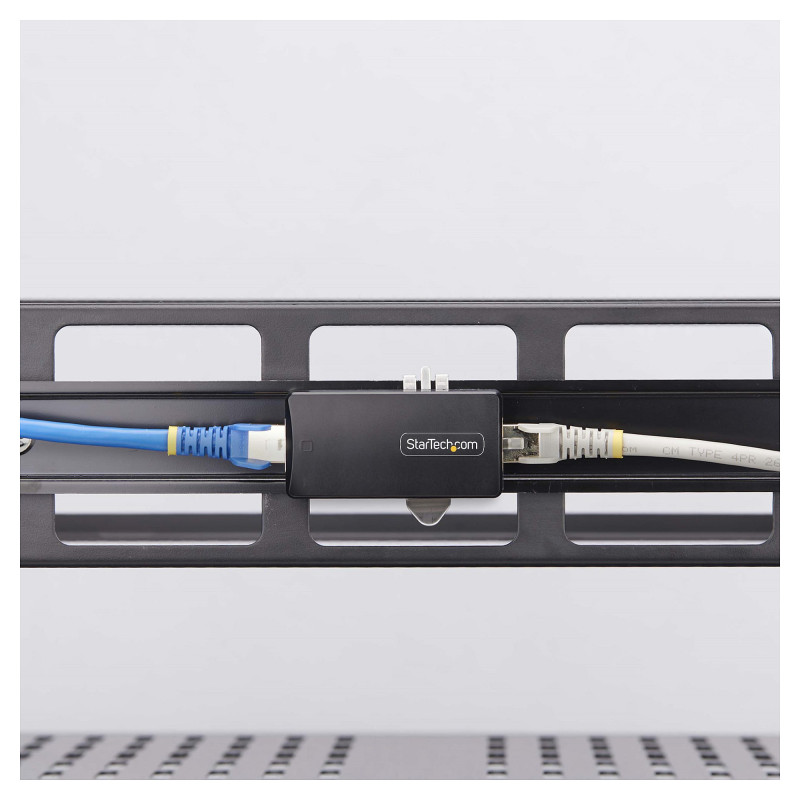

The compact and durable IP40 rated plastic housing supports multiple installation methods, including DIN rail mounting (kit included) or adhesive mounting for versatile placement on various surfaces. Designed for IT professionals to protect network infrastructure in labs and manufacturing facilities. This device is ideal for ensuring safe operation and reducing risks during network maintenance or upgrades.

Performance

Electrostatic Discharge (ESD) protection (contact): 4 kV
Ethernet LAN data rates: 10,100,1000 Mbit/s
International Protection (IP) code: IP40

Ports & interfaces

RJ-45 ports quantity: 1

Design

Product colour: Black
Housing material: Plastic

Logistics data

Products per master (outer) case: 100 pc(s)
Master (outer) case length: 462 mm
Master (outer) case width: 532 mm
Master (outer) case height: 196 mm

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T): -10 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 67 mm
Depth: 33 mm
Height: 24 mm
Weight: 31 g

Packaging data

Package width: 446 mm
Package depth: 133 mm
Package height: 33 mm
Package weight: 40 g

Packaging content

Feature: Manual

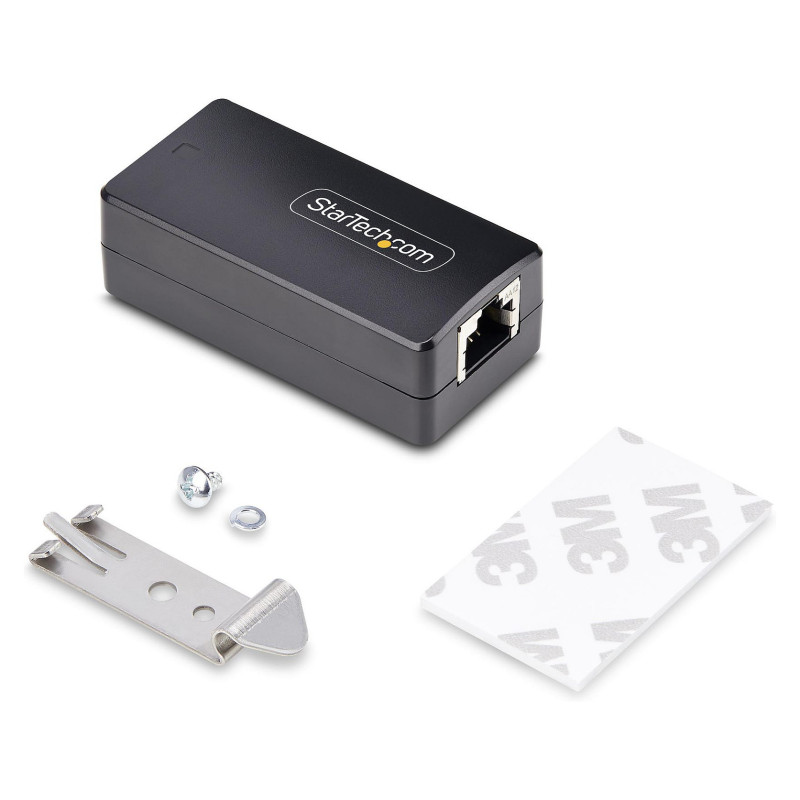

Feature: DIN rail kit included
Feature: Adhesive strip included
Quantity: 1
