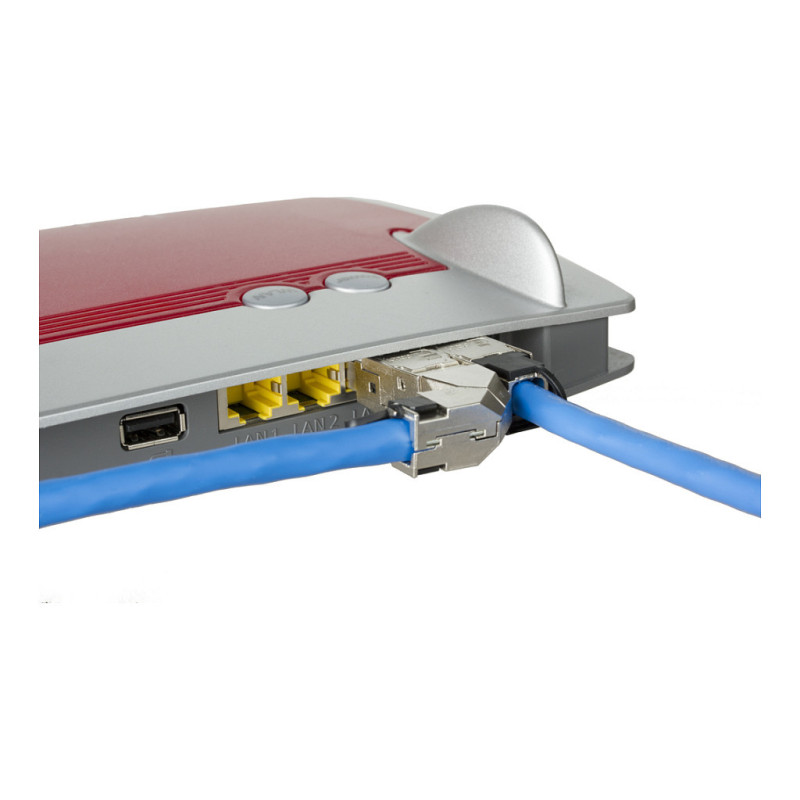

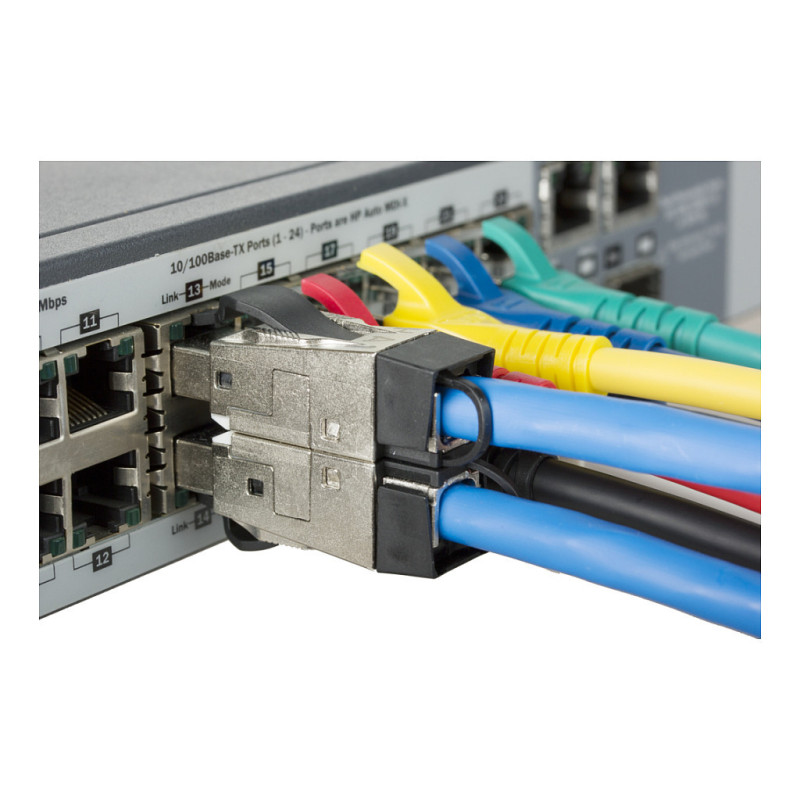

METZ CONNECT 25G RJ45 field plug pro

METZ CONNECT 25G RJ45 field plug pro. Connector(s): RJ45, Product colour: Red, Connector gender: Male. Doesn't contain: Halogen. Compliance certificates: REACH, RoHS. Width: 13.8 mm, Depth: 49.8 mm, Height: 16.5 mm. Quantity per pack: 10 pc(s), Package type: Box

Features

Connector(s): RJ45
Connector gender: Male
Connector form factor: Straight
Product colour: Red
Material: Plastic, Zinc
Feature: Cable protector
Connector contacts plating: Nickel/Gold
International Protection (IP) code: IP20
Dielectric strength: 1000 V
Contact resistance: 20 mΩ
Lifetime (cycles): 750
Voltage: 50 V
Current: 1 A
Shell plating: Nickel
Insertion force: 20 N
Withdrawal force: 20 N

Operational conditions

Operating temperature (T-T): -40 - 85 °C
Storage temperature (T-T): -40 - 85 °C

Sustainability

Doesn't contain: Halogen

Certificates

Compliance certificates: REACH, RoHS

Weight & dimensions

Width: 13.8 mm
Depth: 49.8 mm
Height: 16.5 mm

Packaging data

Quantity per pack: 10 pc(s)
Package type: Box

Technical details

Insulation resistance: 500 MΩ
Cable diameter: 1.05 cm

Logistics data

Country of origin: Germany
