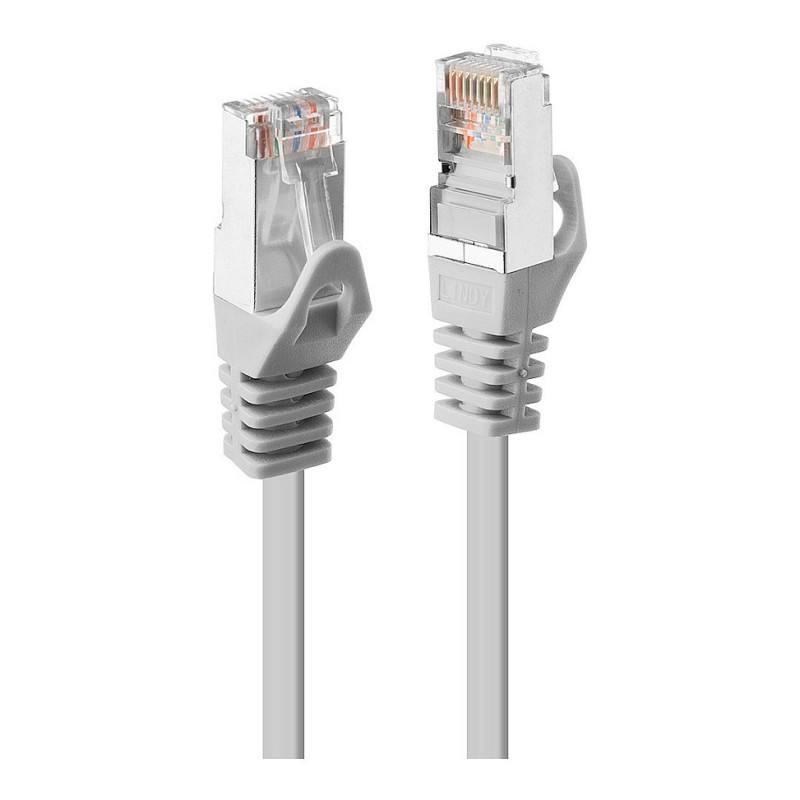

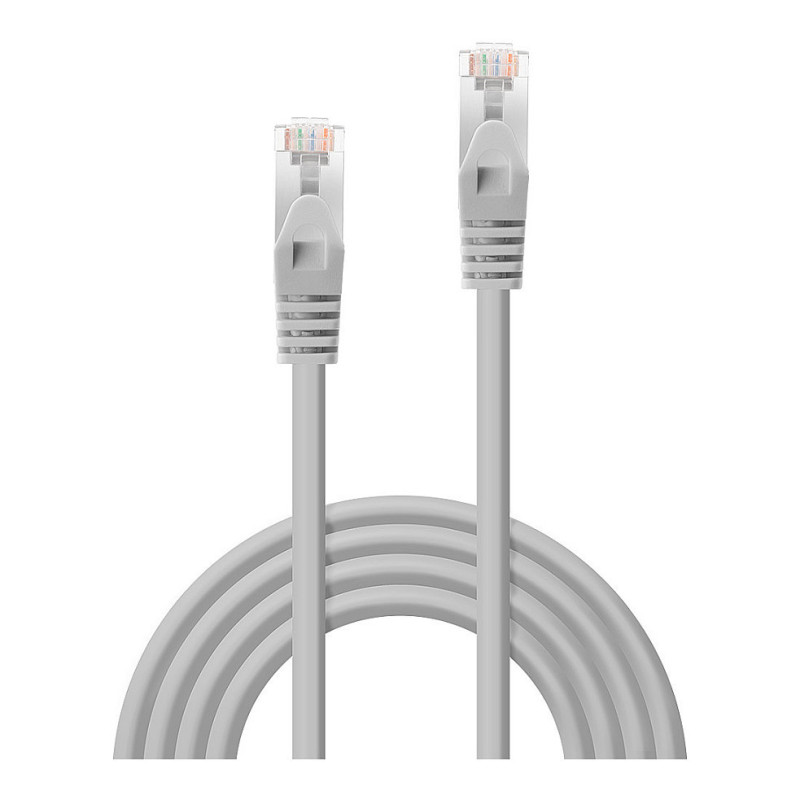

Lindy 48342 networking cable

Lindy 48342. Cable length: 1 m, Cable standard: Cat5e, Cable shielding: F/UTP (FTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Product colour: Grey

Cat.5e F/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.5e cable, designed for operating frequencies up to 100MHz. With its overall shielding (F/UTP) in the form of a foil, this type of cable has been used reliably for decades in many installations in the prosumer sector as well as in the professional segment, since it can easily be used for Gigabit Ethernet. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.

Features

Product colour: Grey
Cable length: 1 m
Cable standard: Cat5e
Cable shielding: F/UTP (FTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Nickel/Gold
Feature: Connector shielding
Connector shield material: Aluminium
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Cable class: D
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 26
Frequency: 100 MHz
Bend radius (min): 6 cm

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C

Certificates

Certification: RoHS, REACH, UL, California Proposition 65

Weight & dimensions

Outer diameter: 5 mm
Connector 1 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm

Packaging data

Package type: Polybag

Logistics data

Harmonized System (HS) code: 84733080
