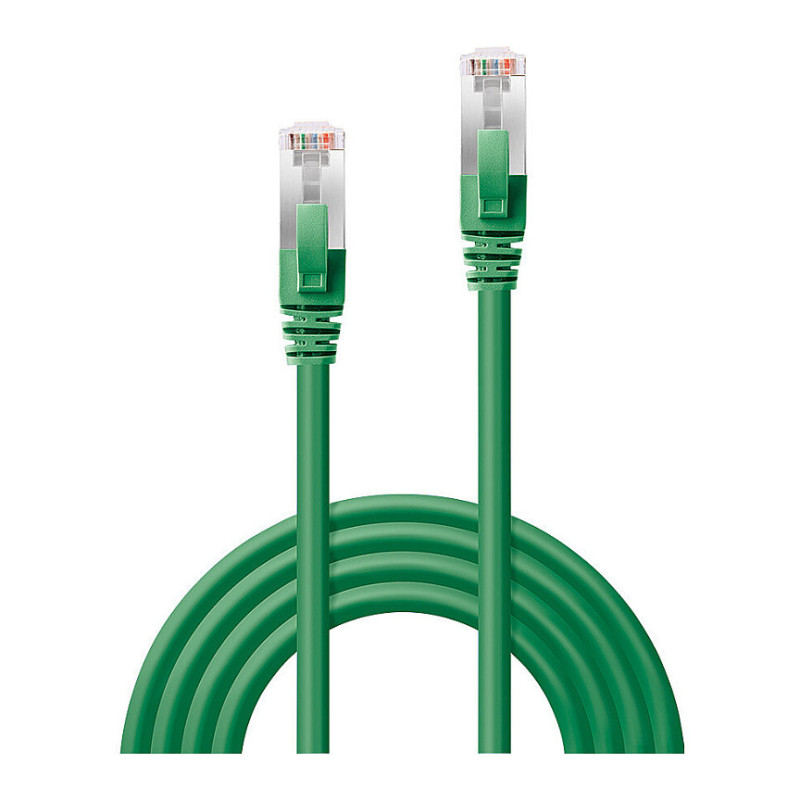

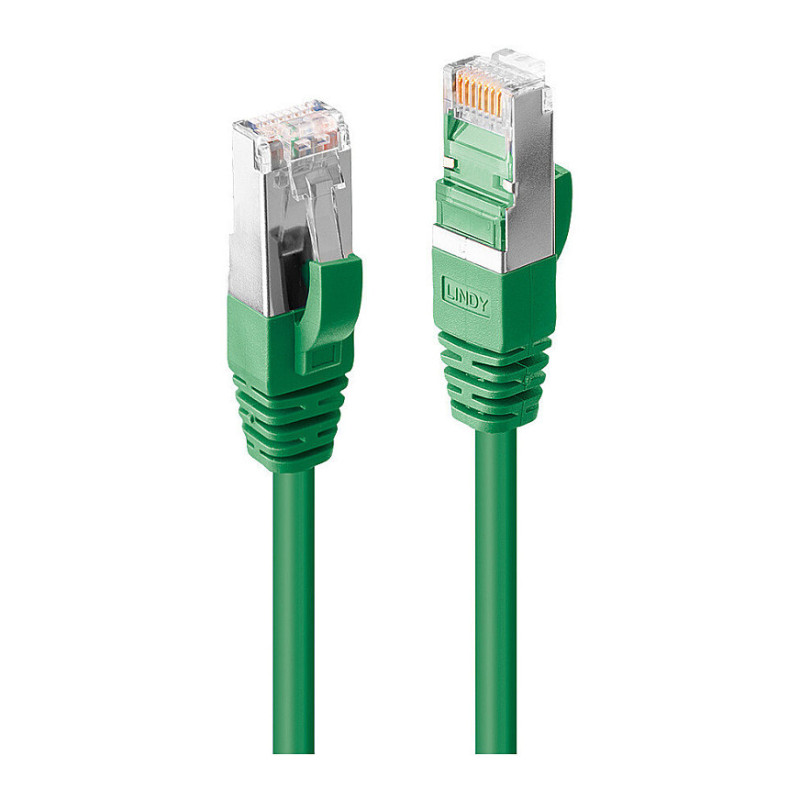

Lindy 47675 networking cable

Lindy 47675. Cable length: 0.3 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Product colour: Green

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White, Yellow, Green

Features

Product colour: Green
Cable length: 0.3 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Nickel/Gold
Feature: Connector shielding
Connector shield material: Aluminium
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor material: Copper
Connector housing material: Polycarbonate (PC)
Cabling technology: 10GBase-T
AWG wire size: 27
Frequency: 500 MHz
Bend radius (min): 7.2 cm

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C

Sustainability

Doesn't contain: Halogen

Certificates

Compliance certificates: REACH, RoHS
Certification: RoHS, REACH

Weight & dimensions

Width: 11.6 mm
Depth: 21.5 mm
Height: 8.3 mm
Outer diameter: 6 mm
Connector 1 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm

Packaging data

Package type: Polybag

Technical details

Feature: Sustainability compliance
