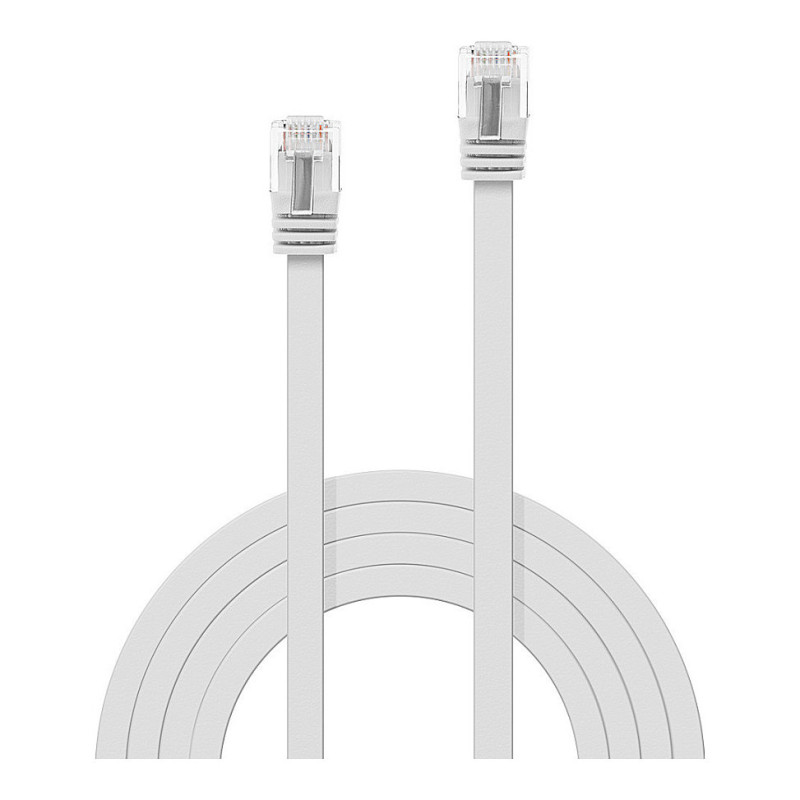

Lindy 47501 networking cable

Lindy 47501. Cable length: 1 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 100 Mbit/s, Product colour: White
Cat.6 U/UTP flat network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

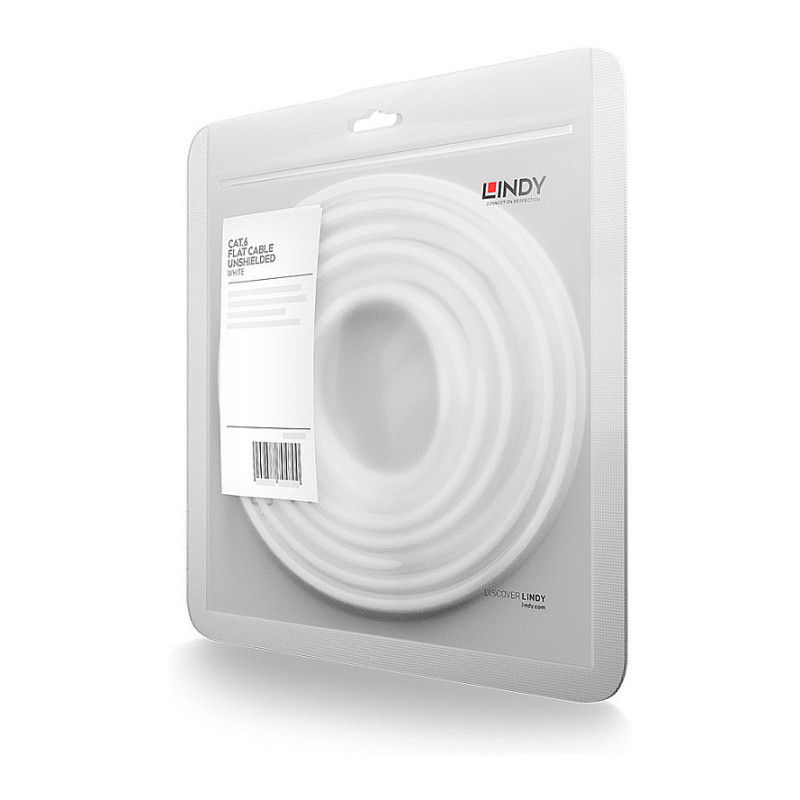

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameter (NExT, FExT, etc.) despite the lack of shielding. Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

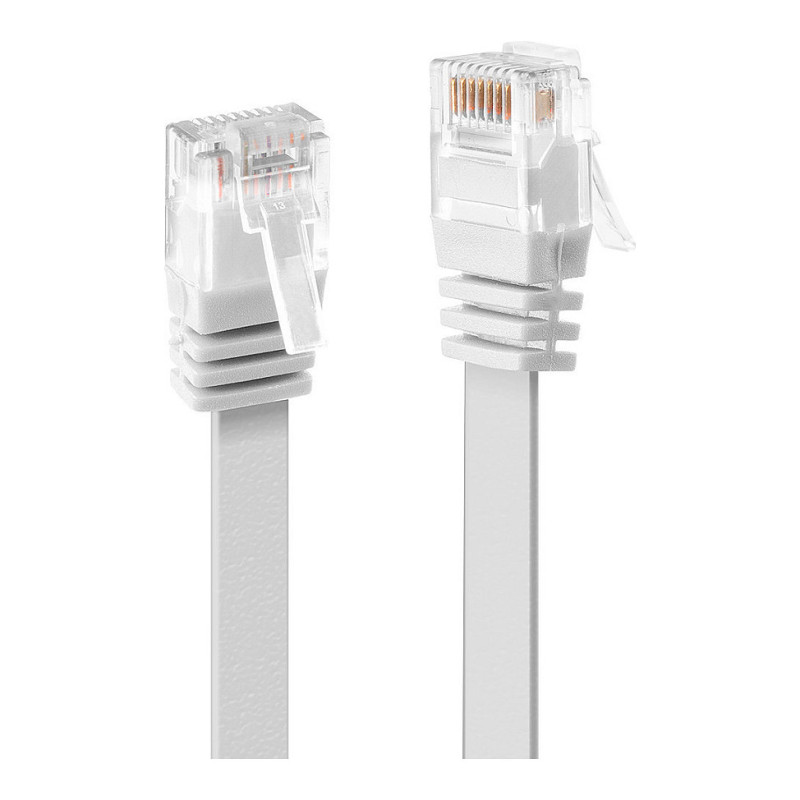

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, Grey, White, Red.

Features

Product colour: White
Cable length: 1 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Cabling technology: 10/100Base-T(X)
AWG wire size: 32
Data transfer rate: 100 Mbit/s
Frequency: 250 MHz
Bend radius (min): 6 cm

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -10 - 40 °C

Certificates

Certification: RoHS, REACH, UL, California Proposition 65

Weight dimensions

Connector 1 dimensions (WxDxH): 11.6 x 22.7 x 6.5 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.7 x 6.5 mm

Packaging data

Package type: Polybag

Logistics data

Harmonized System (HS) code: 84733080
