Lindy 47482 networking cable

Lindy 47482. Cable length: 2 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Product colour: Black

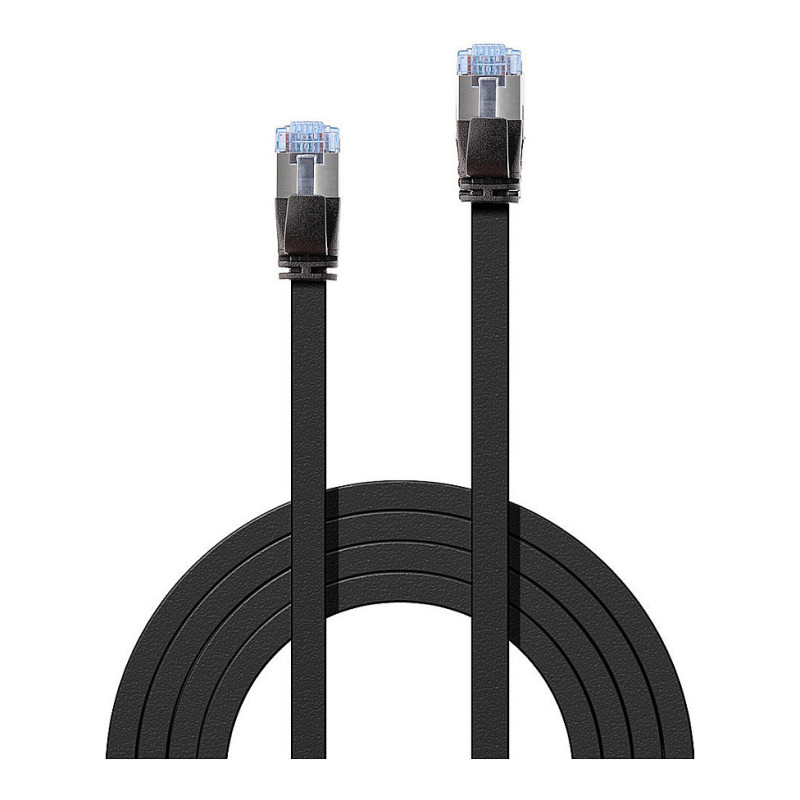

Cat.6A U/FTP flat network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.

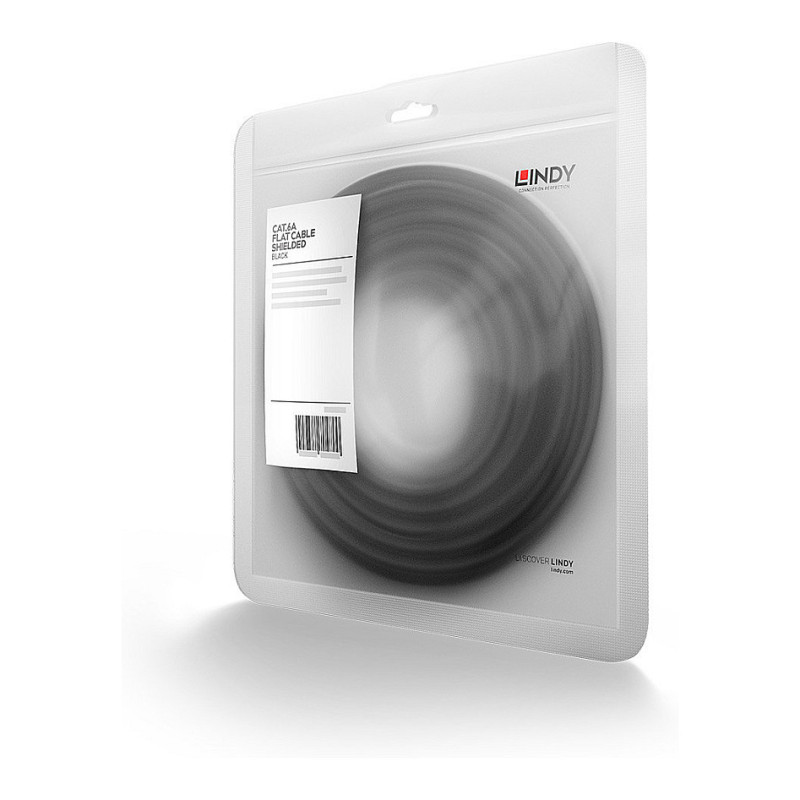

Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

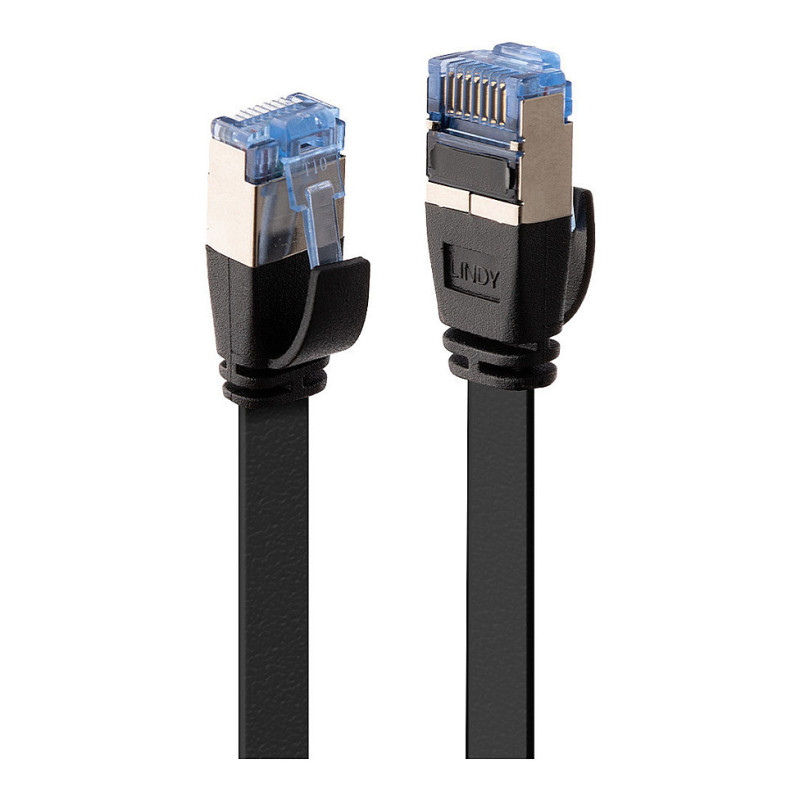

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, White.

Features

Product colour: Black
Cable length: 2 m
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Nickel/Gold
Feature: Connector shielding
Connector shield material: Aluminium
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 32
Frequency: 500 MHz
Bend radius (min): 6 cm

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -10 - 40 °C

Certificates

Certification: RoHS, REACH, California Proposition 65

Weight & dimensions

Connector 1 dimensions (WxDxH): 11 x 28 x 6 mm
Connector 2 dimensions (WxDxH): 11 x 28 x 6 mm

Packaging data

Package type: Polybag

Logistics data

Harmonized System (HS) code: 84733080
